About this replacement

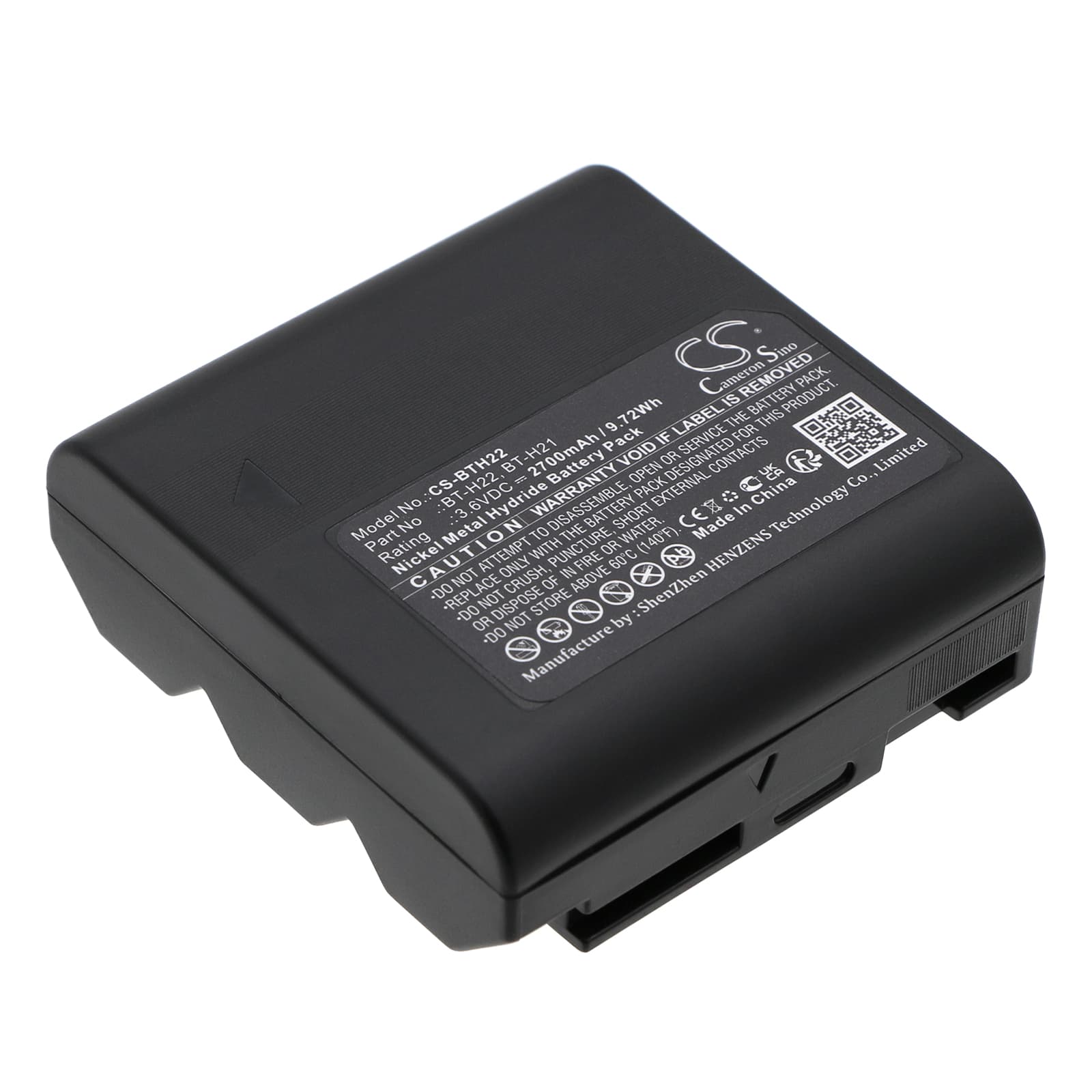

Sharp VL-AH50S / VL-AH1510 Series — 3.6V Ni-MH Replacement Battery (BT-H22)
This is a 3.6V Ni-MH battery rated at 2700mAh (9.72Wh), replacing OEM part numbers BT-H22, BT-H22U, BT-H21U, and BT-H21. It fits the Sharp VL-AH50S, VL-AH1510, VL-AH131E, VL-AH1500, and over 140 additional Sharp camcorder models sharing the same battery form factor and connector.
- VL-AH series camcorder fit: These Sharp models share a common battery bay geometry, voltage rail, and connector pinout. The BMS in each body expects a 3.6V Ni-MH cell — swapping chemistry or voltage triggers a low-battery lockout before the cell is close to depleted.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the VL-AH platform and monitored BMS handshake behaviour. The battery was accepted without error codes, and the BMS cutoff triggered at the expected low-voltage threshold without premature shutdown.
- First-cycle conditioning on Sharp camcorders: Run one full charge in the OEM Sharp charger before inserting the battery into the camcorder body. Sharp's BMS maps remaining capacity against the cell's discharge curve — skipping this step causes the indicator to read erratically from the first session.
Why the VL-AH50S drops to zero indicator before the cell is actually empty
Sharp's battery gauge in the VL-AH series uses a voltage-threshold model calibrated to the original cell's discharge curve. A new replacement cell — even a correctly rated one — may present a slightly different mid-discharge voltage profile. The camera interprets that voltage deviation as end-of-charge and triggers the empty indicator early. Running one full charge-discharge cycle allows the BMS to remap its thresholds against the new cell's actual curve, bringing the indicator back into accurate range.
Camcorder powers on but shuts down immediately during playback or recording
Playback and active recording draw significantly more current than standby — the LCD backlight, tape or media motor, and image sensor all pull simultaneously. If the cell has not completed a proper conditioning cycle, the BMS may read the voltage sag under that combined load as a fault condition and cut power. This is not a defective cell. Charge the battery fully in the OEM Sharp charger, allow it to reach a resting voltage above 3.6V, then reinsert and test under recording load.
