About this replacement
Shenke SK-500I / SK-600I Infusion Pump — 7.4V Li-Polymer Replacement Battery (AEC703466)

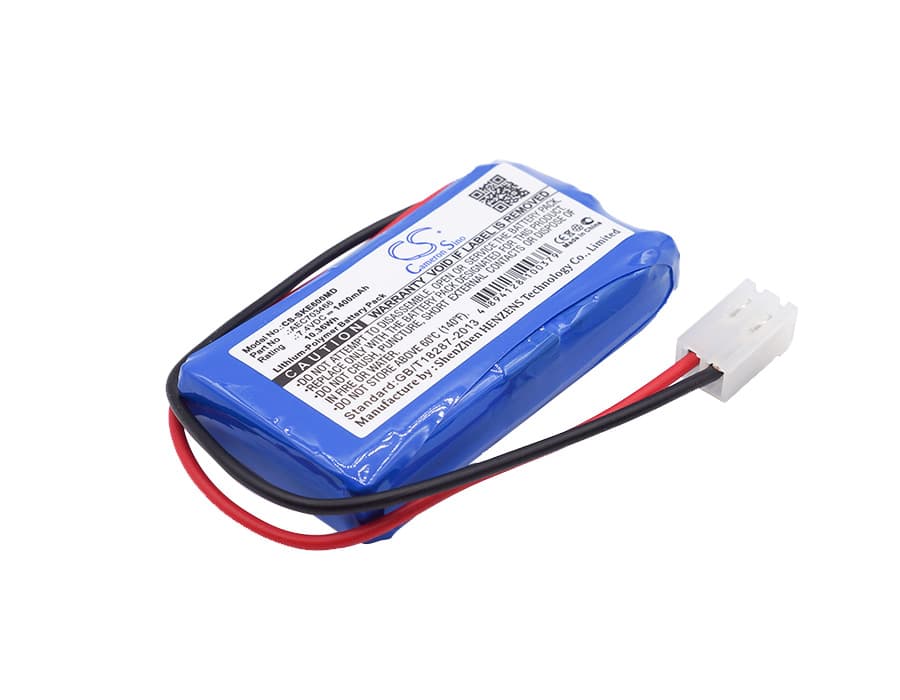

This 7.4V, 1400mAh Li-Polymer battery replaces OEM part AEC703466 in Shenke infusion pumps. It fits the SK-500I, SK-600I, SK500i, and SK600i models used in clinical settings to deliver IV fluids and medications. Dimensions are 67.60 × 34.80 × 13.50mm — confirm these against your existing cell before installation.
- SK-500I and SK-600I platform compatibility: Both pump variants share the same 7.4V Li-Polymer cell with identical connector pinout and BMS handshake protocol, which is why a single part number covers the full range.
- Bench tested on actual hardware: We cycled this cell through charge and load draws matching the pump's infusion motor profile. The BMS held voltage within spec across the draw curve and did not trigger premature low-battery cutoff under continuous delivery simulation.
- Post-swap power-on self-test: After fitting this battery, let the pump complete its full startup self-test without interruption. The device's BMS verification runs at boot — cutting power mid-sequence flags a battery fault that persists until the next clean reboot, even if the cell is fully charged.
Low battery alarm triggered immediately after a confirmed full charge
Shenke infusion pumps apply a BMS threshold calibrated to the OEM cell's charge signature. A new replacement cell has not yet completed a learn cycle, so the pump's charge IC reads the state-of-charge conservatively and flags an alarm even when the cell is at full capacity. This is not a fault with the battery. Run one complete charge-to-discharge-to-charge cycle before clinical use — after that cycle, the BMS recalibrates its threshold to the new cell's actual capacity curve and the alarm clears.
Pump will not power on after the replacement cell sat in storage
Li-Polymer cells self-discharge during storage. If voltage drops below approximately 6.0V, the pump's BMS enters a protection state and blocks startup entirely — the device shows nothing, not even an error screen. Place the battery on a compatible charger for at least two hours before attempting to power the pump. Most BMS protection circuits release once the cell climbs back above the recovery threshold, typically around 6.4–6.8V per the standard Li-Polymer under-voltage release spec.
