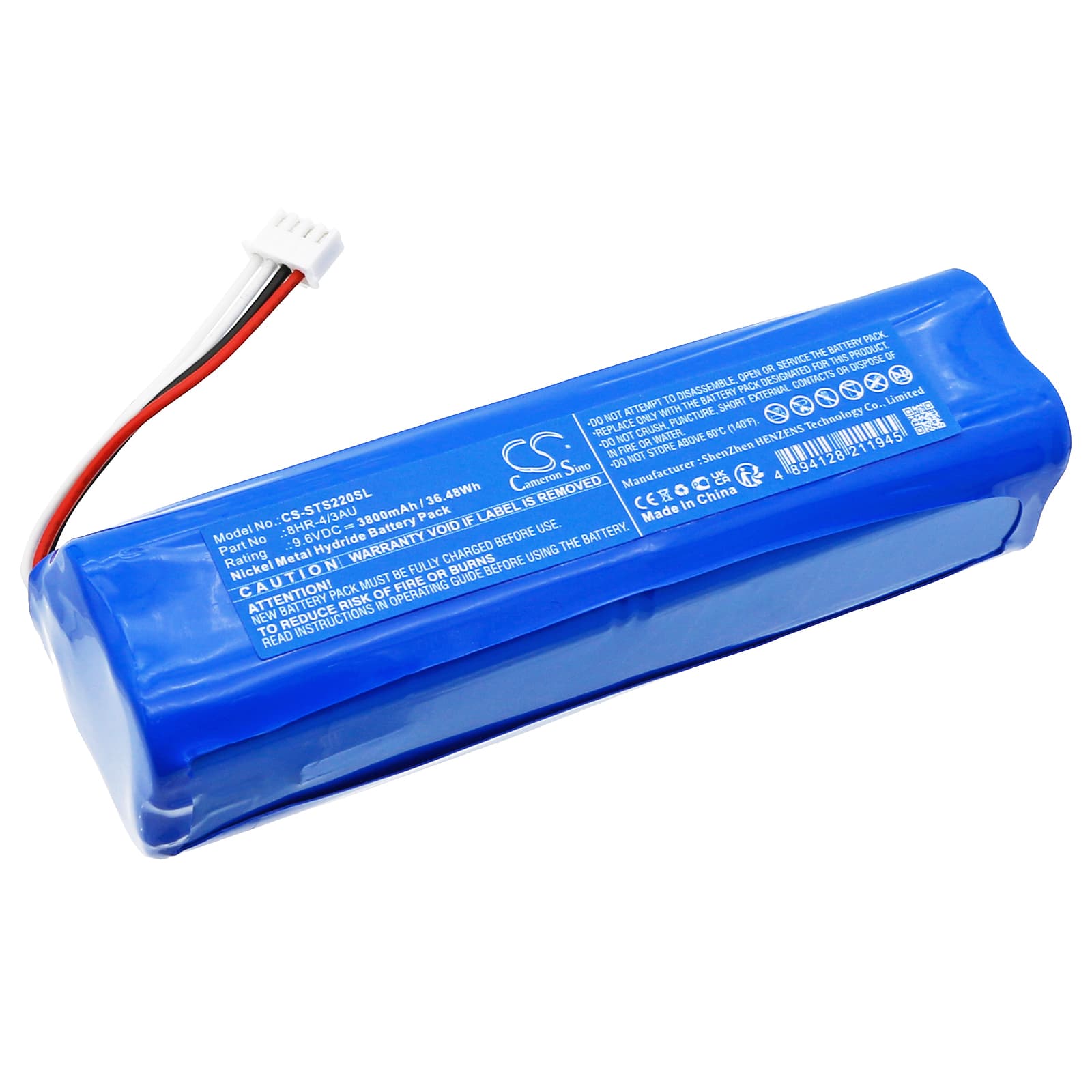

ShinewayTech S20A Plus — 9.6V Ni-MH Replacement Battery (8HR-4/3AU)
This is a 9.6V 3800mAh Ni-MH replacement battery for the ShinewayTech S20A Plus surveying instrument. It replaces the original 8HR-4/3AU pack used in field survey and geological testing work. Voltage, connector, and cell count match the original specification.
- S20A Plus compatibility: The S20A Plus runs a 9.6V rail from eight Ni-MH cells in series. This pack uses the same 8-cell configuration with the correct connector and BMS handshake the instrument expects at power-on. Swapping to a different voltage or chemistry causes the instrument to reject the pack entirely.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the bench. The BMS responded normally to charge termination — delta-V cutoff triggered correctly at full charge, and the pack held voltage under the sustained current draw typical of sensor initialisation and active measurement logging.
- First-use calibration cycle: After fitting this pack, run a full calibration cycle through the S20A Plus instrument menu before heading into the field. The instrument maps battery state during calibration. Skip this step and the battery indicator will trigger premature low-battery warnings on the first measurement session, even with a full charge.
BMS lockout after the S20A Plus sat unused in a carry case for months
Ni-MH cells self-discharge over storage. If a pack sits long enough, cell voltage drops below the BMS recovery threshold — typically around 0.9V per cell. At that point, the BMS enters a protection state and blocks charge input entirely. The instrument will not power on and the charger shows no activity. The fix is a slow trickle charge at low current to bring cells back above the BMS recovery floor before attempting a standard charge cycle.
S20A Plus shuts down during active logging even though the charge indicator was high
This happens when sustained sensor load pulls the pack voltage below the instrument's cutoff threshold, even if the indicator read healthy at rest. Ni-MH cells show higher resting voltage than load voltage — the gap widens as cells age or after a partial discharge cycle. If the shutdown repeats, check resting voltage with a multimeter: a healthy 9.6V Ni-MH pack should sit above 9.2V at rest. If it reads below that, the cells are not recovering between measurements and the pack needs replacement.
