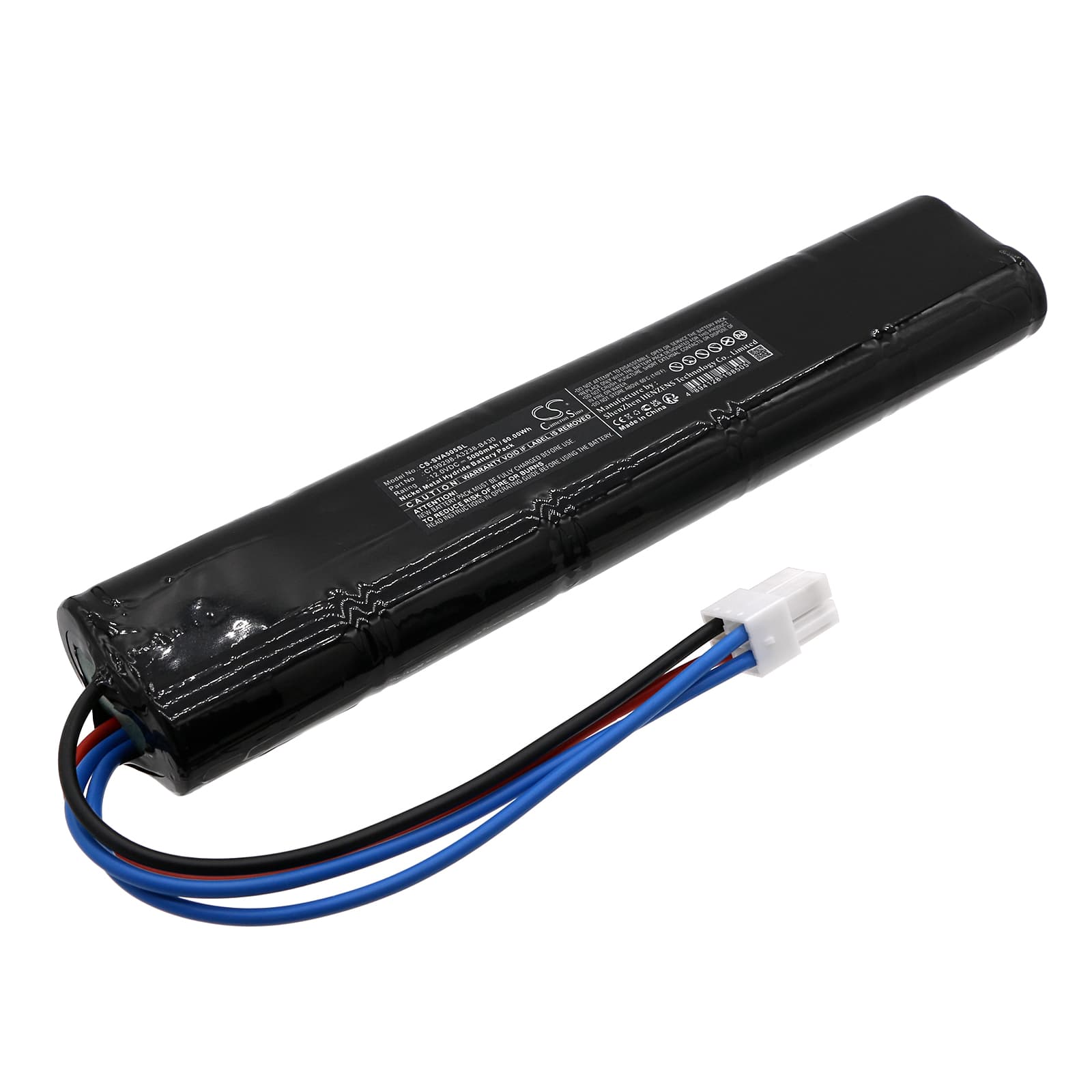

Siemens VAS5051A Series — 12V Ni-MH Replacement Battery (A5E00262564)
This is a 12V 5000mAh Ni-MH battery for the Siemens VAS5051, VAS5051A, VAS5051B, and VAS5051B/14 portable vehicle diagnostic scanners. It replaces OEM part A5E00262564 and restores full handheld operation for fault code reading, system diagnostics, and live vehicle data access. Capacity is sourced from the product data at 5000mAh (60Wh) — do not confuse this with lower-capacity aftermarket packs sold for the same platform.
- VAS5051 platform compatibility: The VAS5051, 5051A, 5051B, and 5051B/14 all share the same battery bay dimensions, 12V supply rail, and connector pinout. The BMS handshake on this platform uses a fixed cell-count signal — swapping to a pack with different cell count or internal resistance outside spec will trigger a charge fault on the dock.
- Bench tested on actual hardware: We cycled this pack through the VAS5051 charging dock and confirmed the BMS accepted the charge cycle without throwing a fault code. Cell balance across the Ni-MH array held within 20mV at full charge termination.
- RAM data before battery removal: Export all saved vehicle profiles and session logs before pulling the battery. The VAS5051 platform stores vehicle data in RAM backed by the main battery — once voltage drops below the retention threshold, that data is gone and cannot be recovered from the unit itself.
Why the VAS5051 freezes or reboots mid-diagnostic session
As Ni-MH cells age, internal resistance climbs. During a live diagnostic session, the scanner draws additional current for the display backlight, processor load, and the vehicle communication interface simultaneously. That combined draw causes a brief voltage sag across the degraded pack. If the sag drops the supply rail below the processor's minimum operating voltage — typically around 10.5V on this platform — the unit resets or freezes mid-session. A fresh pack with healthy internal resistance eliminates the sag and stabilises the rail under load.
Scanner won't boot after battery swap — blank screen on power button press
Ni-MH packs that have sat in storage self-discharge over time and can arrive with cell voltage too low to cross the VAS5051's boot threshold. The unit draws no current on the power button press and the screen stays dark — this is not a fault with the scanner. Seat the battery in the charging dock and leave it on charge for a minimum of 4 hours before attempting to power on. Once the pack reaches approximately 13.2V resting voltage, the scanner will boot normally.
