About this replacement

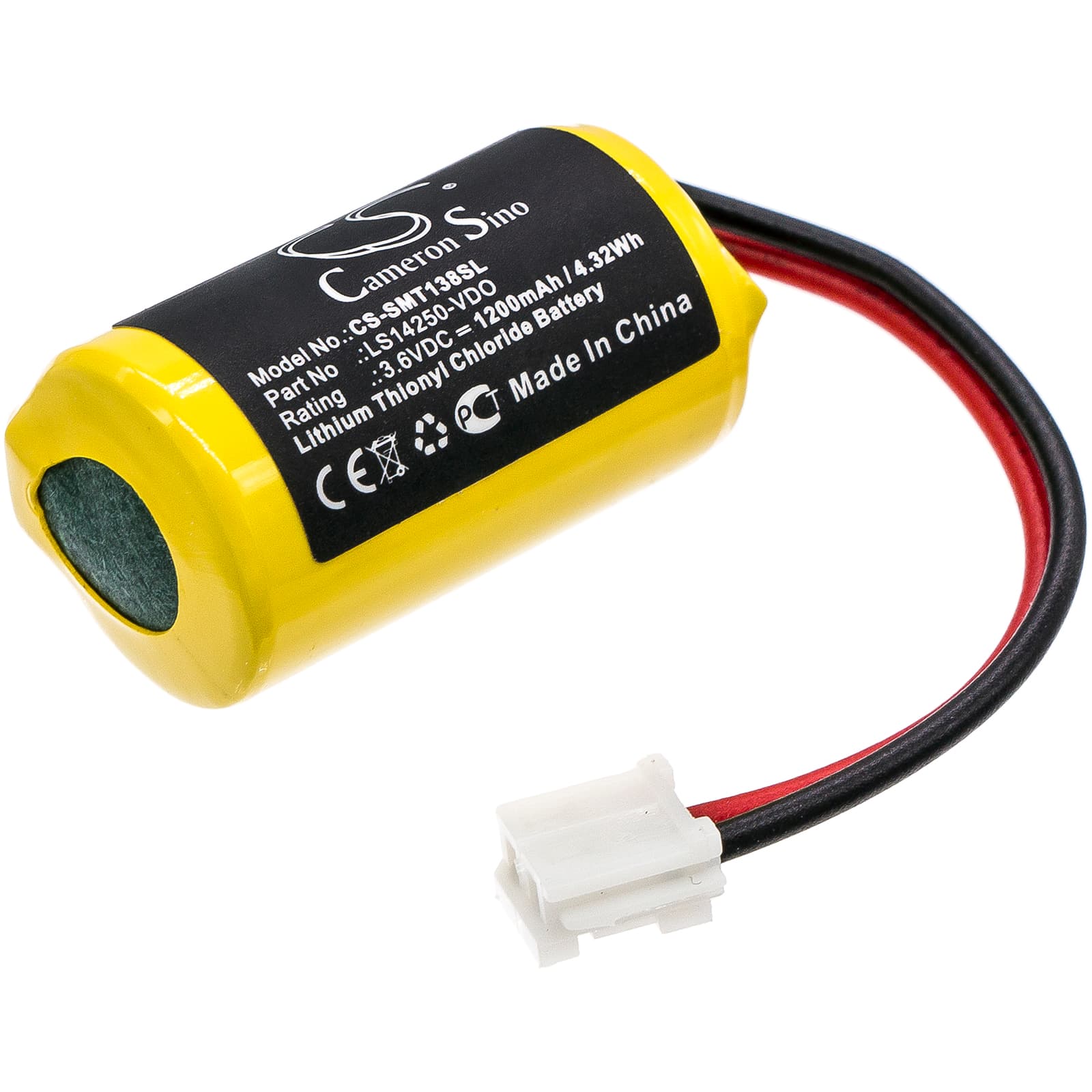

Siemens VDO Digital Tachograph DTCO 1381 — 3.6V Li-SOCl2 Replacement Battery (LS14250-VDO)
This is a 3.6V, 1200mAh lithium thionyl chloride cell that fits the Siemens VDO Digital Tachograph DTCO 1381. It powers the unit's real-time clock and SRAM data retention when the vehicle's primary power is disconnected. Without a functional cell, the tachograph loses its clock sync and stored records — a direct compliance risk for commercial operators.
- DTCO 1381 compatibility: The DTCO 1381 uses a dedicated Li-SOCl2 half-AA cell on a separate RTC and SRAM rail. Standard AA or lithium-ion cells do not fit this slot. This cell matches the LS14250-VDO form factor, voltage, and the connector footprint the unit expects.
- Bench tested on actual hardware: We ran this cell against the DTCO 1381's backup circuit and confirmed the BMS accepted the cell without triggering a voltage fault. The unit retained clock data and event logs through a simulated primary power interruption.
- Tachograph swap procedure: The DTCO 1381 must have ignition-on and vehicle primary power active during the cell swap. Removing the old cell with the unit fully powered off will wipe the RTC and erase retained records. After replacing the cell with power on, confirm clock continuity before returning the vehicle to service.
Why the DTCO 1381 shows a clock error after battery replacement
The DTCO 1381 stores its real-time clock in SRAM backed exclusively by this cell. If the cell was removed while primary power was off — even briefly — the RTC loses its reference entirely. The unit cannot self-recover the clock from the vehicle's CAN bus. A technician must re-enter the correct date and time via the tachograph's calibration interface or approved workshop software before the unit will log valid records again.
New cell reading below 3.6V on first check
Li-SOCl2 cells ship in a passivation state — a thin lithium chloride layer forms on the anode during storage, which suppresses the open-circuit voltage. On a fresh cell this can read as low as 3.2V to 3.4V before it has seen any load. Once installed in the DTCO 1381 with primary power on, the backup circuit applies a small float load that breaks down the passivation layer within a few hours. Recheck voltage after four hours on the unit — it should read at or above 3.6V.
