About this replacement

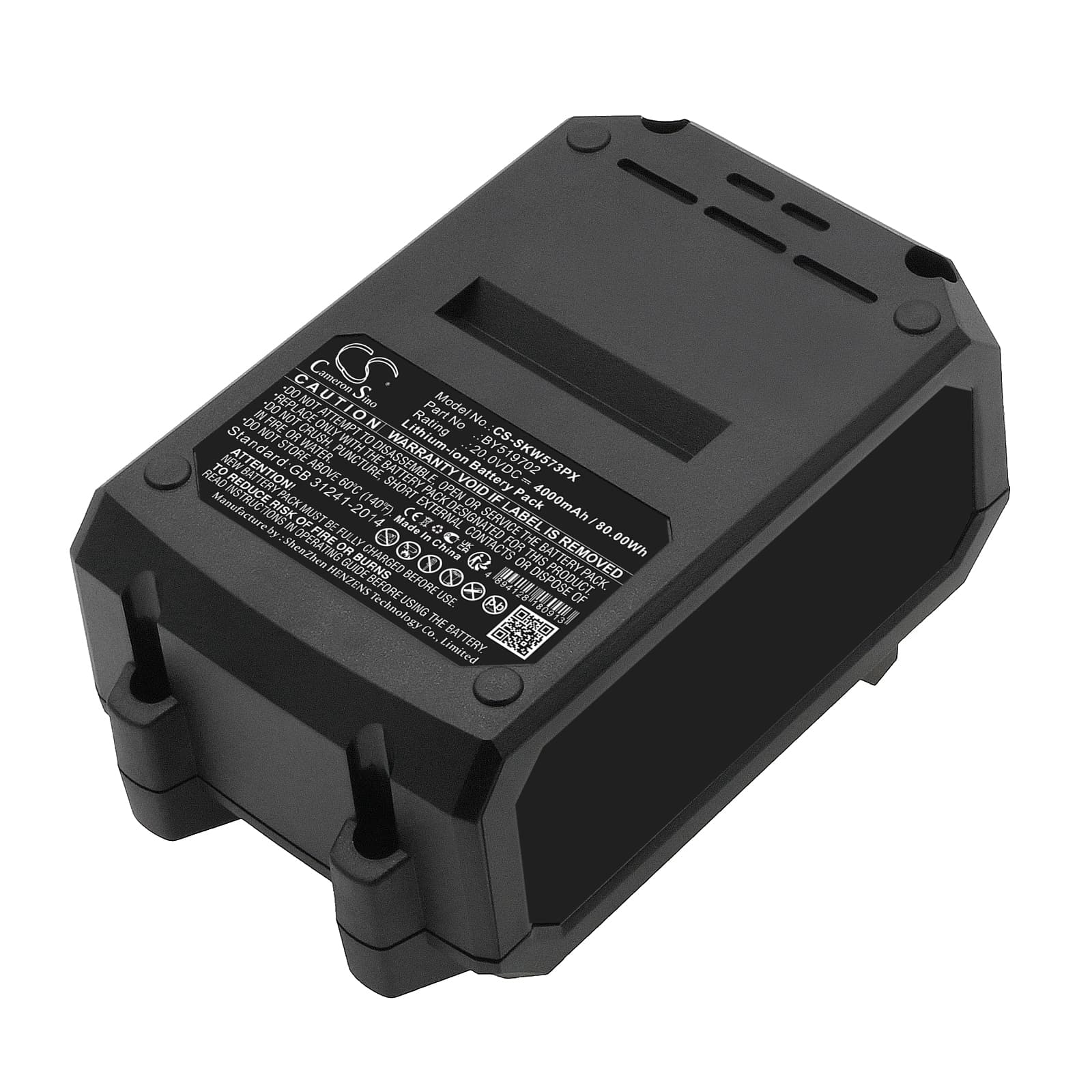

Skil PWRCORE 20 Impact Driver — 20V Li-ion 4.0Ah Replacement Battery (BY519702)
This 20V 4000mAh Li-ion pack replaces the original battery on the Skil PWRCORE 20 platform, including the ID572701, DL527501, and 0.6cm Hex Cordless Impact Driver. It runs at 20V nominal with 80Wh total capacity. Fits the same connector and BMS handshake as the factory pack across the PWRCORE 20 tool line.
- PWRCORE 20 platform compatibility: All tools in the Skil PWRCORE 20 line share the same 20V battery interface, connector housing, and BMS communication protocol. One pack works across drills, drivers, and saws on that rail without adapter hardware.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a PWRCORE 20 impact driver. The BMS handled motor-start inrush current without tripping overcurrent protection, and cell temperature stayed within safe limits through sustained fastener-driving sequences.
- Break-in load protocol: On first use, run the impact driver at half torque for two full discharge-charge cycles before hitting maximum torque applications. This gives the BMS time to profile the motor's inrush current draw and set accurate overcurrent thresholds before you load it hard.
BMS Cutoff on Trigger-Pull Inrush in the PWRCORE 20 Impact Driver
Impact drivers pull a sharp current spike the moment the trigger engages — the motor needs several times its running current to break static resistance and start spinning. If the BMS overcurrent threshold is set conservatively or the cells are cold, that inrush spike can trip protection before the motor even reaches speed. A new or cold pack is most vulnerable because cell impedance is elevated and the BMS has no learned baseline for this motor's start signature. Letting the pack warm to room temperature before use and running a few light-load cycles first keeps the BMS from misreading a normal start event as a fault.
Charger Blinks Red and Refuses to Charge After Pack Sat in Storage
Li-ion cells left uncharged for several months can drop below the charger's minimum acceptance voltage — typically around 2.5V per cell. The Skil charger reads that low-voltage state as a damaged or incompatible pack and signals a fault before attempting a charge cycle. To recover the pack, some chargers have a "boost" or "wake" mode that trickle-charges at a low rate until cells climb back above the acceptance threshold. If your charger lacks that mode, a compatible Li-ion charger with a manual recovery function can bring cell voltage back up to 3.0V per cell, at which point the Skil charger will accept the pack normally.
