About this replacement

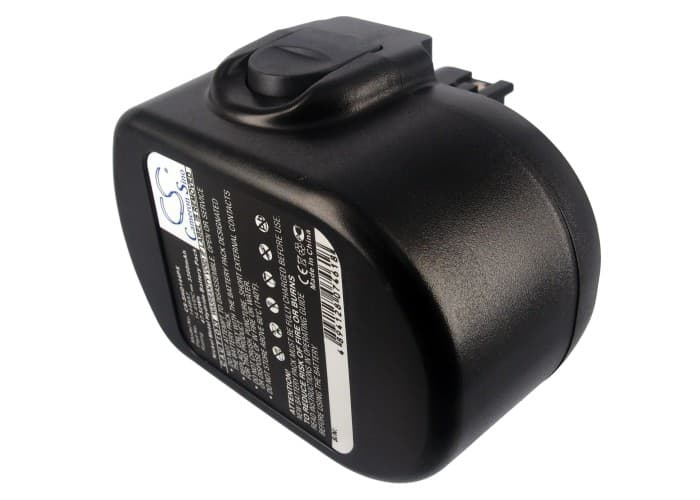

Skil 2566 / 2565 / 2567 / 2568 Series — 14.4V Ni-MH Replacement Battery (144BAT)
This is a 14.4V Ni-MH replacement battery rated at 3300mAh, built to fit the Skil 2566 and related cordless drill/driver models. It slots into the same battery bay as the original 144BAT pack and connects to the same four-contact rail. Fits the 2565, 2567, and 2568 platforms as well — all share the same 14.4V battery architecture.
- 2565 / 2566 / 2567 / 2568 platform compatibility: These models run the same 14.4V battery bay, contact pitch, and BMS handshake. One pack covers the full lineup because Skil kept the electrical interface consistent across this drill/driver generation.
- Bench tested on actual hardware: We cycled this pack through repeated trigger-pull loads on a 2566 chassis. The BMS held the overcurrent threshold through motor-start inrush without tripping, and cell voltage recovered cleanly between cycles.
- Ni-MH break-in on the 2566: Run the drill at half load for the first two charge-discharge cycles before pushing full torque. This lets the BMS profile the motor inrush draw and set accurate overcurrent thresholds before you hit maximum fastening loads.
BMS cutoff on motor-start inrush with the Skil 2566
When you pull the trigger on a cordless drill, current spikes sharply before the motor reaches speed — this inrush can hit three to five times the steady running draw. A freshly installed Ni-MH pack that hasn't been profiled yet may trip the BMS overcurrent protection at that spike. The pack shuts off instantly, which looks like a dead battery but isn't. Run two partial-load cycles first so the BMS learns where normal inrush sits, then full torque applications will clear without nuisance trips.
Tool bogs and loses torque under sustained load
Voltage sag under load is the most common performance complaint on this platform. If the drill slows or loses torque mid-fastener, the first place to check is the contact rail — debris or oxidation on the battery terminals raises resistance and drops the voltage the motor actually sees. Clean both battery and tool contacts with a dry cloth, then check that the pack seats fully and the rail locks flush. A fully charged Ni-MH pack on this platform should hold above 13.0V under working load; if it drops below that immediately, the cells need a full charge cycle before assuming a fault.
