About this replacement

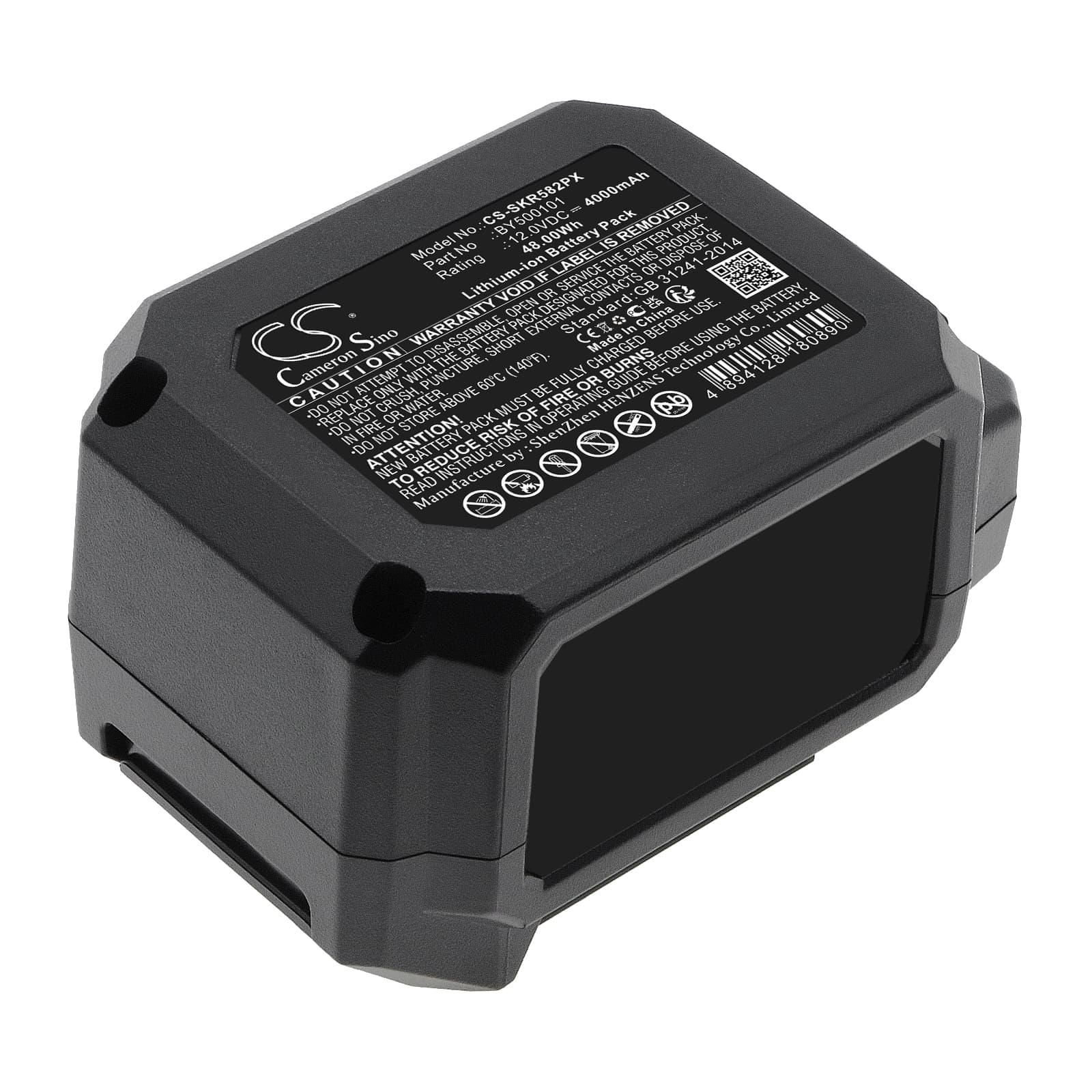

Skil PWRCORE 12™ Brushless 12V 3/8" Ratchet Wrench Kit — 12V Li-ion Replacement Battery (BY500101)
This 12V, 4000mAh Li-ion battery replaces the OEM pack on the Skil PWRCORE 12™ Brushless 12V 3/8" Ratchet Wrench and compatible PWRCORE 12™ tools. It matches the original voltage rail and connector, so the tool's BMS handshake clears without modification. Capacity is 48Wh — identical to the factory specification listed under part number BY500101.
- PWRCORE 12™ platform fit: The PWRCORE 12™ lineup — including the IW5744-10 impact, the 3/8" ratchet, and 12V Mechanical Light — shares a common 12V battery slot and BMS communication protocol. One pack works across all of them because the cell configuration and connector pinout are identical across the platform.
- Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a 3/8" ratchet wrench, monitoring BMS response to the motor-start inrush current spike. The protection circuit held the overcurrent threshold without nuisance tripping across all test cycles.
- First-use ratchet break-in: On first use, run the ratchet at mid-torque for two full cycles before applying maximum fastening loads. This lets the BMS log the motor's inrush current signature and calibrate the overcurrent cutoff threshold before you hit peak demand.
BMS cutoff on trigger-pull inrush surge in the PWRCORE 12™ ratchet
Compact ratchet wrenches draw a sharp current spike the instant the motor starts — often two to three times the steady running current. The BMS on 12V packs has a tight overcurrent window because the cells are small-format and more vulnerable to damage from sustained high draw. A worn or cold pack raises internal resistance, which amplifies that voltage drop on the spike and can push the BMS into a protective cutoff. Keeping the pack above 10.8V under load and at room temperature keeps the inrush spike within the BMS window.
Charger shows blinking red and won't accept the pack after storage
Li-ion packs stored for more than a few months can self-discharge below the charger's acceptance threshold — typically around 9V for a 12V pack. When cell voltage drops that low, the charger's detection circuit sees a potentially damaged pack and refuses to enter bulk charge mode, triggering a blinking red fault. Some Skil PWRCORE chargers include a recovery or "wake-up" mode — hold the pack on the charger for 30–60 seconds and check whether the indicator shifts to solid or slow-blink. If the pack was stored above 10V, a full charge cycle should clear the fault without any further steps.
