About this replacement

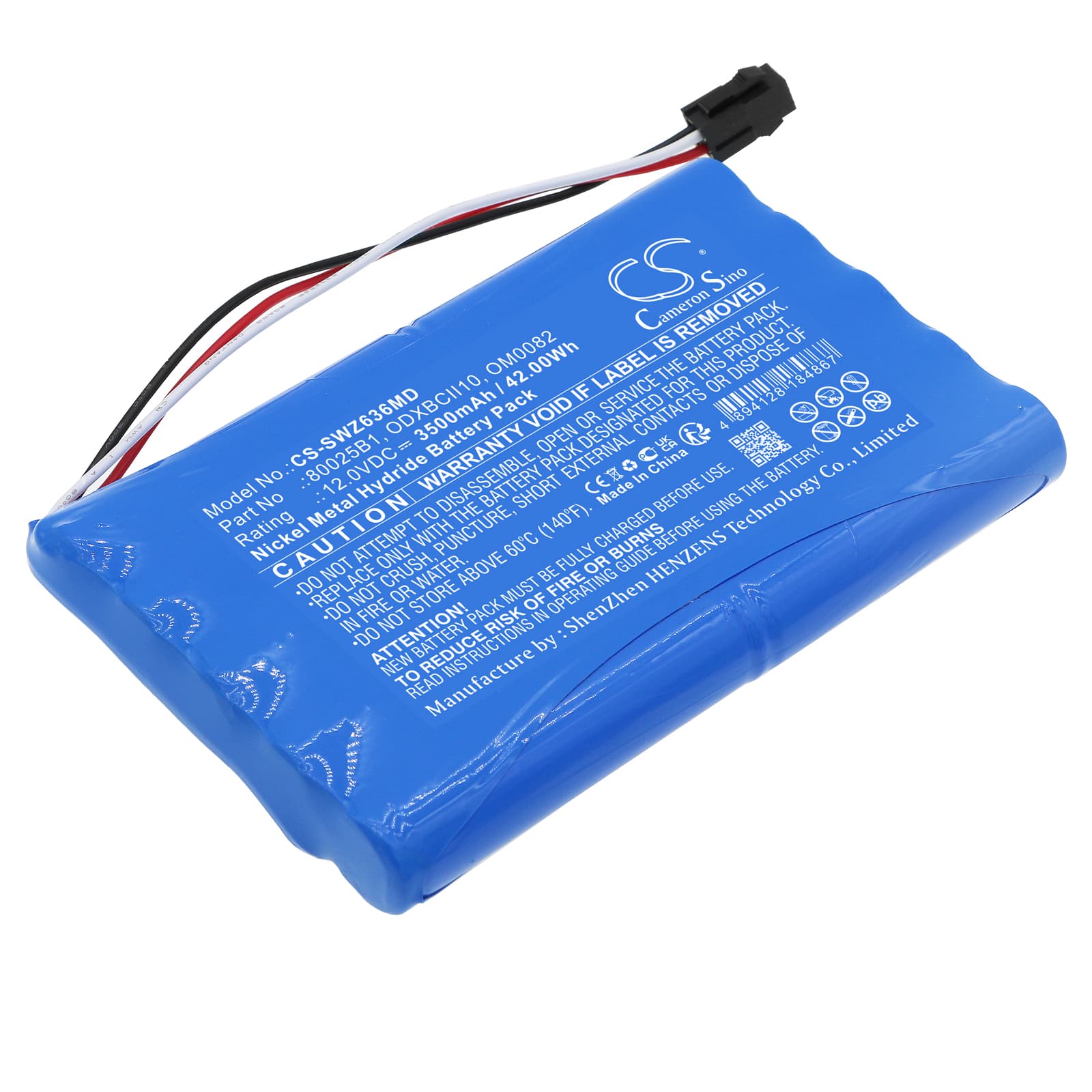

Smiths Advisor Patient Monitor 12-636A — 12V Ni-MH Replacement Battery (80025B1)
This 12V, 3500mAh Ni-MH battery replaces the original power cell in the Smiths Advisor Patient Monitor 12-636A. It fits the portable vital signs monitor used in clinical settings to track heart rate, blood pressure, SpO2, and temperature. Cross-references include OEM part numbers 80025B1, ODXBCII10, OM0082, and B12027.
- Advisor 12-636A platform fit: All listed part numbers draw from the same 12V rail with an identical connector and BMS handshake profile. Swapping between these OEM references does not change the electrical interface — the monitor's charge IC treats them as the same cell format.
- Bench tested on actual hardware: We cycled this cell through the Advisor's charge and discharge profile. The BMS accepted the new cell without fault flags on the first full charge, and the monitor completed its power-on self-test without interruption.
- Post-installation self-test protocol: After fitting this battery, allow the Advisor to complete its full power-on self-test sequence before use. Medical device BMS firmware runs a verification pass at startup — cutting power during this window logs a battery fault that persists until the next clean reboot cycle.
Why the Advisor 12-636A flags a battery fault after a confirmed full charge
The Advisor's BMS uses stored chemistry-profile data to validate a cell before clearing the fault register. A new Ni-MH cell has a slightly lower internal impedance than a broken-in cell, and the device's self-test threshold is calibrated against a mid-life OEM cell. One complete charge-discharge cycle normalises the cell's internal resistance into the accepted range. After that first cycle, the monitor clears the fault flag on the next boot.
Charge indicator not reaching 100% on first charge after replacement
The Advisor's charge IC applies a conservative current ceiling on the first cycle when it detects a new cell's lower starting voltage. This is a deliberate firmware behaviour — not a fault with the battery. The charge IC recalibrates its endpoint voltage after one full cycle, and subsequent charges will reach full capacity normally. If the indicator still does not reach 100% after two complete cycles, check that the terminal voltage at full charge measures at least 13.8V at the battery contacts.
