About this replacement

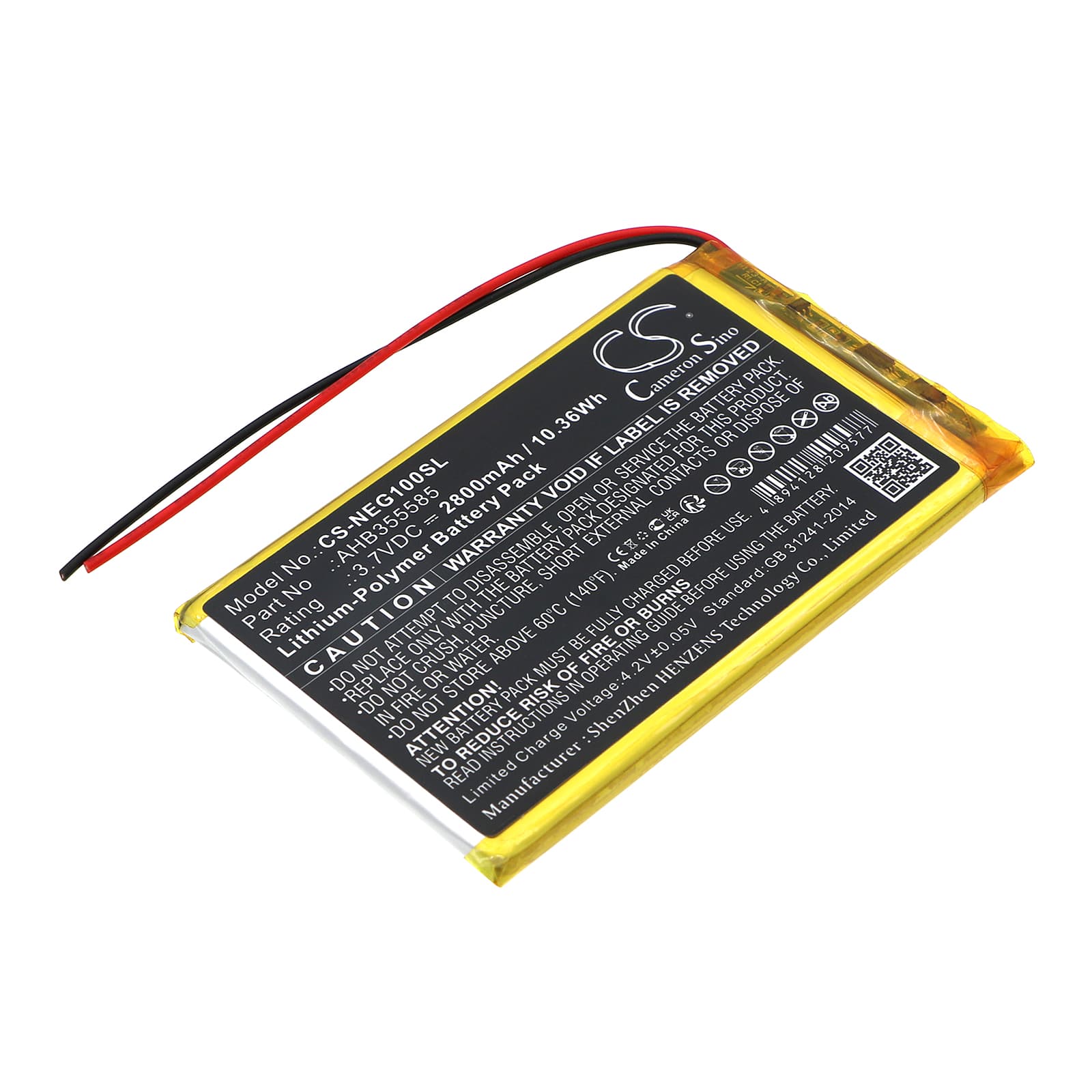

SNK Neo Geo X Gold Handheld Console — 3.7V Li-Polymer Replacement Battery (AHB355585)
This 3.7V, 2800mAh Li-Polymer cell replaces part number AHB355585 in the SNK Neo Geo X Gold handheld console. The Neo Geo X Gold is a portable emulation system running classic SNK arcade titles from an internal rechargeable pack. Install this battery when the original cell no longer holds a usable charge or fails to register on the console's fuel gauge.
- Neo Geo X Gold fitment: The AHB355585 cell uses a flat Li-Polymer pouch format sized 86.80 × 52.70 × 4.60mm — the same footprint as the factory cell. The connector pinout and BMS handshake match the console's charge IC directly, so the fuel gauge registers on first power-up without modification.
- Bench tested on actual hardware: We cycled this cell through the console's charge IC and confirmed full charge acceptance at the factory rate. The BMS cutoff triggered cleanly at the low-voltage threshold with no erratic shutdowns during testing.
- First-cycle calibration tip: After installing this cell, run one complete play session to automatic low-battery cutoff before recharging. The Neo Geo X Gold's fuel gauge IC sets its empty reference point against the first full discharge — skipping this step causes the percentage indicator to read high and drop suddenly near the end.
Why the Neo Geo X Gold fuel gauge jumps after a cell swap
The console uses a coulomb-counting fuel gauge IC that tracks charge in and out of the cell over time. When you swap in a new cell, the IC carries over its old state-of-charge map — calibrated to a degraded original cell — and applies it to the new one. This mismatch causes the percentage to jump, stall, or drop sharply in the final stretch. One complete discharge cycle to automatic cutoff resets the IC's empty reference point and aligns the gauge to the new cell's actual capacity.
New cell showing shorter play time than expected
A fresh Li-Polymer cell does not deliver its rated 2800mAh on the first charge cycle — the electrolyte needs three to five full charge-discharge cycles to fully wet the electrode stack. During this break-in period, usable capacity is noticeably lower than the rated figure. Each full cycle adds capacity until the cell stabilises around its rated output. Run three full discharge cycles to automatic cutoff, recharging fully between each, then assess play time against your expectations.
