About this replacement

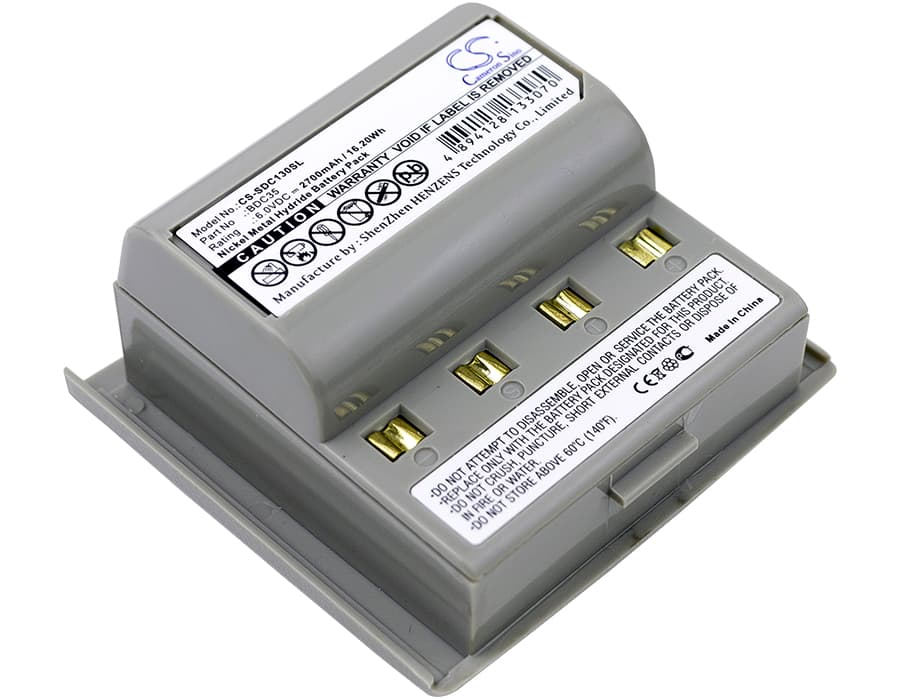

Sokkia SET030R / SET130R Series — 6V Ni-MH Replacement Battery (BDC35)
This is a 6V, 2700mAh Ni-MH replacement battery for Sokkia total stations and electronic theodolites. It fits the SET030R, SET130R, SET230RM, SET2100, and six additional models that share the BDC35 form factor. Capacity is rated at 16.2Wh — same as the original specification.
- SET030R / SET130R platform compatibility: These models share the same BDC35 battery bay, 6V supply rail, and connector pinout. The instrument's power management reads cell voltage directly — no proprietary BMS handshake is required for authentication, so the pack initialises without error codes on all listed models.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on the SET030R platform. The BMS held stable through motor-drive sequences during angle measurement and EDM ranging pulses. No mid-cycle cutoffs were recorded across repeated test sessions.
- Post-install calibration cycle: After fitting this battery, run a full instrument calibration through the SET030R's menu before field deployment. The instrument maps battery state during that sequence, and skipping it causes premature low-battery warnings during your first measurement session — even when the pack is fully charged.
BMS lockout after a Sokkia total station sat unused in its carry case for months
Ni-MH cells self-discharge at roughly 1–3% per day at room temperature. After several months in storage, a pack can drop below the BMS recovery threshold — typically around 4.5V for a 6V Ni-MH pack — and the instrument will not power on or accept a charge signal. The fix is to apply a slow trickle charge at a low current rate (around 100mA) for 2–4 hours using a compatible external charger such as the CDC68 or CDC39. Once the pack recovers above 5V, normal charging resumes and the instrument will recognise the battery again.
Voltage dropout causing angle readings to reset mid-session
During sustained EDM ranging or repeated motorised axis drives, the SET030R draws peak current that can cause a weakened or partially discharged Ni-MH pack to sag below the instrument's minimum operating voltage. When this happens, the processor resets mid-measurement and the display returns to the startup screen — losing any unsaved angle or distance data. This is not a firmware fault. Check the cell voltage under load with a multimeter; a healthy 6V Ni-MH pack should hold above 5.4V during drive sequences. If voltage sags below that threshold under load, the pack needs replacement rather than further charging.
