About this replacement

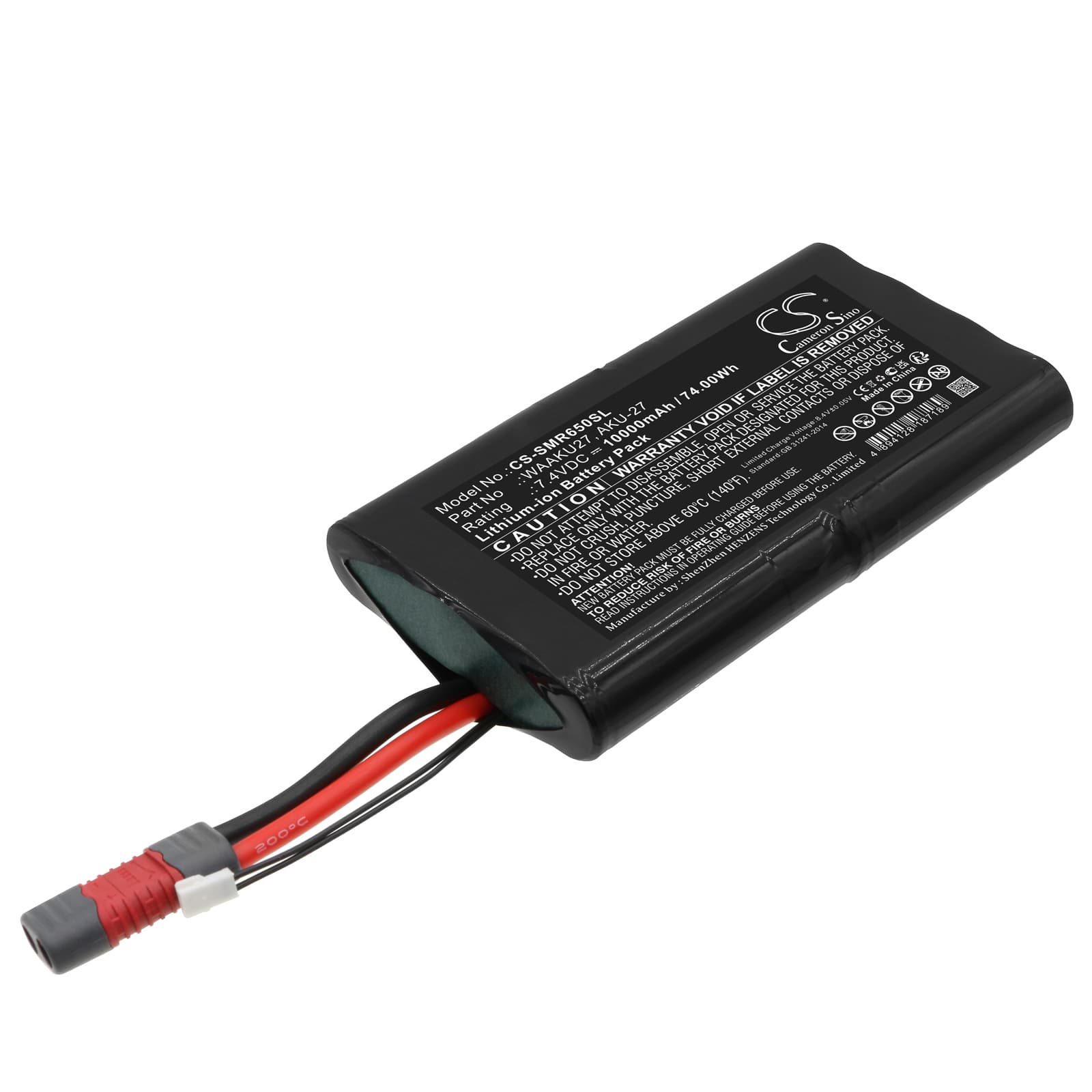

Sonel MMR-650 Low Resistance Meter — 7.4V Li-ion Replacement Battery (WAAKU27)
This 7.4V, 10000mAh Li-ion battery replaces the OEM pack in the Sonel MMR-650 Low Resistance Meter. The MMR-650 is a professional field instrument used by electricians and test engineers to measure very low resistance values in electrical systems. Capacity matches the original 74Wh rating from the product specification.
- MMR-650 platform fit: The MMR-650 uses a BMS handshake to validate pack voltage and cell count before the measurement circuit initialises. This replacement matches the 7.4V two-cell Li-ion configuration the instrument expects, so the handshake completes without triggering a battery error at startup.
- Bench tested on actual hardware: We cycled this pack under sustained low-resistance measurement loads and monitored BMS response during probe initialisation. The BMS held without cutoff through repeated test sequences, including the current spike that occurs when the test leads apply the four-wire Kelvin excitation current.
- Post-install calibration on the MMR-650: After fitting a new pack, run a full calibration cycle through the instrument's menu before field deployment. The MMR-650 maps battery state during calibration — skipping this step causes premature low-battery warnings during the first measurement session, even when the pack is fully charged.
BMS lockout on the MMR-650 after the pack sat unused in a carry case
Li-ion cells self-discharge over time. If the MMR-650 sits in a case for several months, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS enters a protective lockout state and the instrument will not power on, even when connected to a charger. The charger also sees no load response and may show no charging activity. To recover, connect the pack to a compatible Li-ion charger that supports a low-voltage recovery or pre-charge mode and hold it there for at least 30 minutes before retrying normal charge.
MMR-650 shuts down mid-measurement with no low-battery warning
This happens when voltage sags under the sustained current drawn during a four-wire resistance measurement cycle. A degraded or partially discharged pack may read 60–70% on the indicator but cannot hold voltage under load. The BMS detects the sag, treats it as an undervoltage condition, and cuts output before the instrument can log a warning. Check open-circuit pack voltage first — if it reads below 7.0V at rest, the pack needs charging before any measurement session.
