About this replacement

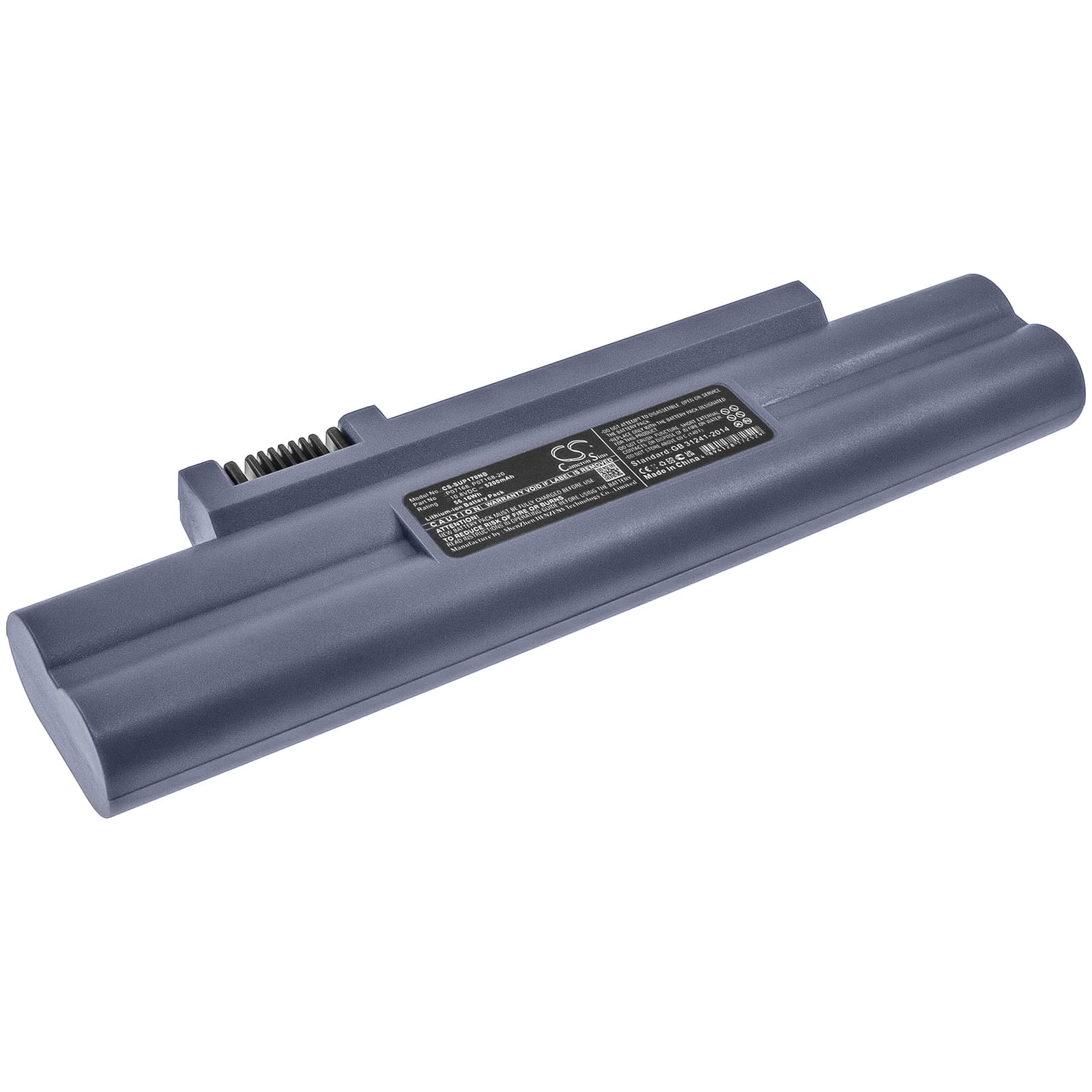

SonoSite M-Turbo / MicroMaxx — 10.8V Li-ion Replacement Battery (P07168)
This 10.8V 5200mAh (56.16Wh) lithium-ion battery replaces the OEM pack in the SonoSite M-Turbo, M-Turbo P17000-13, MicroMaxx, and Titan portable ultrasound systems. It cross-references OEM part numbers P07168, P07168-02, P07168-20, P07168-21, and P15051-20. These are clinical-grade portable devices where power continuity directly affects patient care workflows.
- M-Turbo and MicroMaxx platform fit: Both platforms share this battery format because they run the same 10.8V power rail, use the same physical connector, and require the same BMS communication protocol for charge status reporting on the device display.
- Bench tested on actual hardware: We cycled this battery through the M-Turbo's full charge-discharge sequence and monitored BMS handshake behaviour. The protection circuit responded correctly to load spikes during imaging mode and logged charge state accurately after the first full cycle.
- Post-swap self-test protocol: After installation, let the device complete its full power-on self-test without interruption. The M-Turbo runs a BMS verification check at startup — cutting power during this sequence trips a false battery fault that persists until the next clean reboot.
Why the M-Turbo alarms low battery immediately after a confirmed full charge
The M-Turbo's charge IC applies a conservative acceptance threshold calibrated to the OEM cell's chemistry signature. A new replacement cell — even fully charged — can read outside this threshold on the first cycle, triggering a low-battery alarm that has nothing to do with actual charge level. The BMS needs one complete charge-discharge cycle to map the new cell's internal resistance profile and update its state-of-charge model. After that first cycle, the alarm clears and the charge indicator reports correctly.
Device will not power on after the battery sat in storage
Li-ion cells self-discharge during storage. If this battery sat long enough, the cell voltage may have dropped below the M-Turbo's BMS recovery threshold — typically around 2.5V per cell — causing the device to refuse to boot. Connect the battery to the OEM charger and leave it for a minimum of 30 minutes before attempting to power on; the charger applies a low-current pre-charge to recover cells in this range. Once the charger indicator shows active charging, the BMS has cleared the under-voltage lockout and the device will boot normally.
