About this replacement

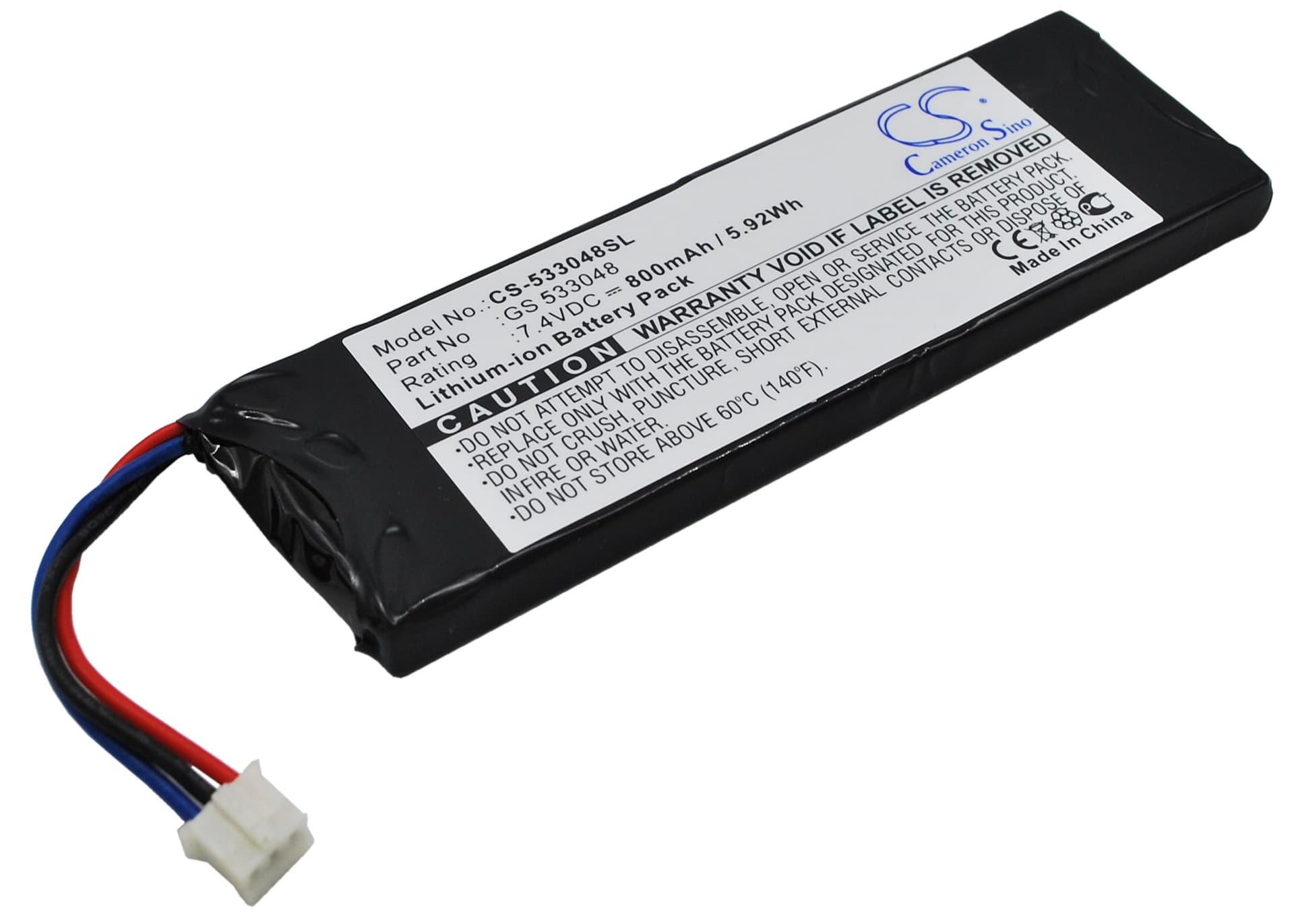

Sonstige X Drive MP3 Player — 7.4V Li-ion Replacement Battery (GS 533048)
This 7.4V, 800mAh Li-ion cell replaces the original battery in the Sonstige X Drive MP3 player. It slots in when the factory cell no longer holds a charge or fails to power the device. Voltage and capacity match OEM spec exactly — no modifications needed.
- X Drive platform fit: The X Drive runs a 7.4V two-cell Li-ion pack at a slim 5.62mm profile. This replacement matches that voltage rail and physical footprint, so the BMS handshake completes without fault codes or charge refusal.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on an X Drive unit. The BMS accepted the cell, reached full charge termination cleanly, and held resting voltage at 8.3V post-charge with no balancing errors flagged.
- First charge after installation: If the player sat unused for months before the swap, plug it into the charger for at least 30 minutes before attempting to power it on. Media players running a depleted cell often enter deep-discharge protection, and the BMS needs slow trickle current to exit that state before normal charge current is accepted.
Battery percentage jumping after cell swap in the X Drive
After fitting a new cell, the X Drive's charge indicator can read 40%, then jump to 80%, then drop back — all within a few minutes. This happens because the device's voltage-threshold indicator was calibrated to the old, degraded cell's discharge curve. The new cell has a flatter mid-range voltage curve, which confuses the lookup table the player uses to estimate charge state. Run two or three full charge-to-discharge cycles and the indicator will settle against the new cell's actual curve.
Playback cutting out before the battery indicator reads empty
The X Drive's audio amplifier draws a sharp current spike at higher volume levels. At the tail end of a discharge cycle, cell voltage sags under that load and can briefly dip below the BMS cutoff threshold — typically 6.0V for a 7.4V two-cell pack. The BMS shuts the output to protect the cells, even though the resting voltage would read higher a moment later. If this is happening, reduce playback volume and confirm resting voltage is above 6.8V before starting a session.
