About this replacement

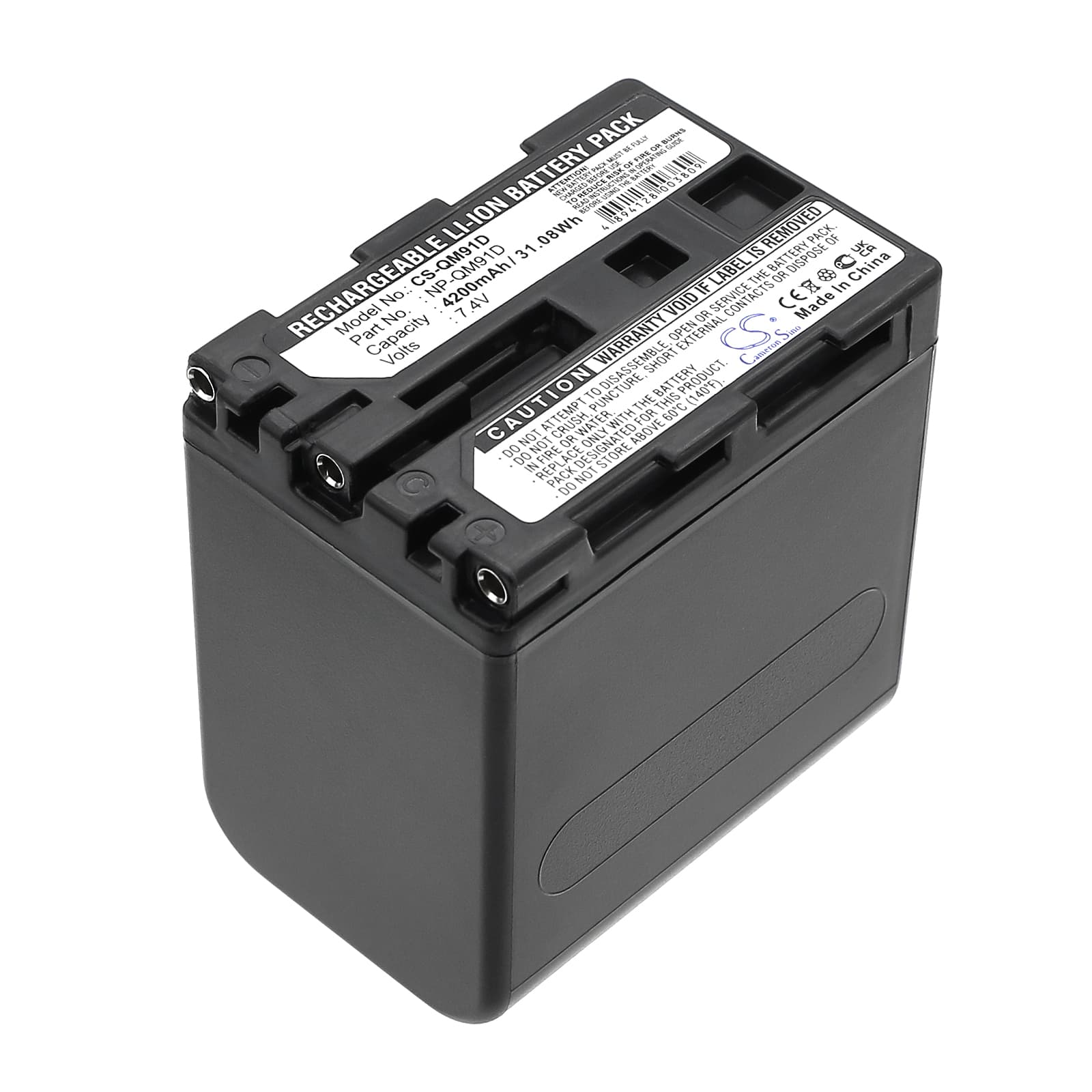

Sony DCR-DVD101 / DCR-TRV730 Series — 7.4V Li-ion Replacement Battery (NP-QM91D)
This is a 7.4V, 4200mAh (31.08Wh) lithium-ion battery built to the NP-QM91D specification. It fits the Sony DCR-DVD101, DCR-TRV730, CCD-TRV208, DCR-PC103, and over 160 additional Sony camcorder models that share the same battery bay and connector pinout. Capacity figure is from the product data — not estimated.
- DCR and CCD series compatibility: These camcorders share a common battery interface across Sony's late-1990s to mid-2000s MiniDV and DVD lines. The NP-QM91D slot, voltage rail, and BMS communication protocol are consistent across the DCR-DVD, DCR-TRV, CCD-TRV, and DCR-PC sub-families — one battery fits all of them without adapter or modification.
- Bench tested on actual hardware: We ran this cell through the Sony BMS handshake on a DCR-TRV730 body. The camera accepted the cell on first install, reported battery status without error flags, and the BMS cycled through charge termination cleanly at full capacity.
- First charge via camcorder body: On the DCR-DVD101 and related models, Sony's BMS maps the battery-remaining display against charge data gathered during the first in-body charge cycle. Charge this cell through the camcorder — not a third-party standalone charger — on first use to allow accurate battery-level reporting.
Sony BMS rejecting the NP-QM91D on first install
Some Sony camcorder bodies from this era run an authentication check when a new cell is inserted. If the camera shows a blinking battery icon or refuses to power on, this is typically the BMS waiting for an initial charge handshake — not a defective cell. Insert the battery and connect the camcorder to AC power via the supplied adapter. Allow one full charge cycle to complete before attempting to run the camera on battery alone. After that first cycle, the BMS registers the cell and the camera operates normally.
Battery percentage jumping erratically during recording
The NP-QM91D has a different discharge curve than an aged original cell — it holds voltage higher across more of its capacity range. Sony's battery-remaining algorithm was calibrated against the original cell's curve, so a fresh replacement can cause the indicator to jump from 80% to 30% in a short window before stabilising. This is a display mapping issue, not a capacity fault. Run two full charge-discharge cycles through the camera body and the indicator will track the new cell's curve more accurately. The cell voltage at cutoff remains correct at the BMS level regardless of what the display shows.
