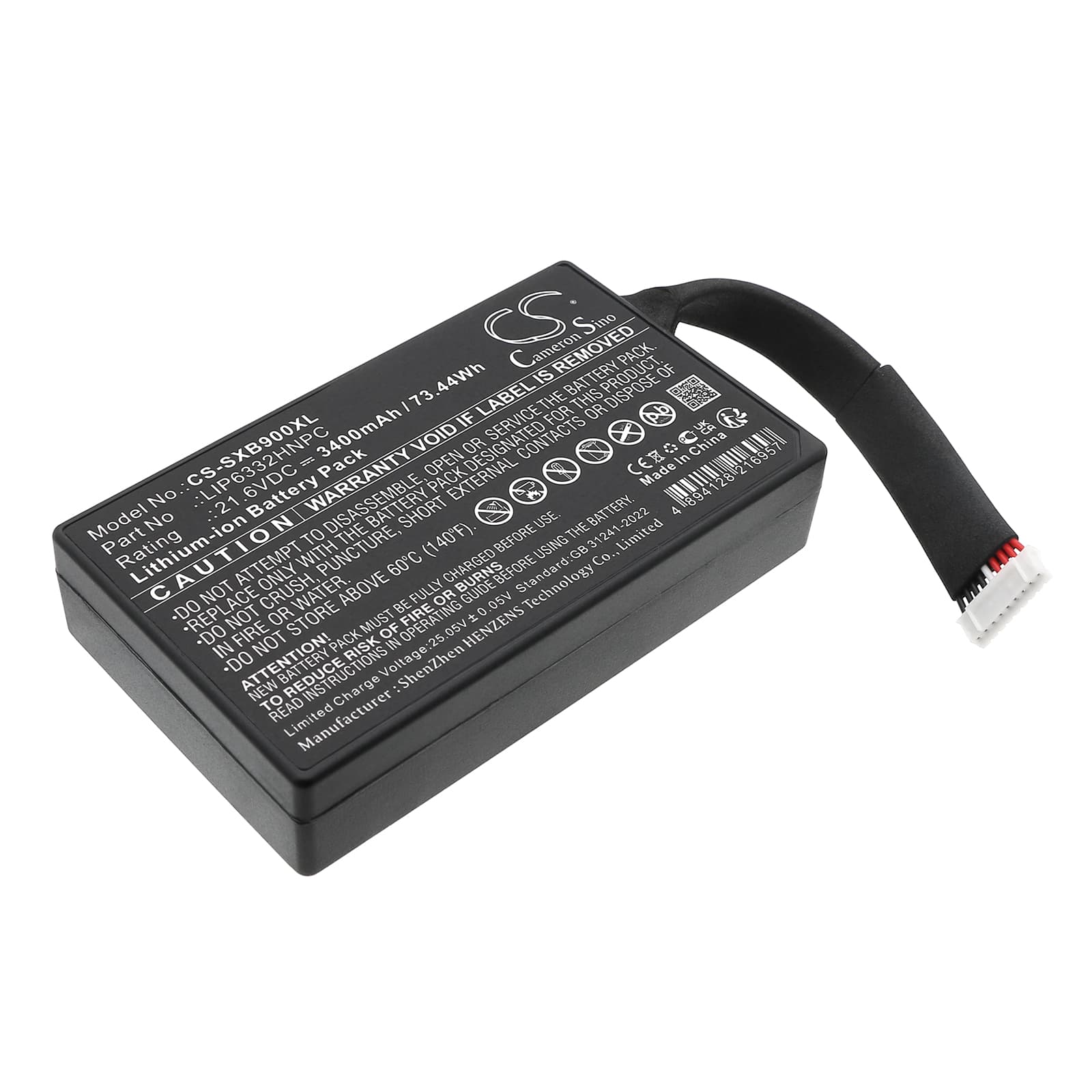

Sony GTK-XB90 — 21.6V Li-ion Replacement Battery (1-853-679-11)
This 21.6V, 3400mAh Li-ion battery replaces the original pack in the Sony GTK-XB90 portable wireless speaker. It fits directly into the GTK-XB90 chassis and restores full audio playback and Bluetooth operation. Capacity figure is 73.44Wh, matching the OEM spec.
- GTK-XB90 pack architecture: The GTK-XB90 runs a high-voltage Li-ion stack to feed both the Class D amplifier and the Bluetooth radio from a single pack. The 21.6V rail is specific to this model's power board — lower-voltage generic speaker packs will not satisfy the BMS handshake and the speaker will not power on.
- Bench tested on actual hardware: We cycled this battery through repeated audio loads at the GTK-XB90's maximum output setting. The BMS held the 21.6V rail steady through amplifier current spikes and did not trip on combined amp-plus-radio draw.
- Fuel gauge recalibration on the GTK-XB90: Let the speaker discharge below 20% at least once a month before recharging. Constant top-off charging without a full discharge cycle causes fuel gauge drift — the indicator reads full while actual cell capacity is significantly lower.
Audio distortion before the battery indicator reaches empty on the GTK-XB90
As cell voltage drops under sustained high-volume load, the amplifier's supply rail sags before the BMS triggers low-battery cutoff. The amplifier clips at that reduced rail voltage, producing audible distortion even though the indicator still shows charge remaining. This is a voltage sag symptom, not a speaker fault. A worn or deeply cycled pack will show this earlier in the discharge curve — a fresh, fully charged cell holds the 21.6V rail long enough that distortion stays out of the usable listening range.
GTK-XB90 won't charge after the battery fully drained
When the cell voltage drops below the USB-PD minimum acceptance threshold — typically around 2.5V per cell — the BMS locks out charging to prevent an unsafe recovery attempt. The speaker shows no charge indicator and appears completely dead. To recover, connect the charger and leave it undisturbed for 15–20 minutes — the BMS on this pack includes a trickle pre-charge stage that slowly brings the cells back up to a safe voltage before switching to normal charge current. If the indicator still shows nothing after 30 minutes, check that the supply voltage at the socket measures above 20V before assuming pack failure.
