About this replacement

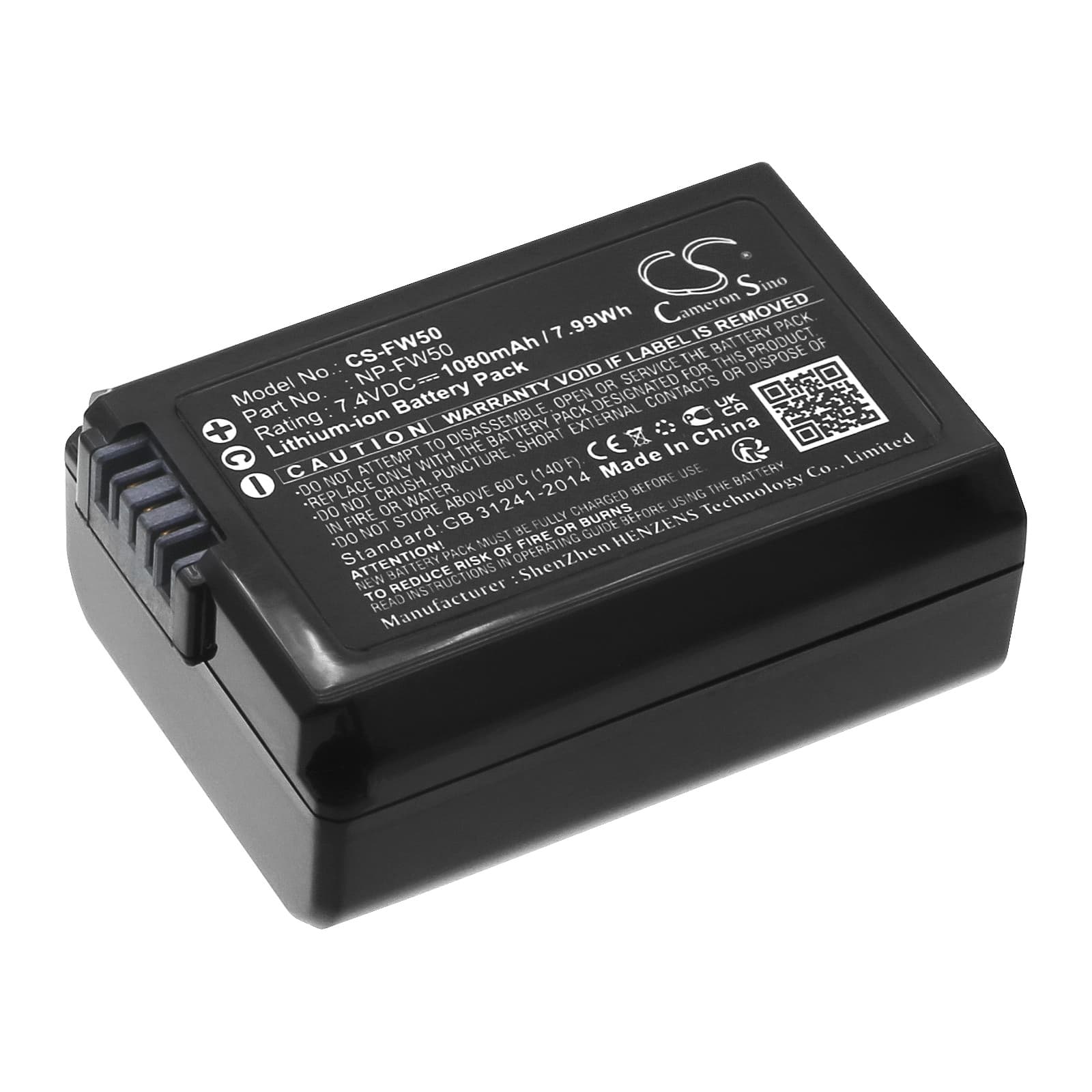

Sony NEX-5 / NEX-5A / NEX-5K / NEX-5D — 7.4V Li-ion Replacement Battery (NP-FW50)
This is a 7.4V, 1080mAh Li-ion replacement for the Sony NP-FW50 battery. It fits the NEX-5, NEX-5A, NEX-5K, NEX-5D, and over 90 additional Sony mirrorless and compact system camera bodies that share the NP-FW50 footprint. Capacity is rated at 7.99Wh, matching the original cell's power envelope.
- NEX-5 series compatibility: The NEX-5, NEX-5A, NEX-5K, and NEX-5D share the same NP-FW50 battery bay, voltage rail, and BMS communication protocol. All four bodies run the same firmware-level battery authentication check on power-on, so one cell covers the full range without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a NEX-5 body. The BMS accepted the cell after one full charge via the OEM charger, and the battery-remaining indicator tracked consistently across the discharge curve.
- First-cycle BMS calibration on the NEX-5: On first install, charge this battery fully inside the camera body or via the OEM BC-VW1 charger before shooting. The NEX-5's battery indicator maps percentage to voltage thresholds learned during that first cycle — skipping it can cause the display to read inaccurately for several sessions.
Why the NEX-5 battery percentage drops suddenly near 30%
The NEX-5 maps its battery percentage display to a fixed voltage-threshold table calibrated to the original NP-FW50 discharge curve. Replacement cells with a slightly different mid-discharge voltage profile can cause the indicator to hold steady, then drop sharply when the cell hits a threshold the camera doesn't expect. This is a display mapping issue, not a cell fault. Run one full charge-discharge cycle in the camera body and the indicator typically stabilises within two to three sessions.
Sony NEX-5 displaying "incompatible battery" on a valid NP-FW50 replacement
The NEX-5 runs an authentication handshake on power-on that checks cell voltage and BMS response. A new replacement cell that ships partially discharged can fall below the camera's minimum acceptance threshold, triggering the incompatible warning even though the cell is functional. Remove the battery, charge it fully in the OEM BC-VW1 charger or a known-good third-party NP-FW50 charger, then reinsert. If the camera accepts it at full charge, the cell is good — the fix is to get it above 8.2V before first use in the body.
