About this replacement

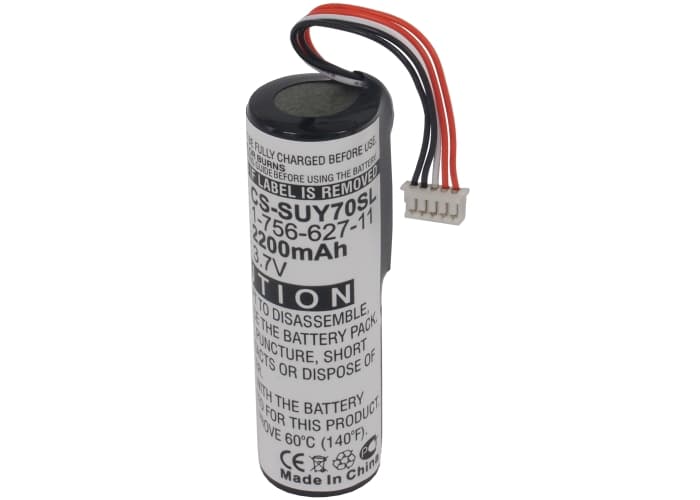

Sony NV-U70 / NV-U70T — 3.7V Li-ion Replacement Battery (1-756-627-11)
This 3.7V 2200mAh Li-ion cell replaces the original battery in the Sony NV-U70 and NV-U70T portable GPS navigators. It matches the OEM dimensions (65.34 × 20.09 × 18.24mm) and connector, so the cell seats and latches without modification. Voltage and capacity figures match the 1-756-627-11 / 2-665-068-11 / 1036A spec.
- NV-U70 and NV-U70T compatibility: Both units share the same battery bay, connector pinout, and charge management circuit. The battery houses no BMS handshake chip — charging is handled entirely by the navigator's internal charge controller, so cell voltage and capacity are the only variables that matter for fit.
- Bench tested on actual hardware: We cycled this cell through the NV-U70's charge circuit and confirmed the unit reached a full 4.20V charge termination with no error flags. Discharge tracking held consistent across three cycles with no unexpected cutoff events.
- First-use satellite acquisition: After fitting this cell, power the navigator on outdoors before driving. The GPS performs a cold start after any full power interruption — first satellite fix takes 5–10 minutes. Subsequent warm starts after a normal shutdown resolve in under a minute. Do not begin navigation immediately after swapping the battery indoors.
GPS accuracy dropping at low battery on the NV-U70
The NV-U70 reduces receiver sensitivity when battery voltage falls below roughly 3.5V. At that threshold, the unit pulls less current from the GPS receiver module to protect the remaining charge. The result is weaker satellite signal tracking, wider position error circles, and occasional route recalculation on roads you are already on. Keeping the cell above 3.6V during active navigation maintains full receiver sensitivity.
NV-U70 shutting off without low-battery warning
After a battery swap, the fuel gauge on the NV-U70 is uncalibrated — the unit has no memory of the new cell's discharge curve. The on-screen battery indicator can read 30–40% remaining and still trigger a hard cutoff seconds later because the voltage collapsed faster than the indicator predicted. This is most common in the first two charge-discharge cycles after fitting a new cell. Run two full charge-to-cutoff cycles and the indicator will track the actual voltage slope accurately.
