About this replacement

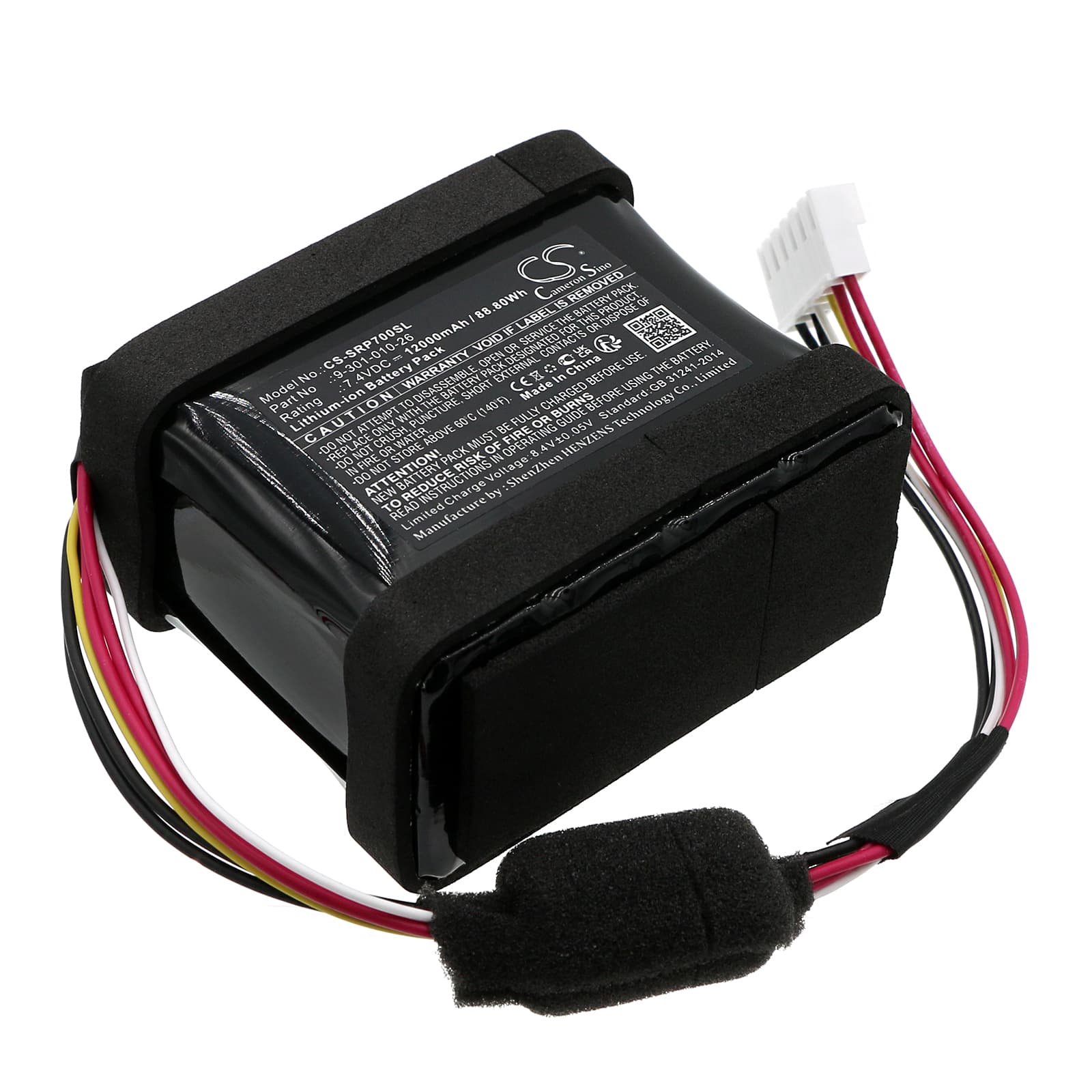

Sony SRS-XP700 — 7.4V Li-ion Replacement Battery (IAA047GA)
This 7.4V, 12000mAh (88.8Wh) Li-ion battery is a direct replacement for the Sony SRS-XP700 portable wireless speaker. It fits the original battery bay and connects to the same BMS interface the speaker expects. Swap it when the original cell can no longer hold enough charge to run the amplifier and Bluetooth radio together.
- SRS-XP700 platform fit: The XP700 uses a dual-cell 7.4V pack with a specific BMS handshake — the speaker firmware checks cell voltage and temperature data before enabling full amplifier power. This replacement matches that voltage rail and connector pinout so the speaker's power management reads the pack correctly.
- Bench tested on actual hardware: We ran the pack through full charge and discharge cycles, monitoring BMS communication with the speaker's controller. Cell balance held across both cells, and the protection circuit responded correctly to charge termination at 8.4V.
- Fuel gauge calibration for the XP700: Let the speaker discharge to below 20% at least once a month before recharging. The XP700 fuel gauge drifts when the pack is consistently topped off from 50% or higher — the indicator starts showing full charge well before the cells are actually full, cutting audio sessions short unexpectedly.
Why the SRS-XP700 audio distorts before the battery indicator hits empty
At high volume, the XP700's Class-D amplifier draws current in sharp spikes. As cell capacity degrades, internal resistance rises and the pack can no longer supply those spikes without a voltage drop. The speaker's amplifier clips before the battery gauge reads zero because the voltage sag happens faster than the fuel gauge updates. If you hear distortion at 30–40% indicated charge, the cell's internal resistance has risen enough that usable voltage is already below the amplifier's clean operating threshold — around 7.0V under load.
SRS-XP700 not waking from USB-C after sitting unused for weeks
Li-ion cells self-discharge at roughly 2–3% per month. If the speaker sits stored long enough, the pack drops below the USB-C Power Delivery minimum acceptance voltage — typically under 6V — and the charger handshake fails entirely, leaving the speaker unresponsive. The BMS on this pack includes a recovery path: connect a USB-C charger rated at 18W or higher and hold the power button for 10 seconds to force the BMS into wake mode. If the cell rested above 5.5V, the pack will begin accepting charge within 60 seconds.
