About this replacement

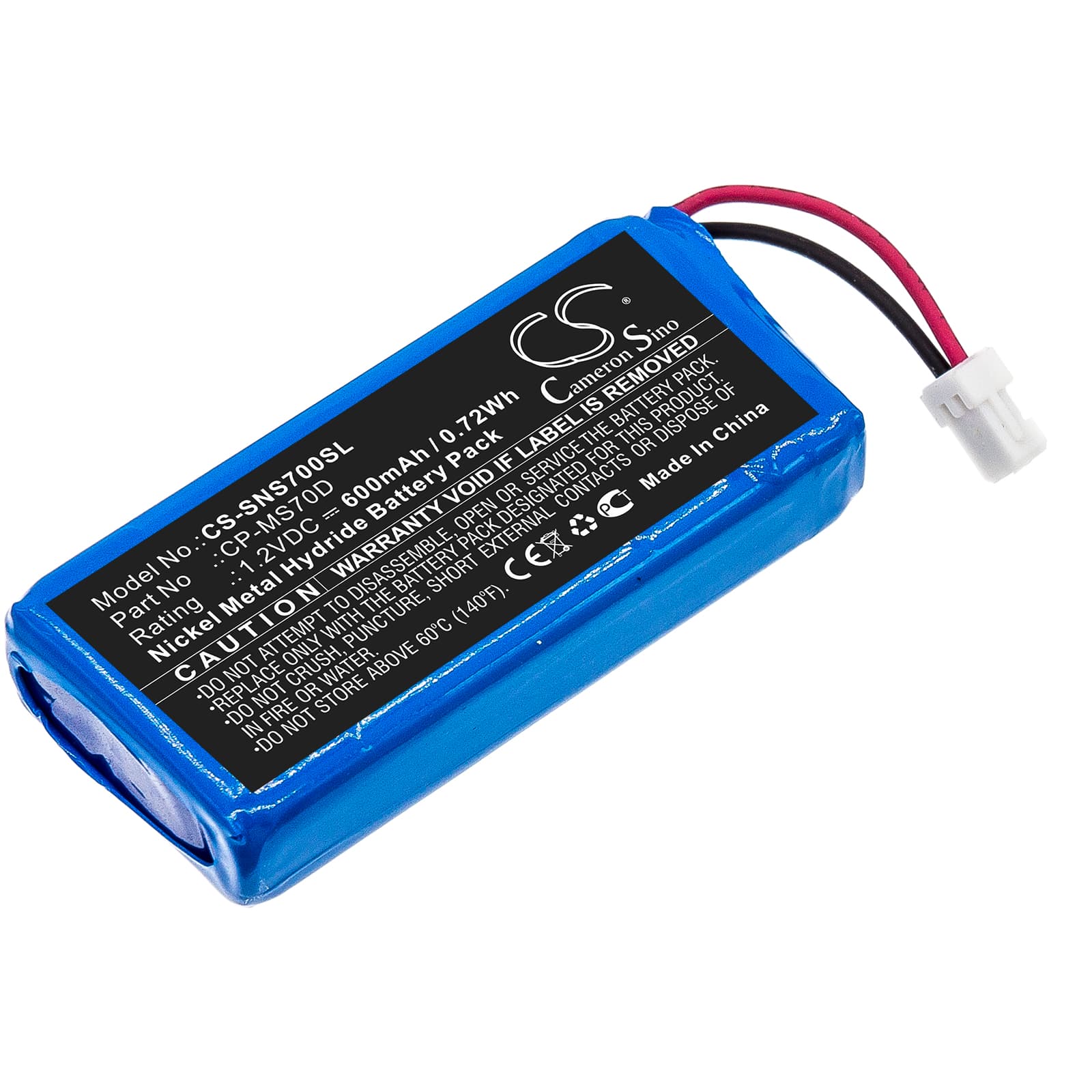

Sony Walkman NW-MS70D / NW-MS90D — 1.2V Ni-MH Replacement Battery (CP-MS70D)
This is a 1.2V, 600mAh Ni-MH replacement battery for the Sony Walkman NW-MS70D and NW-MS90D portable digital audio players. It matches the OEM part number CP-MS70D and fits the original battery compartment directly. Voltage, capacity, and connector spec are held to the same figures as the stock cell.
- NW-MS70D and NW-MS90D compatibility: Both models share the same 1.2V Ni-MH cell format, battery compartment dimensions, and charge circuit. A single cell swap covers either unit without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the NW-MS70D and confirmed the device's charge circuit accepted it without fault. The BMS completed a full charge cycle and released the player for normal use.
- First charge after a long storage gap: Ni-MH cells lose charge sitting on a shelf. If the player has been unused for months, connect it to the charger and leave it for at least 30 minutes before pressing power. The device's charge circuit needs to detect a minimum cell voltage before it will pass current to the player logic board.
Why the NW-MS70D won't wake after extended storage
Ni-MH cells self-discharge over time. After months of storage, cell voltage can drop below the threshold the player's protection circuit requires to boot. The device looks dead even with a brand-new replacement installed if that cell shipped partially discharged. Connecting the charger first — before pressing any button — allows the circuit to trickle current into the cell until it crosses the minimum threshold, typically around 1.0V, at which point normal charging resumes.
Battery percentage jumping erratically after a cell swap
The NW-MS70D estimates remaining charge by tracking voltage against a reference curve calibrated to the original cell. A new cell has a slightly different discharge curve until it completes a few full cycles. This causes the indicator to jump or show an unexpected level in the first few charges. Run two full charge-to-discharge cycles and the indicator stabilises as the firmware recalibrates its voltage thresholds to the new cell.
