Sony Xperia Touch G1109 — 11.1V Li-ion Replacement Battery (LIP3116ERPC)

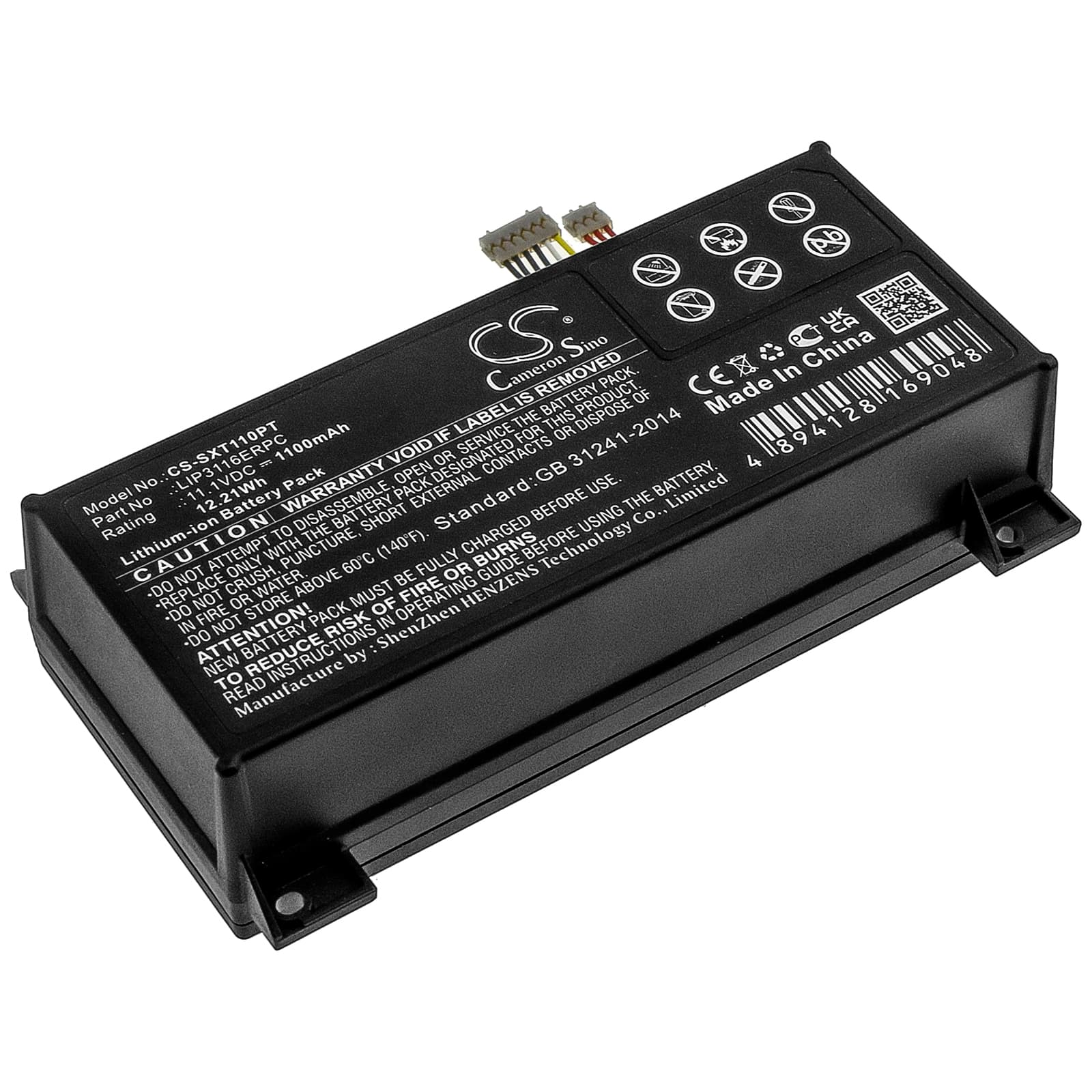

This 11.1V, 1100mAh Li-ion battery replaces the OEM LIP3116ERPC in the Sony Xperia Touch G1109 portable interactive projector. It restores the unit's ability to project and accept touch input away from a wall outlet. Capacity is 12.21Wh, matching the original cell specification.
- G1109 platform fit: The Xperia Touch G1109 uses an 11.1V three-cell Li-ion pack with a BMS that handshakes over the data line. A mismatched cell count or voltage rail causes the projector to refuse boot — this pack uses the correct cell configuration and connector pinout for that handshake to complete.
- Bench tested on actual hardware: We cycled this pack on a G1109 unit at standard and eco lamp settings. The BMS balanced correctly across all three cells and the projector exited standby without triggering a protection cutoff at either brightness level.
- Lamp brightness setting on battery: Set the G1109 to eco mode when running on battery. Full lamp brightness pulls 30–40% more current than eco mode, which causes the battery voltage to sag faster and trips the BMS cutoff earlier — eco mode delivers the same projectable image in most indoor environments.
Why the Xperia Touch G1109 shuts off before the battery indicator reaches empty
The G1109's lamp module requires a minimum supply voltage to sustain its output. That threshold sits higher than the BMS low-cell cutoff voltage. When the pack voltage drops to the lamp's minimum floor under load — typically around 9.0V on a degraded or heavily drawn cell — the projector cuts power to protect the lamp, even if the on-screen battery indicator still shows charge remaining. This is a load-dependent shutdown, not a faulty battery. Switching to eco lamp mode lowers current draw and keeps cell voltage above that floor for longer.
G1109 showing "charging" but battery percentage not increasing
The internal charger in the G1109 checks cell voltage before it begins a charge cycle. If the pack has dropped below approximately 2.5V per cell — common in batteries that have sat unused for months — the charger enters a trickle pre-charge phase that can last 30–60 minutes before normal charge current resumes. During this phase the charging indicator is active but the percentage display stays flat. Leave the unit plugged in and do not interrupt the session. If percentage remains static beyond 90 minutes, check that the USB-C input is delivering full rated voltage — a weak charger or damaged cable limits the input and stalls the cycle.
