About this replacement

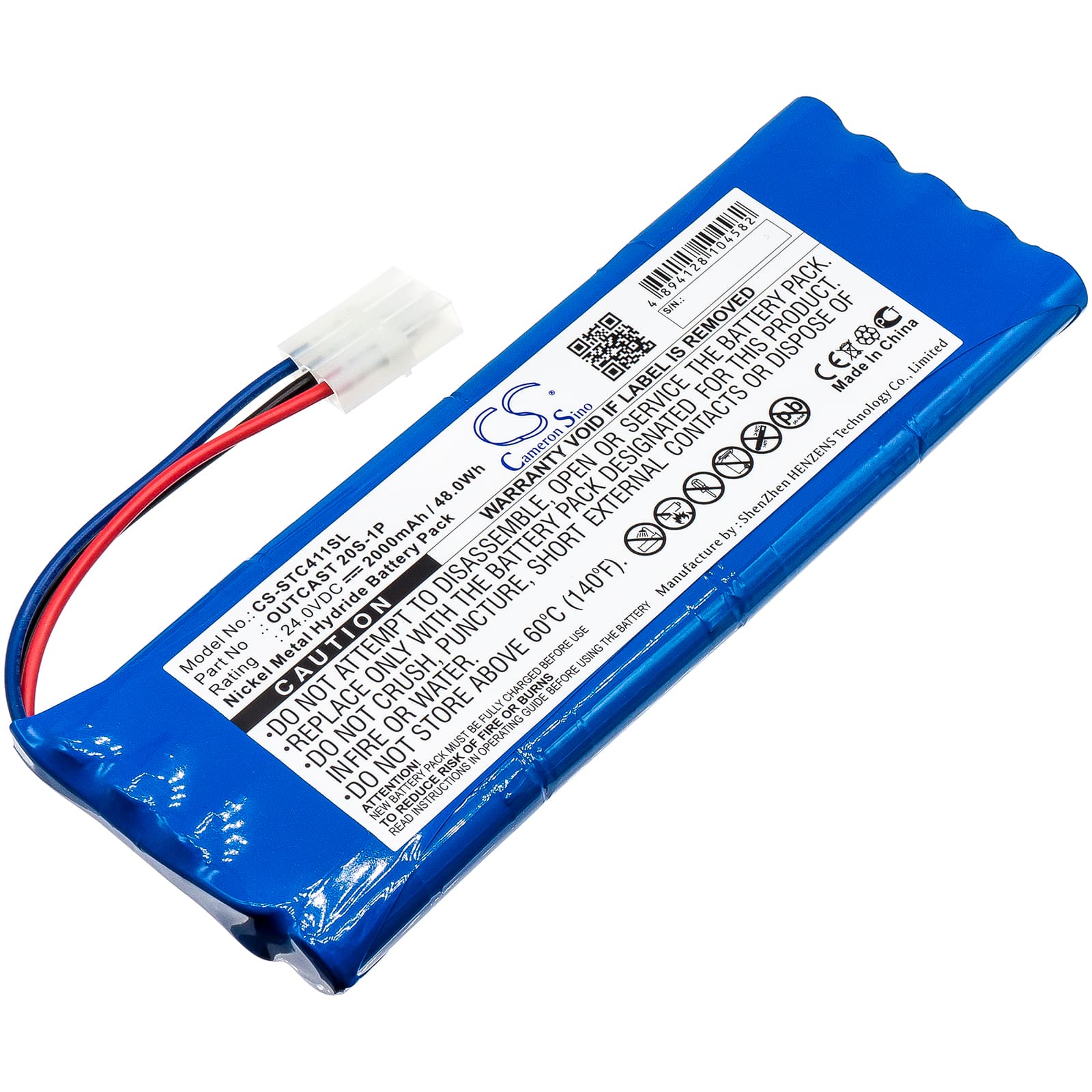

Soundcast Outcast ICO411a — 24V Ni-MH Replacement Battery (OUTCAST 20S-1P)
This is a 24V, 2000mAh Ni-MH replacement battery for the Soundcast Outcast ICO411a and ICO410 portable outdoor speaker series. It slots into the same battery compartment as the original pack and restores full wireless audio playback. Capacity is 48Wh, matching the stock specification.
- Outcast ICO410 and ICO411a series compatibility: These models share the same 24V battery rail, connector layout, and BMS handshake protocol across the ICO410, ICO411a, ICO411a-4N, and ICO410-4n variants. The pack communicates state-of-charge to the speaker's onboard fuel gauge over the same signal line in all four units.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the ICO411a platform. The BMS accepted charge from the standard Soundcast wall adapter without fault codes, and voltage held steady through sustained high-volume playback where amplifier current draw peaks.
- Monthly full-discharge cycle for Ni-MH chemistry: Ni-MH cells in constant partial-charge use develop voltage depression — the pack appears full but cuts out early. Run the speaker to below 10% indicator at least once a month before recharging to keep cell memory in check and fuel gauge calibration accurate.
Why the Outcast ICO411a shows full charge but audio drops mid-session
Ni-MH cells that have been shallow-cycled — repeatedly topped off before dropping below 50% — develop a false voltage plateau. The speaker's fuel gauge reads that plateau as a full pack, but usable capacity is a fraction of the rated 2000mAh. When amplifier current spikes during loud or bass-heavy audio, the cell voltage collapses faster than the gauge can track. The result is sudden audio cutout or speaker shutdown while the indicator still shows bars. Replacing with a fresh pack and running at least one full discharge cycle below 10% resets the baseline.
Audio distorting before the battery indicator reaches empty
This is amplifier clipping under voltage sag — not a speaker or driver fault. As the Ni-MH pack discharges, internal resistance rises and the voltage delivered to the amplifier board drops below what it needs to reproduce clean peaks at high volume. The amp clips the waveform before the battery monitor triggers a low-charge warning. You'll hear it as harsh, crackly distortion on transients while the indicator still shows charge. If the pack is original and over two years old, internal resistance is the likely cause — check resting voltage after a full charge; anything below 26V points to a degraded pack.
