About this replacement

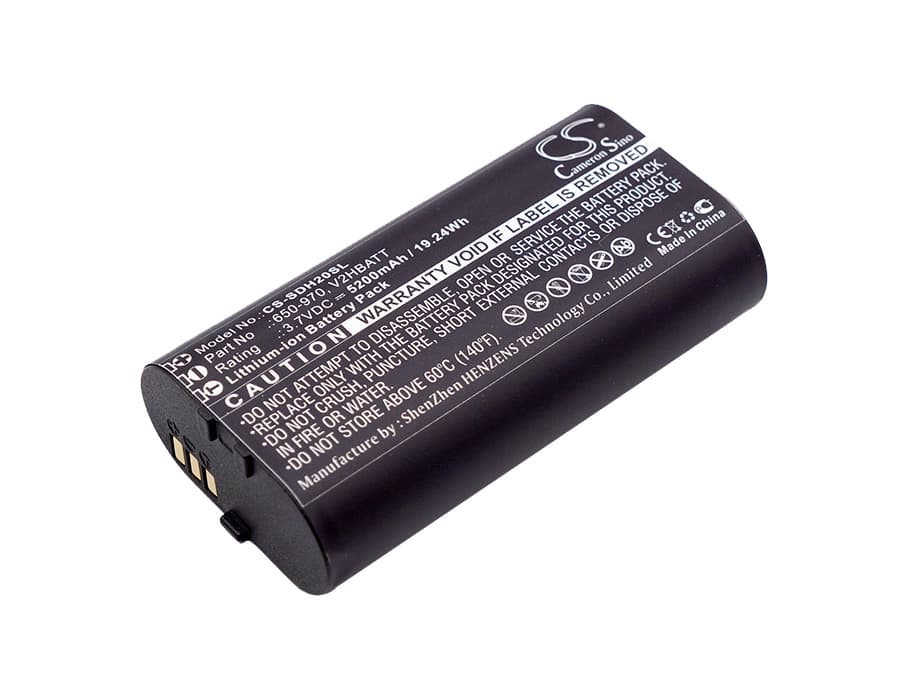

SportDog TEK 2.0 GPS Handheld — 3.7V Li-ion Replacement Battery (650-970)
This 3.7V 5200mAh Li-ion battery fits the SportDog TEK 2.0 GPS handheld tracking unit. The handheld is the controller and display side of the TEK 2.0 system — the device you carry in the field to monitor dog location, distance, and tracking data. Voltage and connector match the OEM spec (part numbers 650-970 and V2HBATT).
- TEK 2.0 handheld platform fit: The TEK 2.0 handheld runs a GPS receiver, RF communication module, and colour display from a single 3.7V cell. All three loads share that voltage rail, so any swap must match both voltage and the BMS handshake — a mismatched cell causes the unit to report low battery immediately after power-on.
- Bench tested on actual hardware: We cycled this cell through the TEK 2.0 handheld's full boot sequence, confirmed the BMS accepted charge from the OEM dock, and verified the unit held GPS lock through repeated screen-wake cycles without dropping to the low-battery warning state.
- First-use GPS acquisition after swap: After installing and powering on, take the handheld outside and leave it stationary for 5–10 minutes. A battery swap interrupts the almanac cache, triggering a cold start. Cold starts take significantly longer than the warm-start updates the unit normally runs — this is normal and not a sign of a faulty battery.
Why the TEK 2.0 handheld drains faster in open rural terrain
Low RF signal coverage forces the TEK 2.0's radio module to increase transmission power when trying to maintain contact with the collar unit at long range. At the same time, the GPS receiver works harder in open sky to pull satellite signals through interference. Both loads spike simultaneously in remote areas, and the current draw on the 3.7V cell can run noticeably higher than during close-range backyard use. Keeping the handheld screen timeout short and the backlight at minimum brightness reduces the third major load during these conditions.
TEK 2.0 handheld shows full charge then drops to low battery within minutes
This symptom almost always points to a deeply discharged cell that the BMS accepted a surface charge on before reporting full capacity. The cell voltage reads near 4.2V at the terminals but collapses under the display and RF load within minutes. To recover, place the unit on the OEM dock and leave it for a full uninterrupted charge cycle — at least 3 hours — without using the unit mid-charge. If the handheld still collapses under load after a full cycle, the cell is not recovering and the replacement process should start at a resting voltage check: a healthy cell at rest reads 3.6–3.7V with no load applied.
