About this replacement

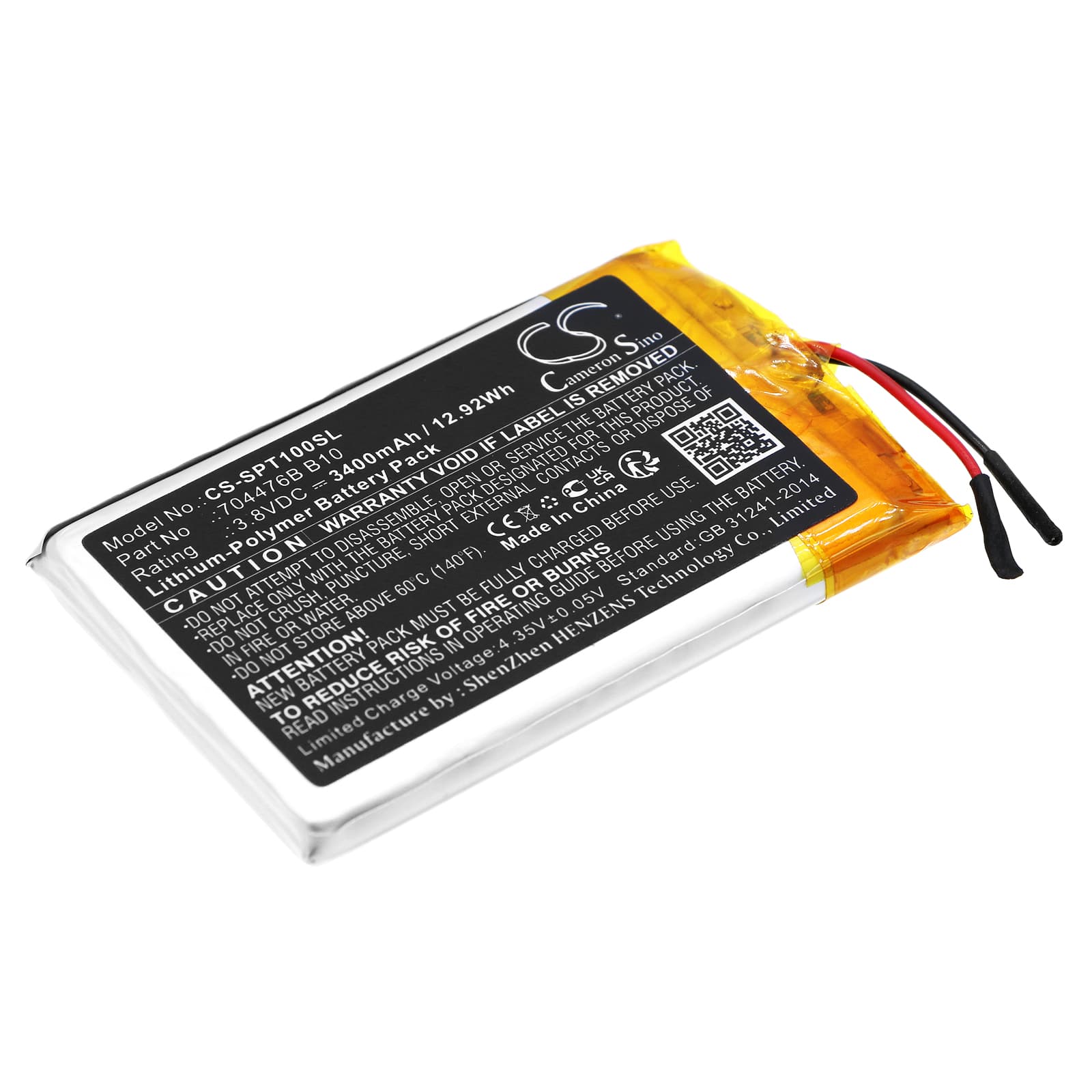

SPOT X / SPOTXB — 3.8V Li-Polymer Replacement Battery (704476B B10)
This 3.8V 3400mAh Li-Polymer cell replaces the original 704476B B10 battery in the SPOT X and SPOTXB satellite communicators. It powers the device's GPS receiver, two-way messaging radio, and emergency SOS transmitter. Capacity matches the original at 3400mAh (12.92Wh) — no compromise on the power budget these functions depend on.
- SPOT X and SPOTXB compatibility: Both units share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The 704476B B10 part number covers both variants — no hardware modification needed to fit either device.
- Bench tested on actual hardware: We cycled this cell through the SPOT X's full operating sequence — GPS acquisition, satellite message send, and SOS standby mode. The BMS held cutoff voltage correctly and the device drew consistent current across all three states without triggering a protection event.
- Cold-start reset after fitting: After installing this cell, take the device outdoors to an open sky and power it on before your next expedition. A full power interruption forces a GPS cold start — first satellite fix takes 5–10 minutes. Subsequent warm starts drop back under a minute once almanac data is rebuilt.
Why the SPOT X shuts off without warning at low battery
The SPOT X uses a fuel gauge IC that reads remaining capacity based on a stored charge curve. When that curve drifts — common after the original cell degrades — the on-screen percentage no longer matches actual cell voltage. The device hits the hardware cutoff at roughly 3.2V before the visual low-battery indicator fires. Fitting a fresh cell and running two full discharge cycles recalibrates the gauge so the warning appears when it should.
GPS accuracy dropping off during active tracking sessions
Some GPS units reduce receiver sensitivity as cell voltage falls toward the cutoff threshold — a power-saving measure built into the chipset. On the SPOT X, this shows up as position drift or wider error circles during long tracking sessions when the battery is below roughly 3.5V. The GPS and satellite modem are the two heaviest draws in the device, and they compete for current headroom on a degraded cell. A fresh 3400mAh cell restores the voltage headroom both subsystems need to run at full sensitivity simultaneously.
