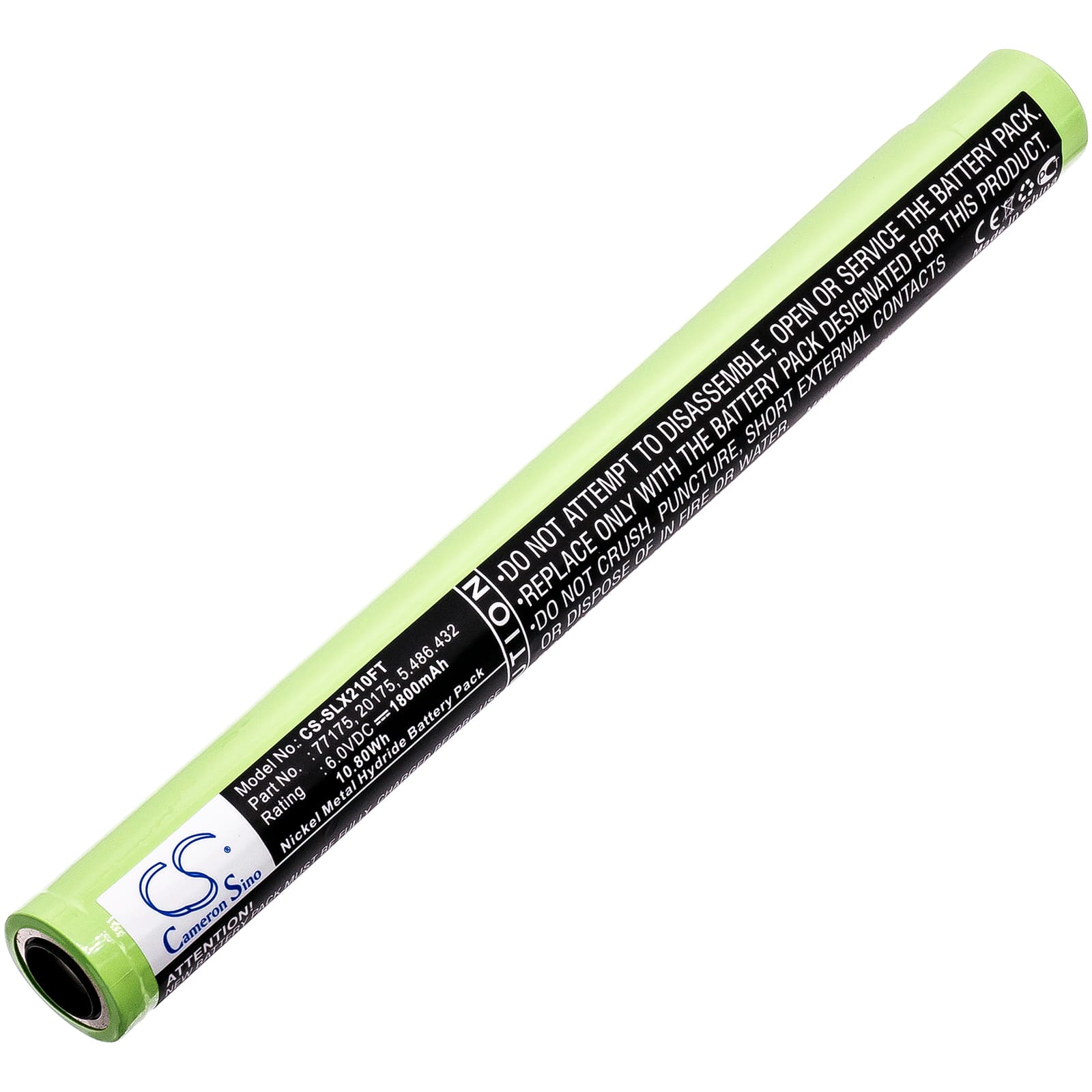

Streamlight Ultrastinger / SL20X-LED — 6V Ni-MH Replacement Battery (77175)
This is a 6V 1800mAh Ni-MH replacement battery for the Streamlight Ultrastinger and SL20X-LED rechargeable flashlights. It replaces OEM part numbers 77175, 20175, 5.486.432, and 9926J. Both torches run the same voltage rail and physical cell format, so this battery fits either model without modification.
- Ultrastinger and SL20X-LED compatibility: Both models share an identical cell housing diameter, contact orientation, and 6V nominal requirement. The driver circuit in each light draws current from the same cell configuration, so the same replacement battery works across both platforms without any wiring or adapter changes.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on the Ultrastinger body. The cell held voltage across the full draw cycle, and the light driver did not drop to a lower output mode until the cell reached genuine low-voltage cutoff — no premature stepping down.
- Single-cell replacement protocol: The Ultrastinger uses a single multi-cell stick pack, not separate individual cells. Because the entire pack is replaced as one unit, there is no cell-mixing concern here — just ensure the replacement pack is fully charged before the first operational use after installation to let the driver calibrate to the new cell's starting voltage.
Why the Ultrastinger steps down output before the low-battery indicator triggers
The Ultrastinger's driver circuit monitors cell voltage continuously. As the Ni-MH pack discharges, internal resistance climbs and the voltage sags under high current draw. The driver detects this sag and reduces output to protect the circuit before the pack reaches full cutoff. This is not a fault — it is the driver's brownout protection working as intended. If the light dims noticeably but the charge indicator still shows good, the pack is near the end of its usable charge cycle, not defective.
Flashlight loses full brightness almost immediately after a fresh charge
This is the primary sign that the original Ni-MH pack has lost capacity through cycle fatigue. Ni-MH cells degrade gradually, and a worn pack may show a full charge voltage at rest but collapse under the high-current draw of the Ultrastinger's beam. The cell voltage under load drops fast enough to trigger the driver's dimming threshold within seconds. Replace the pack and verify the new cell holds above 5.4V under load during the first full discharge cycle.
