About this replacement

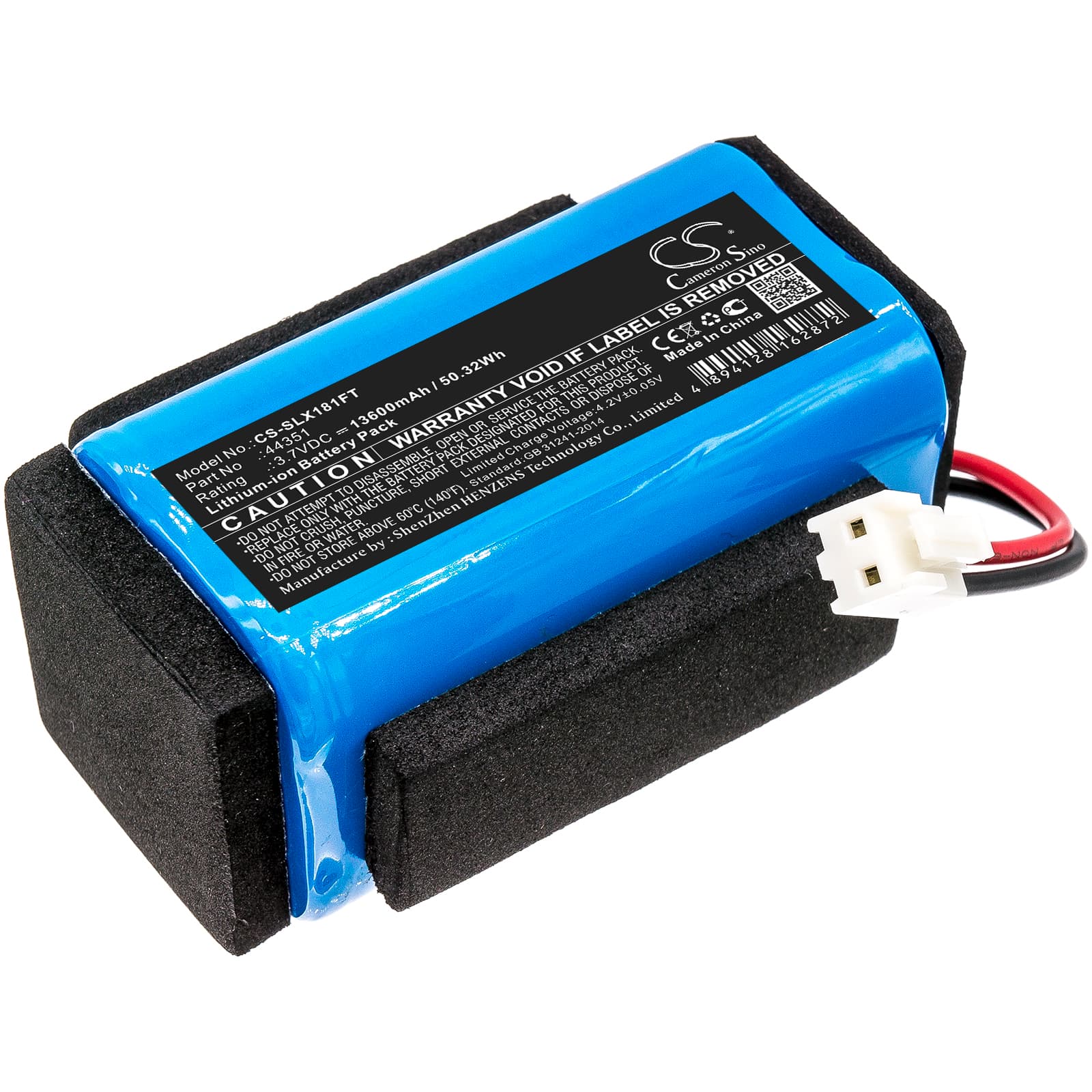

Streamlight Vulcan 180 — 3.7V Li-ion Replacement Battery (44351)
This 3.7V, 13600mAh Li-ion battery replaces the original cell in the Streamlight Vulcan 180 searchlight. The Vulcan 180 is a high-intensity handheld torch used in emergency response, rescue, and industrial environments. When the original cell degrades and the light can no longer hold a working charge, this is the direct replacement.
- Vulcan 180 compatibility: This battery fits both OEM part numbers 44351 and 44350. Both share the same cell format, voltage rail, and connector interface, so the same replacement covers either variant.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Vulcan 180 platform. The BMS accepted charge without faults, and the driver maintained full output through the top of the charge curve without stepping down prematurely.
- Single-cell replacement note: The Vulcan 180 runs one large-format cell. When you replace it, check the charge contacts inside the battery compartment for corrosion or oxidation — a resistive contact causes the driver to read a false low-voltage condition and dim early, even with a fresh cell installed.
Why the Vulcan 180 steps down to lower output before the indicator shows low
The Vulcan 180's driver monitors cell voltage in real time, not just state of charge percentage. At high output, the cell voltage sags under load — even when the resting voltage looks healthy. Once the driver sees the loaded voltage drop below its brownout threshold, it steps down beam intensity to protect the cell and maintain control. This is normal behaviour, not a fault. If it happens earlier than expected, check the contact resistance at the battery terminals — corrosion adds enough resistance to exaggerate the sag the driver sees.
Vulcan 180 shows full charge but output drops sharply within minutes of use
This points to a cell that holds resting voltage but has high internal resistance — common in aged lithium-ion cells. Under the high current the Vulcan 180 draws at full output, a high-resistance cell sags hard and fast, triggering the driver's protection circuit well before the cell is actually depleted. A healthy replacement cell at 3.7V nominal will flatten that sag curve. After fitting the new cell, run a full charge cycle before the first use — charge until the indicator shows complete, then verify the charger output is sitting at or above 4.1V before disconnecting.
