About this replacement
SUPRO XC03S57 / VCS66-X7 — 18V Li-ion Replacement Battery (DC-Y01-25)

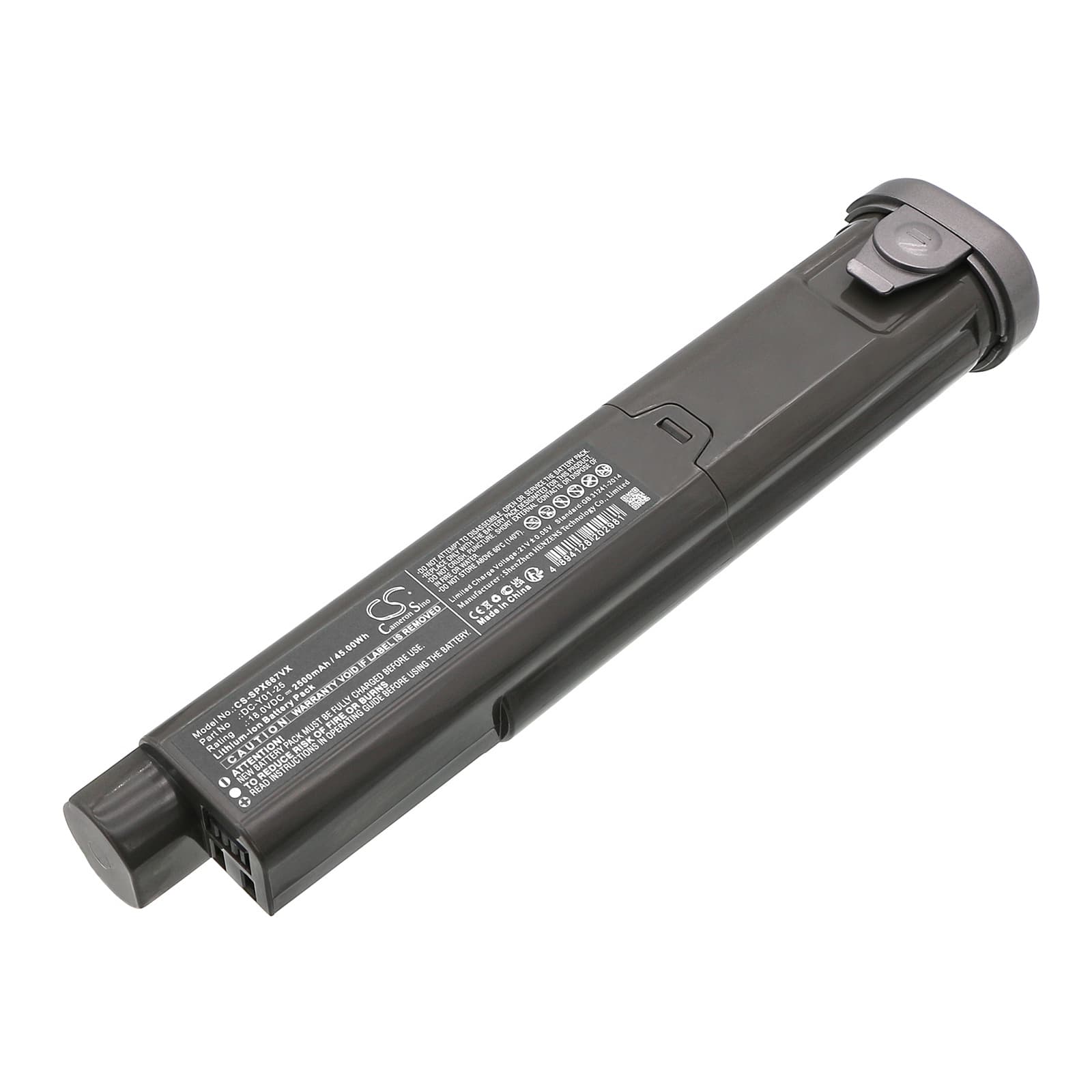

This is an 18V 2500mAh Li-ion battery pack for the SUPRO XC03S57 and VCS66-X7 cordless stick vacuums. It slots into the same battery bay as the original and carries the OEM part number DC-Y01-25. Capacity is rated at 45Wh — identical to the factory specification.
- XC03S57 and VCS66-X7 platform: Both models share the same 18V battery rail, connector housing, and BMS handshake protocol. A single cell replacement covers either unit without modification.
- Bench tested on actual hardware: We ran this pack through the XC03S57 motor controller under simulated floor and upholstery loads. The BMS held the 18V rail steady through the motor-start surge and did not trip under normal suction demand.
- Dock charging habit on the XC03S57: Do not leave the vacuum sitting on the charging dock between uses. Continuous trickle charge compresses cell capacity faster than intermittent charge cycles. Charge to full, then pull it off the dock.
Suction dropping before the battery indicator reaches low
The XC03S57 motor draws harder when airflow is partially restricted — a dirty filter forces it to work against back-pressure, pulling more current than rated. The BMS reads that overcurrent as a low-cell condition and begins throttling motor speed to protect the pack. This happens well above the actual low-battery threshold, so the indicator still shows charge remaining. Clean or replace the filter first — if suction recovers fully, the battery is not the issue.
Motor cuts out mid-use then comes back after a short pause
This is a BMS overcurrent trip, not a flat battery. Sustained restricted suction — usually a blocked nozzle or filter at saturation — pushes current draw above the BMS trip threshold. The BMS shuts the output rail, the motor stops, and the pack resets once internal temperature drops. Check the nozzle, hose, and filter before swapping the battery. If the cut-outs stop after clearing the blockage, the replacement cell is functioning correctly at its rated 18V output.
