About this replacement

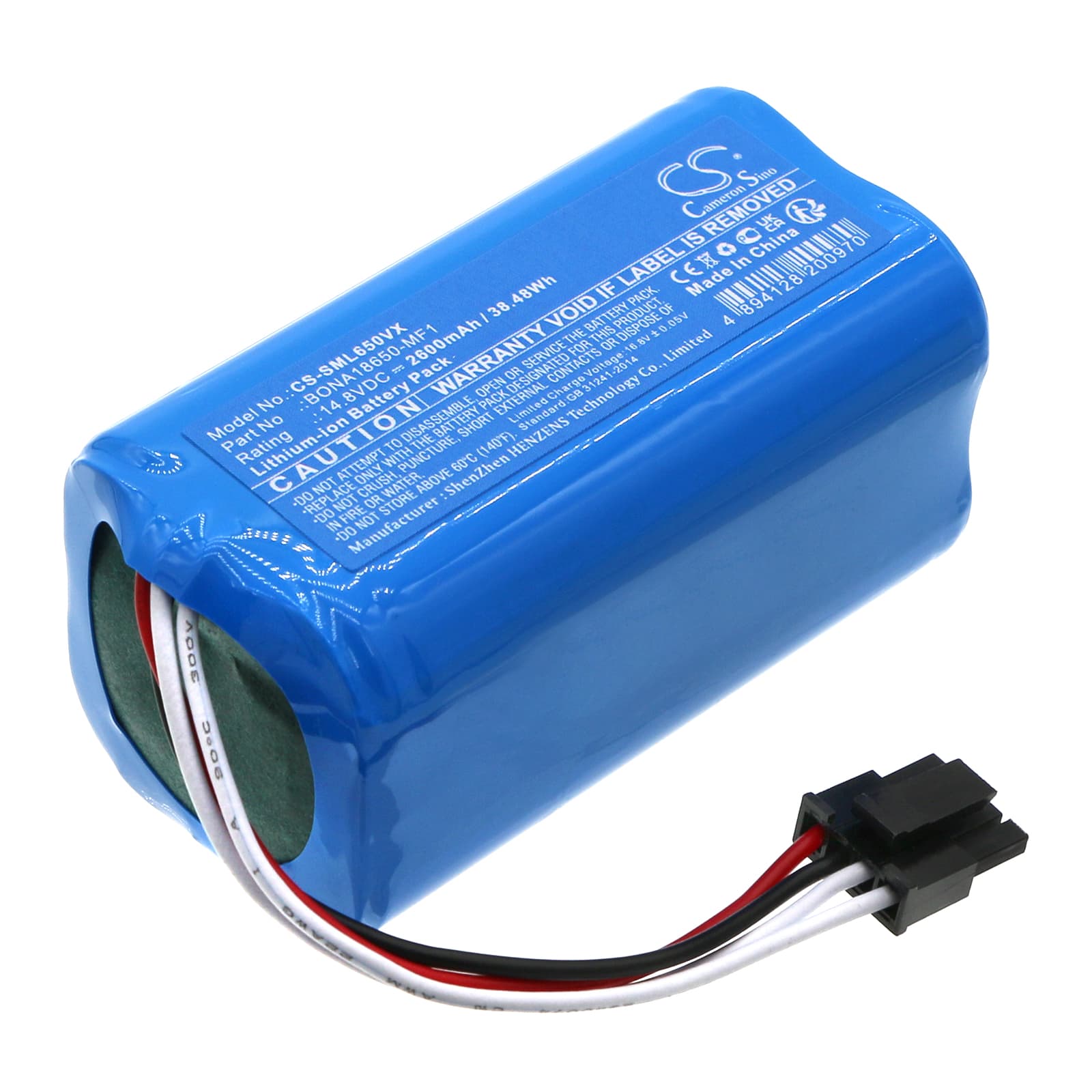

Symbo Laserbot 650 / xBot 5 Series — 14.8V Li-ion Replacement Battery (BONA18650-MF1)
This is a 14.8V 2600mAh Li-ion replacement battery for the Symbo Laserbot 650, xBot 5, and xBot 5 Pro cordless stick vacuums. It replaces OEM part numbers BONA18650-MF1 and BONA18650-M26. Fit it when the original cell no longer holds enough charge to complete a cleaning session.
- Laserbot 650 and xBot 5 compatibility: These three models share the same 14.8V four-cell Li-ion pack format, connector pinout, and BMS communication protocol. The motor controller pulls voltage from the same rail across all variants, so one cell covers all three.
- Bench tested on actual hardware: We ran this pack under sustained suction load and monitored BMS response across multiple discharge cycles. Overcurrent protection triggered correctly at the expected threshold, and the cell recovered cleanly on reconnect without requiring a manual reset.
- Dock charging habit on the Laserbot 650: Do not leave this vacuum sitting on the charging dock between every use. The Laserbot 650 dock does not interrupt charge once the cell is full — continuous trickle current accelerates capacity fade faster than normal cycle wear. Charge to full, then remove it from the dock.
Suction dropping before the battery indicator reaches low
The Laserbot 650 motor draws significantly more current when the filter is partially blocked or the dustbin is full. Under that extra load, cell voltage sags below the motor controller's threshold earlier than a clean-filter run would. The vacuum reads this as low power and reduces motor speed — even though the battery indicator still shows charge remaining. Clean the filter and empty the bin before assuming the battery is the cause. A healthy cell under clean-filter conditions should hold above 13.5V at mid-discharge.
Motor cuts out mid-use then comes back after a few seconds
This is a BMS overcurrent trip, not a dead battery. It happens when the motor sustains a high-draw state — typically from a blocked airpath or a jammed brush roll — and the protection circuit cuts output to prevent cell damage. The BMS resets automatically once current drops, which is why suction returns after a short pause. Clear the blockage first. If the cutout repeats on an unobstructed run, check that the replacement cell's BMS trip threshold matches the motor's rated draw — verify the pack is seated fully and the connector pins are clean.
