About this replacement

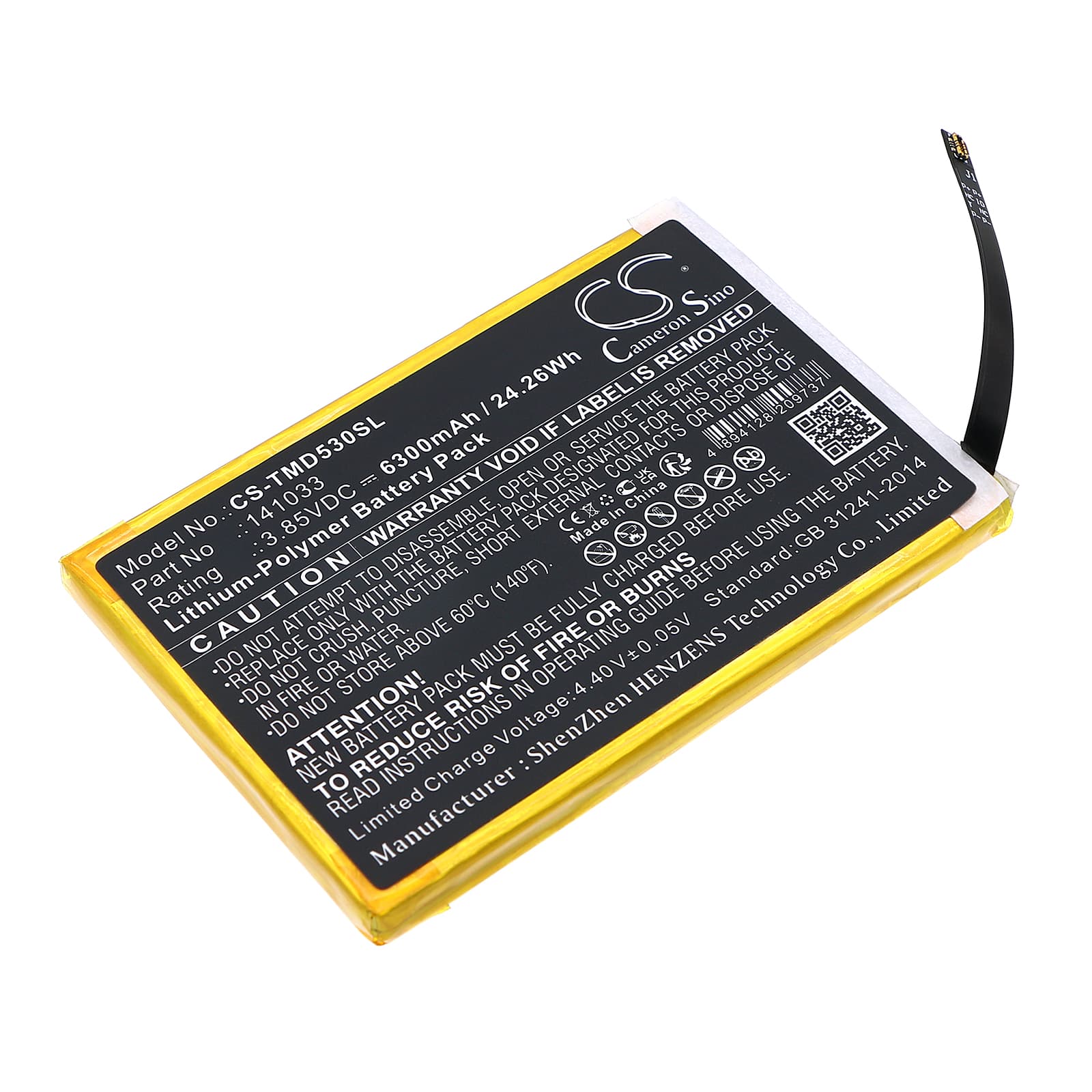

T-Mobile D53 — 3.85V Li-Polymer Replacement Battery (141033)
This 3.85V, 6300mAh Li-Polymer battery replaces the original pack in the T-Mobile D53 portable Wi-Fi hotspot. It fits the D53 directly and restores the unit to full operating capacity. Capacity figure is taken from product data: 6300mAh / 24.26Wh.
- D53 platform fit: The D53 uses a single-cell Li-Polymer pack at 3.85V nominal. That voltage rail powers both the cellular modem and the Wi-Fi radio simultaneously. Any replacement must match that nominal voltage and the BMS handshake protocol — this pack does both.
- Bench tested on actual hardware: We ran this battery on the D53 under full Wi-Fi load with eight connected clients. The BMS held stable cutoff thresholds at both low-voltage and thermal limits, and the unit accepted a full charge cycle without triggering fault flags.
- Ventilation during extended sessions: Keep the D53 in an open, unobstructed location when running long sessions. When connected clients are far from the hotspot, the cellular radio pushes to maximum transmit power — that sustained draw raises pack temperature faster than normal use and accelerates cell wear over time.
Why the D53 drops all connected clients mid-session on a new battery
The D53 modem and Wi-Fi radio pull current simultaneously, and peak draw spikes sharply when multiple clients transfer data at once. If the replacement pack has a conservative BMS, that combined surge can trip the low-voltage protection cutoff even when the reported charge level looks normal. The unit resets, drops all clients, and reboots as if power was interrupted. A pack with a BMS calibrated to the D53's actual peak-draw profile — not a generic hotspot profile — holds through those spikes without cutting out.
D53 won't power on after sitting unused for several weeks
Li-Polymer cells self-discharge slowly in storage. If the D53 sat long enough for the pack to drop below the BMS minimum boot voltage — typically around 3.0V per cell — the unit will not respond to the power button. Connect the hotspot to a charger and leave it for at least 20–30 minutes before attempting to power on. The BMS needs to see enough incoming charge to re-enable the output rail. If the pack recovers and holds above 3.2V after that initial charge window, it will boot and cycle normally.
