About this replacement

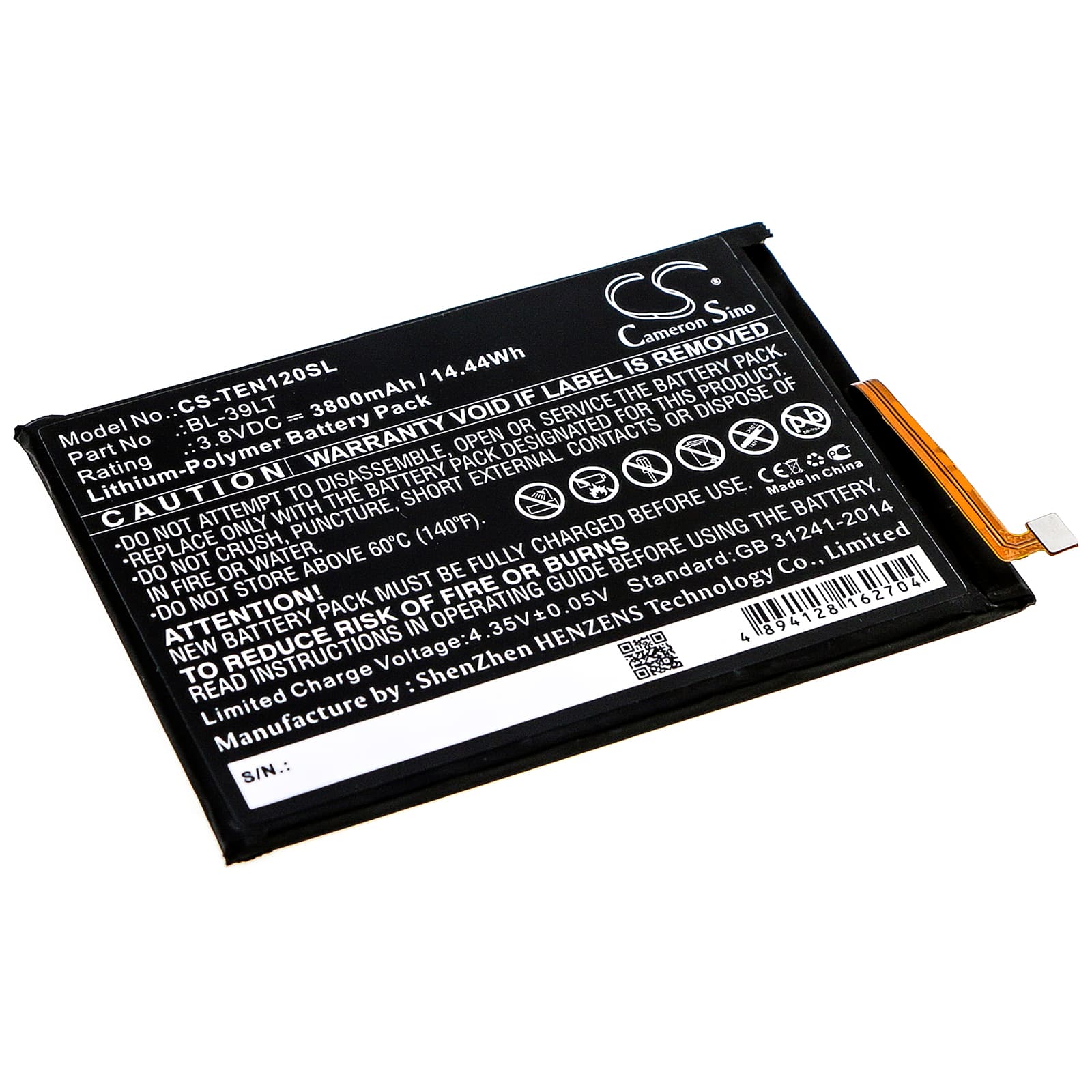

Tecno Camon 12 / Camon 15 — 3.8V Li-Polymer Replacement Battery (BL-39LT)
This is a 3.8V, 3800mAh (14.44Wh) lithium-polymer cell built to the BL-39LT specification. It fits the Tecno Camon 12 and Camon 15 smartphones. Both models share the same battery bay geometry, connector pinout, and BMS handshake protocol, so one cell covers both.
- Camon 12 and Camon 15 compatibility: These two devices use an identical battery slot width, the same four-pin connector, and the same BMS communication line. The fuel gauge IC on both reads cell chemistry and internal resistance from the same register set, so the replacement cell is recognised without any modification.
- Bench tested on actual hardware: We ran the BL-39LT through full charge-discharge cycles on a Camon 12 unit. The BMS accepted the cell on first connection, charge current ramped correctly through CC/CV phases, and no temperature fault flags were triggered during the test.
- Fuel gauge recalibration on first use: After fitting this cell, disable fast charging and complete one full discharge down to automatic shutdown, then charge to 100% without interruption. This gives the coulomb counter a clean reference discharge curve against the new cell before high-current charging cycles begin.
Sudden shutdown at 20–30% after fitting the BL-39LT
A new cell has a slightly different internal resistance profile than the worn cell the fuel gauge IC was calibrated against. Under high-load bursts — mobile data, camera, or screen at full brightness — the voltage drops sharply enough to cross the BMS low-voltage cutoff even though the reported percentage says there is charge remaining. This is a calibration gap, not a faulty battery. One full discharge-charge cycle without interruption resets the coulomb counter to the actual discharge curve of the new cell. After that cycle, shutdowns at inflated percentages stop.
Phone shows wrong battery percentage after the cell swap
The fuel gauge IC stores a learned model of the old cell's discharge curve in memory. When a new cell goes in, that stored model no longer matches the actual voltage-to-capacity relationship of the replacement. The OS reads percentage from the fuel gauge, not from voltage directly, so the displayed number drifts — often reading high early and then dropping suddenly. Force a full recalibration: drain the phone to automatic shutdown, then charge uninterrupted to 100% with the screen off. Check that the percentage tracks smoothly from 100% down on the next cycle.
