About this replacement

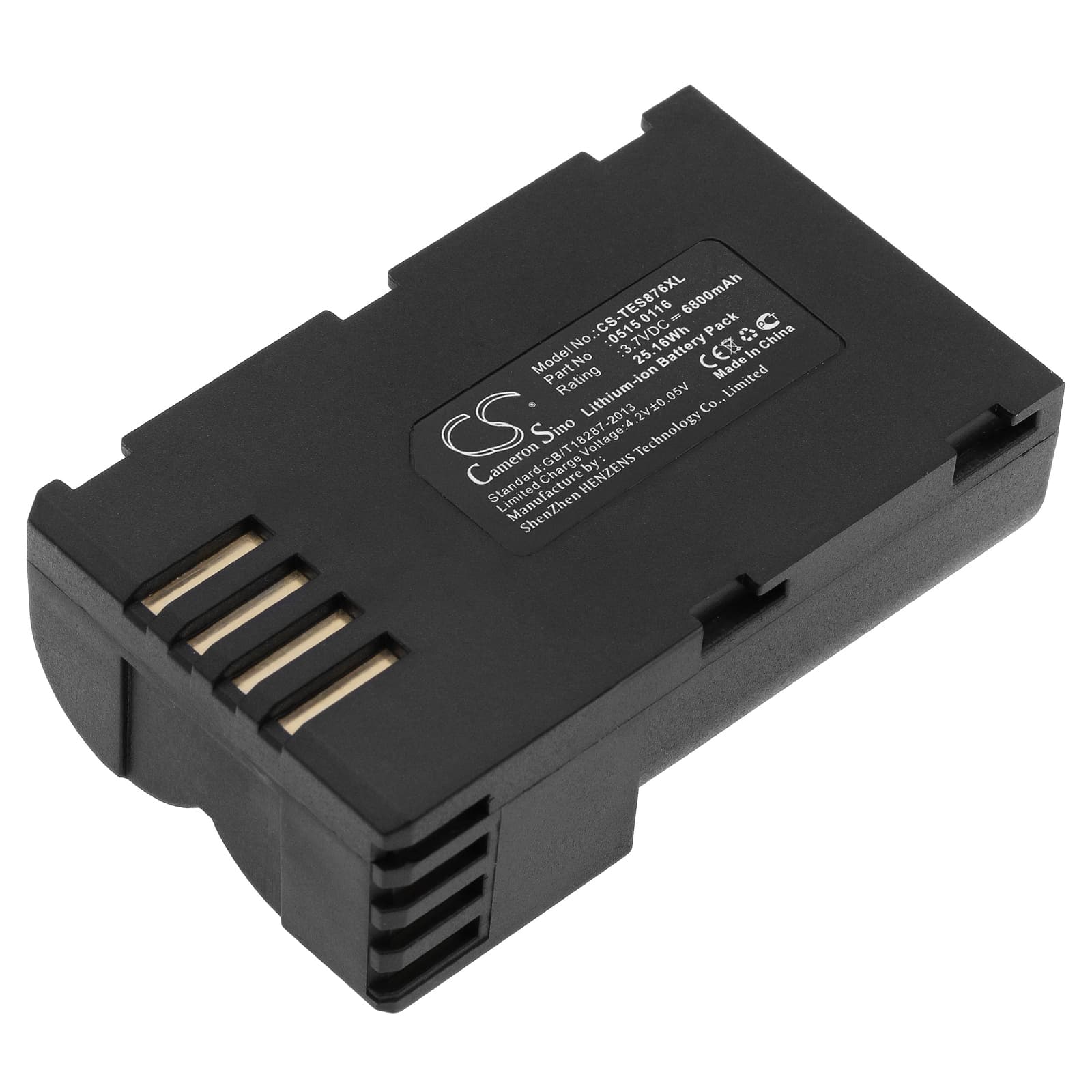

Testo 876 — 3.7V Li-ion Replacement Battery (0515 0116)
This 3.7V, 6800mAh Li-ion battery replaces the OEM pack in the Testo 876 thermal imaging camera. It fits the 876 directly and uses the same connector and BMS handshake as the original. Capacity is sourced from the product data — 25.16Wh total energy.
- Testo 876 compatibility: The 876 uses a single-cell 3.7V architecture with a proprietary BMS handshake over the pack's communication line. This replacement matches that voltage rail and data line protocol, so the camera's battery menu reads state-of-charge correctly without fault codes.
- Bench tested on actual hardware: We ran the pack through the 876's initialisation sequence and monitored BMS response during detector array power-up — the brief current spike when the IR sensor initialises did not trip the protection circuit. Cell voltage held stable across repeated cold-start cycles.
- First-use calibration cycle: After installing this pack, run a full calibration cycle through the instrument menu before heading into the field. The 876 maps battery state during calibration, and skipping this step causes premature low-battery warnings during your first measurement session.
Testo 876 shutting down mid-survey despite showing charge remaining
The 876's IR detector draws a sharp current spike each time it re-initialises after a standby timeout. If the cell voltage has sagged slightly under sustained load, this spike can push the pack's BMS protection threshold — triggering an abrupt shutdown even when the display shows 30–40% remaining. The root cause is voltage sag under transient load, not actual capacity depletion. Replacing an aged pack with a fresh 6800mAh cell raises the headroom between operating voltage and the BMS cutoff floor, eliminating false shutdowns.
Testo 876 not recognising a new pack after the camera sat unused for months
Li-ion cells self-discharge over storage, and if the pack drops below approximately 2.5V per cell the BMS enters a low-voltage lockout state to prevent damage. In this state, the 876 may show no battery icon or refuse to power on even after placing the pack on charge. Connect the camera to its official charger and leave it for at least 60 minutes without interruption — the charger applies a trickle current that nudges the cell voltage above the BMS recovery threshold, typically around 2.8V, at which point normal charging resumes.
