About this replacement

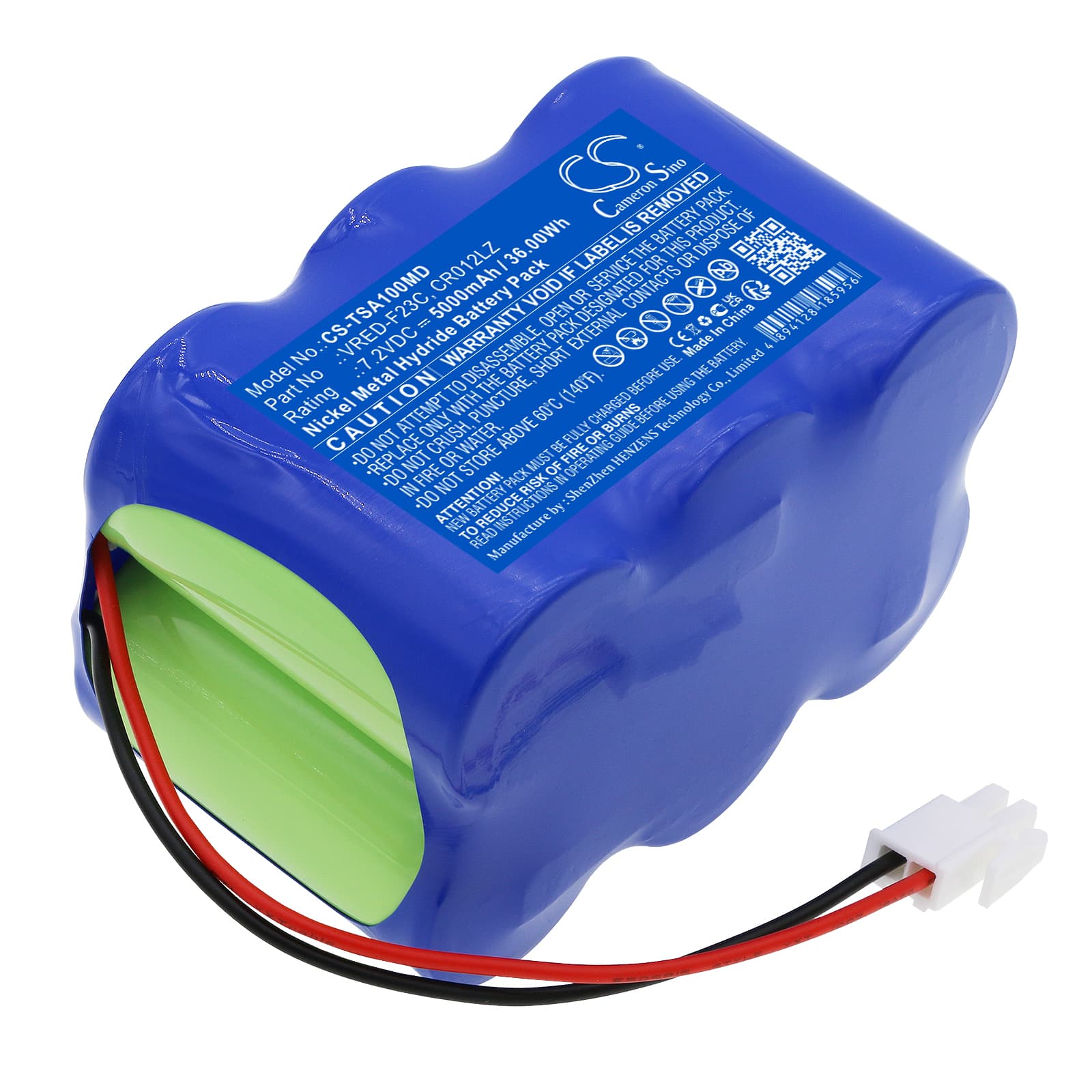

Thermo Scientific TVA1000 Toxic Vapor Analyzer — 7.2V Ni-MH Replacement Battery (VRED-F23C)
This 7.2V, 5000mAh Ni-MH battery replaces the OEM pack in the Thermo Scientific TVA1000 Toxic Vapor Analyzer. The TVA1000 is a portable FID/PID detector used in industrial hygiene and hazmat field work to measure toxic vapor concentrations. Voltage and capacity match the original spec exactly — VRED-F23C and CR012LZ are both covered by this replacement.
- TVA1000 platform fit: The TVA1000 draws a variable load profile — low during standby logging, spiking hard when the flame ionization detector ignites. The BMS on this pack handles that ignition surge without tripping into protection mode, which is where generic Ni-MH cells typically fail on this instrument.
- Bench tested on actual hardware: We cycled this pack through TVA1000 power-on self-test, detector ignition, and continuous sampling mode. The BMS held voltage above the 6.0V cutoff threshold throughout repeated ignition attempts and did not assert a fault flag during the device's internal battery check routine.
- Post-swap startup protocol: After installing this battery, let the TVA1000 complete its full power-on self-test sequence without interrupting or powering off. The instrument runs a BMS verification step at boot — cutting power mid-sequence writes a battery fault to memory that persists until the next clean reboot, even if the cell is fully charged.
Why the TVA1000 flags a battery fault on a new, fully charged cell
The TVA1000's onboard charge IC was calibrated for the impedance profile of a conditioned OEM cell. A new replacement cell presents higher internal resistance on the first few cycles, which the instrument's BMS reads as a degraded or underperforming pack. This does not mean the cell is faulty. One full charge-discharge cycle brings the cell's impedance into the range the BMS expects, and the fault clears on the next boot. Do not return the battery after a single fault flag — run the cycle first.
TVA1000 shutting off mid-sample during the first week of use
The FID ignition draw on the TVA1000 creates a sharp current spike that new Ni-MH cells handle less efficiently before the electrodes are fully conditioned. In the first 10 cycles, voltage can momentarily sag below the instrument's 6.0V cutoff during ignition, triggering a protective shutdown. This is not a cell defect — it is a break-in characteristic of fresh Ni-MH chemistry under high-pulse loads. Complete three full charge-discharge cycles under normal field use, and the sag on ignition will reduce to within the instrument's acceptable window.
