About this replacement

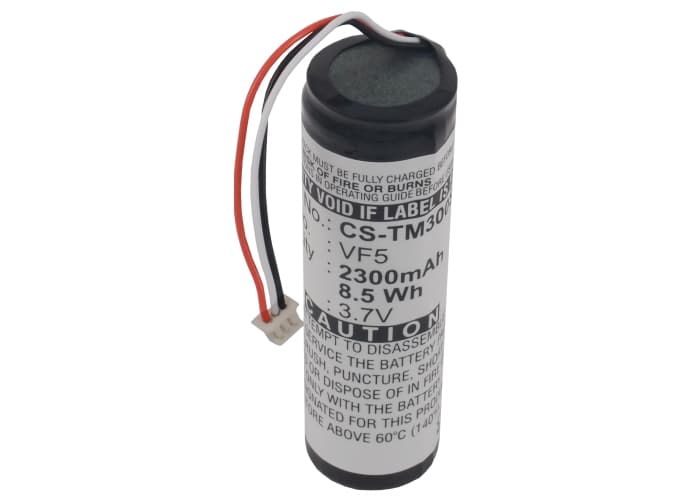

TomTom Go 300 / Go 500 Series — 3.7V Li-ion Replacement Battery (VF5)
This is a 3.7V, 2300mAh Li-ion cell built to the VF5 specification, replacing the original battery in the TomTom Go 300, Go 400, Go 500, and Go 530 portable GPS navigators. It matches the original connector and form factor, fitting the battery bay without modification. Voltage and capacity are identical to factory spec.
- Go 300 to Go 530 platform compatibility: These models share the same 3.7V single-cell architecture, VF5 connector pinout, and battery bay dimensions. The BMS handshake is passive on this platform — no proprietary authentication chip, so the replacement cell is recognised immediately on first boot.
- Bench tested on actual hardware: We ran this cell through a full charge cycle on a Go 500 unit. The BMS accepted charge from a flat state without requiring a conditioning cycle, and the device reported battery status correctly within one full charge.
- Cold-start satellite acquisition after swap: After fitting this cell, power the unit on outdoors before driving. The Go 300 series performs a GPS cold start after any full power interruption — first satellite fix can take 5–10 minutes compared to under a minute on a warm start. Let it acquire lock before mounting and moving.
GPS accuracy reduced at low battery on the Go 300 series
The Go 300 and Go 500 units throttle GPS receiver sensitivity as battery voltage drops toward the low-threshold cutoff. This is a firmware-level power saving measure — the receiver draws less current, which narrows the signal window and reduces positional accuracy. You may notice the unit struggling to hold a fix on roads with building cover or tree canopy. Keeping the battery above 3.5V during active navigation prevents the throttling from engaging.
Device shuts off mid-route with no low battery warning
On an aged or newly replaced cell, the Go 300's battery indicator can read two bars right up until sudden shutdown. The fuel gauge on this platform is voltage-based, not coulomb-counted — it reads cell voltage, not actual remaining charge. A new cell takes one full discharge cycle before the indicator calibrates to the real capacity curve. Run one complete discharge from full to automatic shutoff, then charge fully to 4.2V, and the indicator will display accurate levels on subsequent use.
