About this replacement

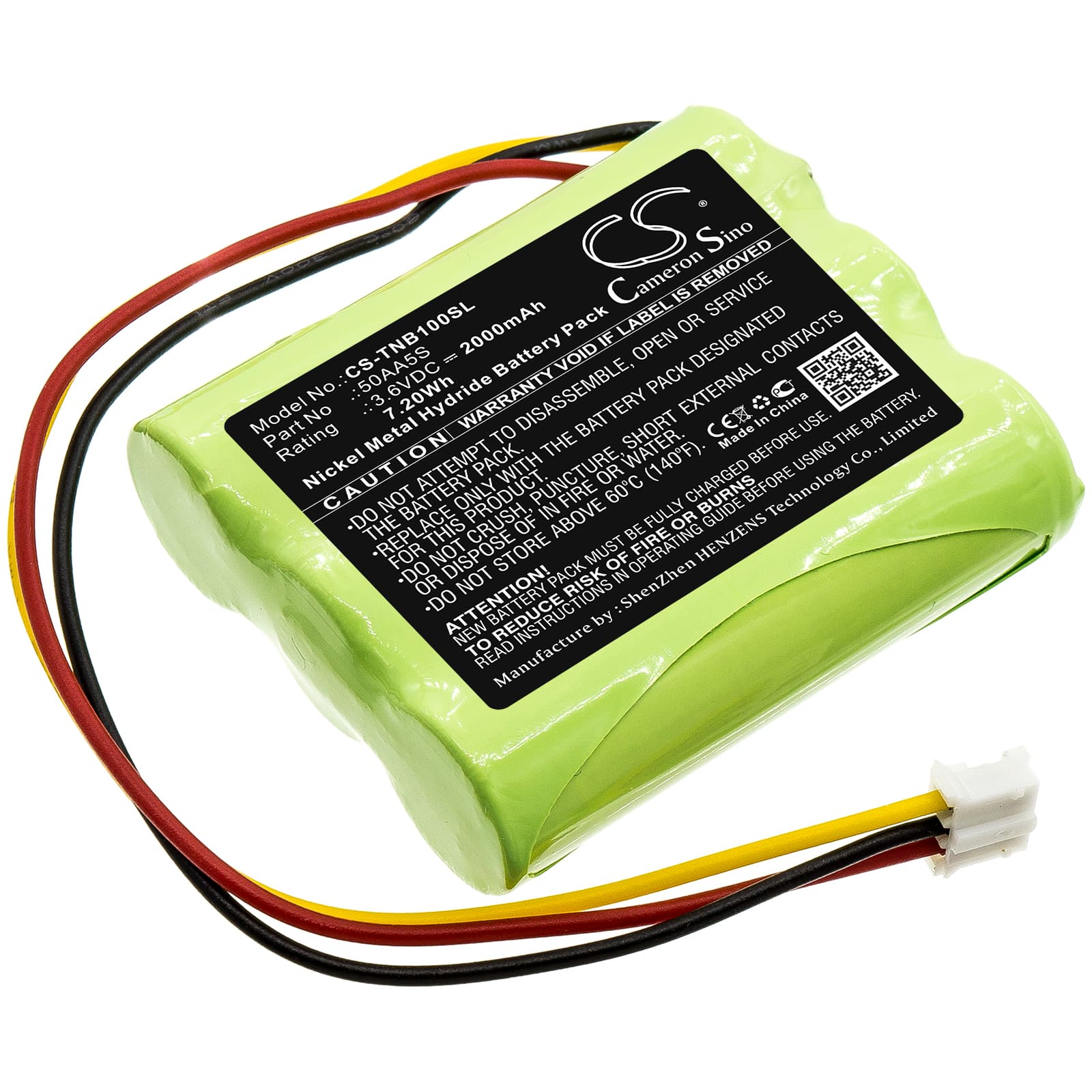

Tonies Tonie Box — 3.6V Ni-MH Replacement Battery (50AA5S)
This 3.6V 2000mAh Ni-MH battery is a direct replacement for the Tonie Box — the interactive children's audio player that plays stories and music through NFC figurines. When the original cell degrades, audio cuts short and the device stops holding a usable charge. Swapping the 50AA5S cell restores full capacity to the pack.
- Tonie Box compatibility: The Tonie Box draws a steady low-current load during audio playback combined with periodic NFC polling for figurine reads. The 50AA5S cell matches the original voltage rail and physical footprint — 52.10 × 43.50 × 15.00mm — so the pack seats correctly without bending the contacts.
- Bench tested on actual hardware: We cycled this cell through NFC reads, sustained audio output, and low-charge cutoff. The BMS held the discharge floor cleanly and accepted a charge from the standard Tonie Box USB input without fault flags.
- Ni-MH cycle care for daily use: Ni-MH cells in a Tonie Box suffer memory effect faster than Li-ion when the device is always topped off. Let the box run down to near-empty at least once a month before recharging to maintain real-world capacity over time.
Why the Tonie Box cuts out before the charge indicator hits empty
A degraded Ni-MH cell loses capacity unevenly — voltage holds steady for most of the discharge curve then drops sharply at the end. The Tonie Box interprets that cliff as a depleted pack and shuts off, even though the fuel gauge still shows partial charge. This becomes more pronounced as the cell ages, because internal resistance rises and the voltage drop under load happens earlier. Replacing the cell resets the discharge curve to factory spec and eliminates the premature cutoff.
Tonie Box not turning on after sitting unused for several weeks
Ni-MH cells self-discharge at roughly 1–3% per day at room temperature, so a Tonie Box left on a shelf for a month can arrive at a voltage too low for the BMS to accept a normal charge. The device appears completely dead — no LED, no response to USB. Connect the charger and leave it for at least 60 minutes before pressing power; most BMS circuits trickle-charge a deeply discharged Ni-MH cell back above the minimum acceptance threshold before switching to normal charge current. If the LED still does not respond after 90 minutes on charge, the original cell has likely reached end-of-life and needs replacement — target a resting voltage of at least 3.0V before the BMS will resume standard charging.
