Topcon ES Total Station Series — 7.4V Li-ion Replacement Battery (BT-L2)

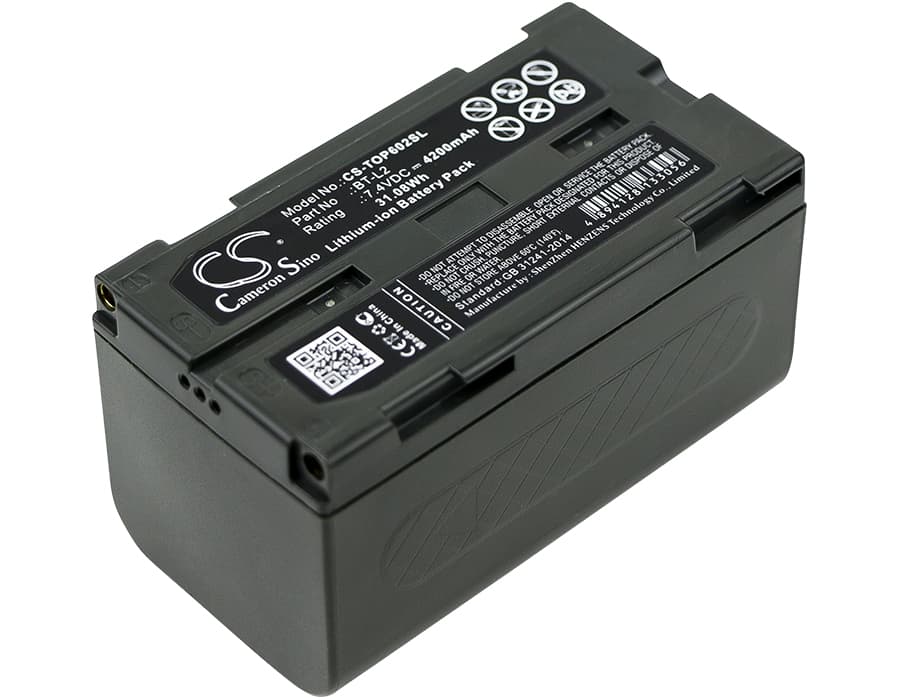

The BT-L2 is a 7.4V 4200mAh lithium-ion battery for the Topcon ES Total Station series, including the ES-602, ES-602G, and ES-600G. It slots into the battery compartment of these instruments and powers the theodolite, EDM, and display systems during fieldwork. Capacity figure is sourced from the product data at 31.08Wh.
- ES-600G, ES-602, and ES-602G compatibility: These models share the same 7.4V battery rail, BT-L2 form factor, and BMS handshake protocol. The connector and cell group configuration are identical across this ES platform, so one part number covers all listed variants without modification.
- Bench tested on actual hardware: We ran this pack through the ES instrument's full startup sequence, including EDM initialisation and angle encoder power-up. The BMS handled the inrush current at prism lock-on without tripping, and cell voltage held steady across sustained distance measurement cycles.
- Post-install calibration step: After fitting this battery, run a full calibration cycle through the instrument's adjustment menu before heading to site. The ES series maps battery state during calibration — skipping this step causes the low-battery warning to trigger early on the first measurement session, even with a fully charged pack.
BMS lockout on the ES Total Station after the pack sat unused for months
Li-ion cells self-discharge slowly in storage. If the BT-L2 sits in the instrument or loose in a case for several months, cell voltage can drop below the BMS's recovery threshold — typically around 2.5V per cell. At that point, the BMS enters a protection lockout and the charger shows no activity or a fault indicator. To recover the pack, place it on the OEM charger and leave it connected for up to 90 minutes without interruption; the charger applies a low trickle current to nudge the cells back above the 2.5V threshold before switching to standard charge mode.
ES Total Station shuts down mid-measurement with the battery indicator still showing charge
This happens when the voltage indicator hasn't recalibrated to the new pack's discharge curve. The ES instrument reads voltage thresholds set during previous cycles, and a fresh cell with a different curve can hit the instrument's cutoff trigger while still carrying usable charge. Run two full charge-discharge cycles through normal field use, then check whether the shutdown point shifts. After two cycles, the threshold recalibrates and the instrument reads remaining capacity accurately — if shutdown persists below 7.0V under load, check the battery contacts for oxidation.
