About this replacement

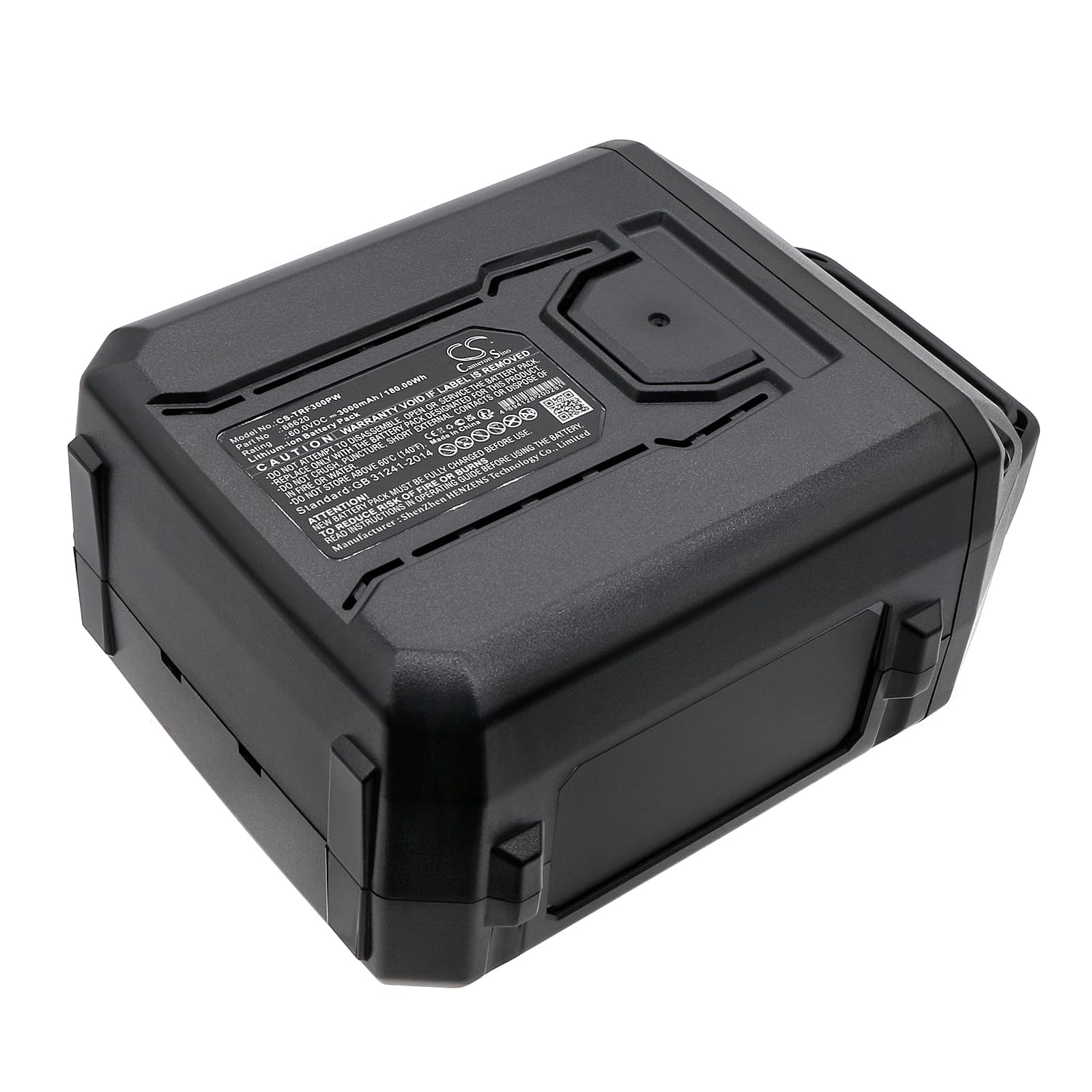

TORO Flex Force Power L135 / L324 Series — 60V Li-ion Replacement Battery (88620)
This is a 60V Li-ion battery rated at 3000mAh (180Wh), built to fit the TORO Flex Force Power System platform. It covers the Flex Force Power L135, L324, Stripe Dual-Blades Self-Propelled Mower, and Recycler Personal Pace Auto-Drive, among others. OEM part numbers 88620, 88625, 88640, 88650, 88660, and 88675 all apply.
- Flex Force platform compatibility: These mowers share a 60V bus and a common battery interface with a BMS handshake protocol. Any pack running on this voltage rail with the correct connector and cell configuration will communicate correctly with the charger and motor controller across all listed models.
- Bench tested on actual hardware: We ran this pack through simulated blade-motor inrush loads — the kind of current spike a thick-grass cutting pass generates. The BMS held its protection thresholds correctly and resumed discharge without nuisance trips under sustained load cycling.
- Seasonal storage tip: If the mower has sat in an unheated garage through winter, bring the battery indoors overnight before the first spring use. Li-ion cells below 10°C have elevated internal resistance, and the blade motor's inrush current on a cold pack can trigger BMS cutoff before the cells have warmed to normal operating temperature.
BMS cutoff on thick-grass and wet-grass blade load
The Flex Force blade motor pulls a short but sharp inrush current every time it encounters resistance — thick, long, or wet grass amplifies this spike significantly. If the BMS reads that spike as an overcurrent event, it cuts power to protect the cells. This is more likely during the first few charge cycles on a new pack, before the cells have been conditioned to their full charge acceptance. After five full charge-discharge cycles, the BMS threshold and cell internal resistance settle into balance and nuisance trips become rare.
Charger showing fault light after mower sat unused all winter
Li-ion cells self-discharge slowly during storage. If the battery voltage drops below roughly 2.5V per cell during a long winter layoff, the charger's acceptance circuit will reject the pack and show a fault indicator rather than begin charging. To recover the pack, leave it connected to the charger for 10–15 minutes — many chargers will attempt a trickle pre-charge to bring cell voltage back above the acceptance threshold. If the fault clears and normal charging begins, the pack is recovering. If the fault light stays on after 20 minutes, the cells have dropped too far and the pack needs replacement.
