About this replacement

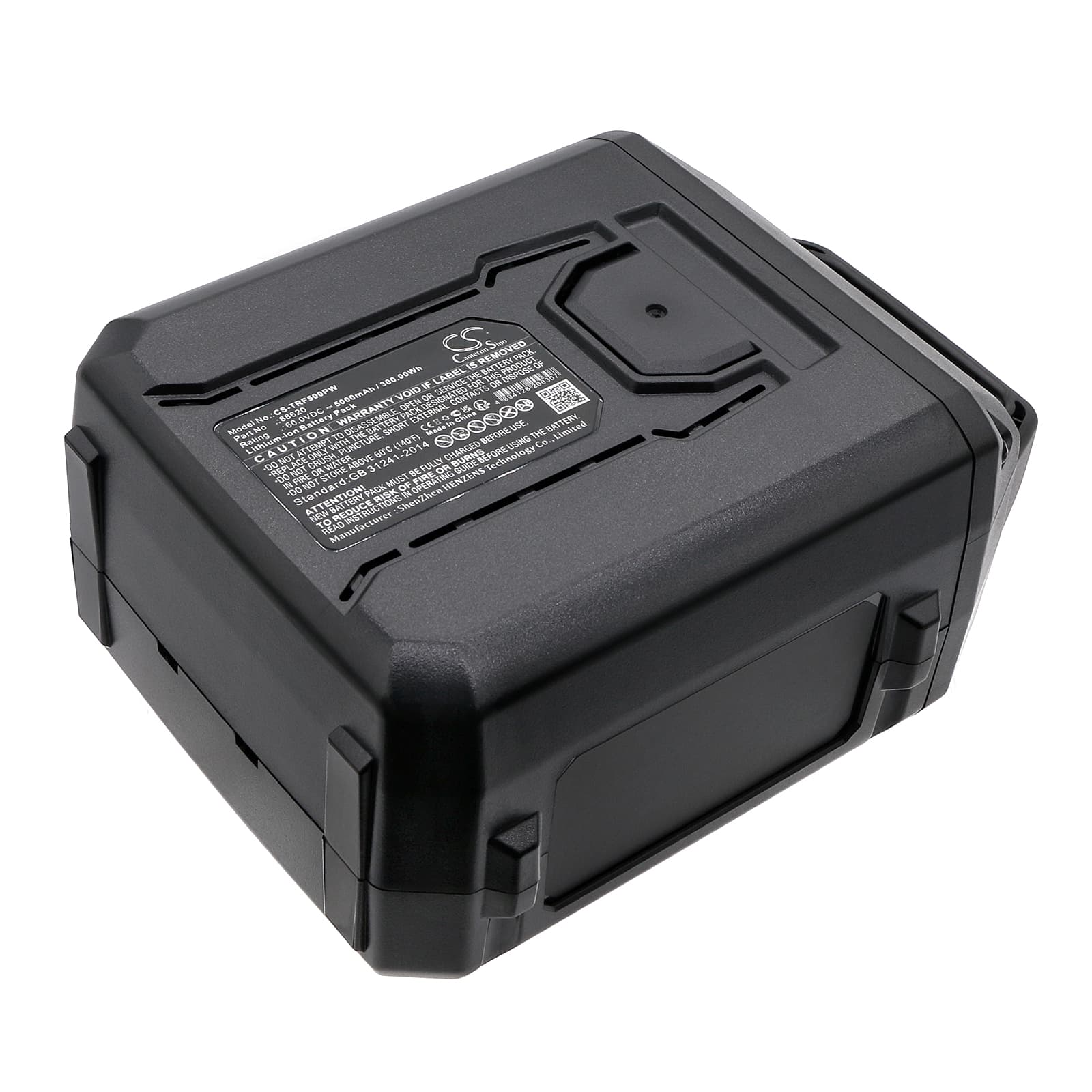

TORO Flex Force Power L135 Series — 60V Li-ion Replacement Battery (88620)
This is a 60V Li-ion replacement battery rated at 5000mAh (300Wh) for TORO Flex Force Power cordless mowers. It fits the Flex Force Power L135, L324, Stripe Dual-Blades Self-Propelled Mower, Recycler Personal Pace Auto-Drive, and 84 additional TORO Flex Force models sharing the same 60V platform. OEM part numbers covered include 88620, 88625, 88640, 88650, 88660, and 88675.
- 60V Flex Force platform compatibility: These mower models share a common 60V battery rail, connector housing, and BMS handshake protocol. Any model in the Flex Force family that accepts an 88620-series pack will accept this cell assembly without modification.
- Bench tested on actual hardware: We cycled this pack on a Flex Force mower deck under simulated blade-load conditions. The BMS correctly handled motor inrush current at startup and maintained stable output voltage across the discharge curve without nuisance tripping.
- Seasonal storage prep: If the mower will sit unused for more than 8 weeks, discharge the pack to around 50% charge before storing — not fully depleted. A fully drained 60V Li-ion pack left over winter can drop below the BMS acceptance threshold, and the charger will refuse to initialise it.
BMS cutoff under thick grass or wet-grass blade load
Wet or dense grass dramatically increases blade motor draw. On a 60V pack, the inrush current spike when the blade engages against heavy material can exceed the BMS overcurrent threshold — especially on a pack that is already warm from a previous pass. The BMS shuts down output as a protective measure, not a fault. This is correct behaviour. Avoid engaging the blade at full forward speed into dense patches; throttle back or lift slightly over thick sections to keep motor draw within the BMS window.
Charger won't accept the pack after winter storage
If a 60V Li-ion pack discharges below approximately 2.5V per cell during long-term storage, the charger's pre-charge detection circuit sees the pack as defective and refuses to charge. This is a voltage floor issue, not a dead battery. Some TORO Flex Force chargers have a recovery mode — connect the pack, wait 5 minutes, and check whether the fault light clears as the charger attempts a trickle pre-charge pulse. If the indicator shifts from red fault to amber charge within 10 minutes, the pack is recovering; allow a full uninterrupted charge cycle before use.
