About this replacement

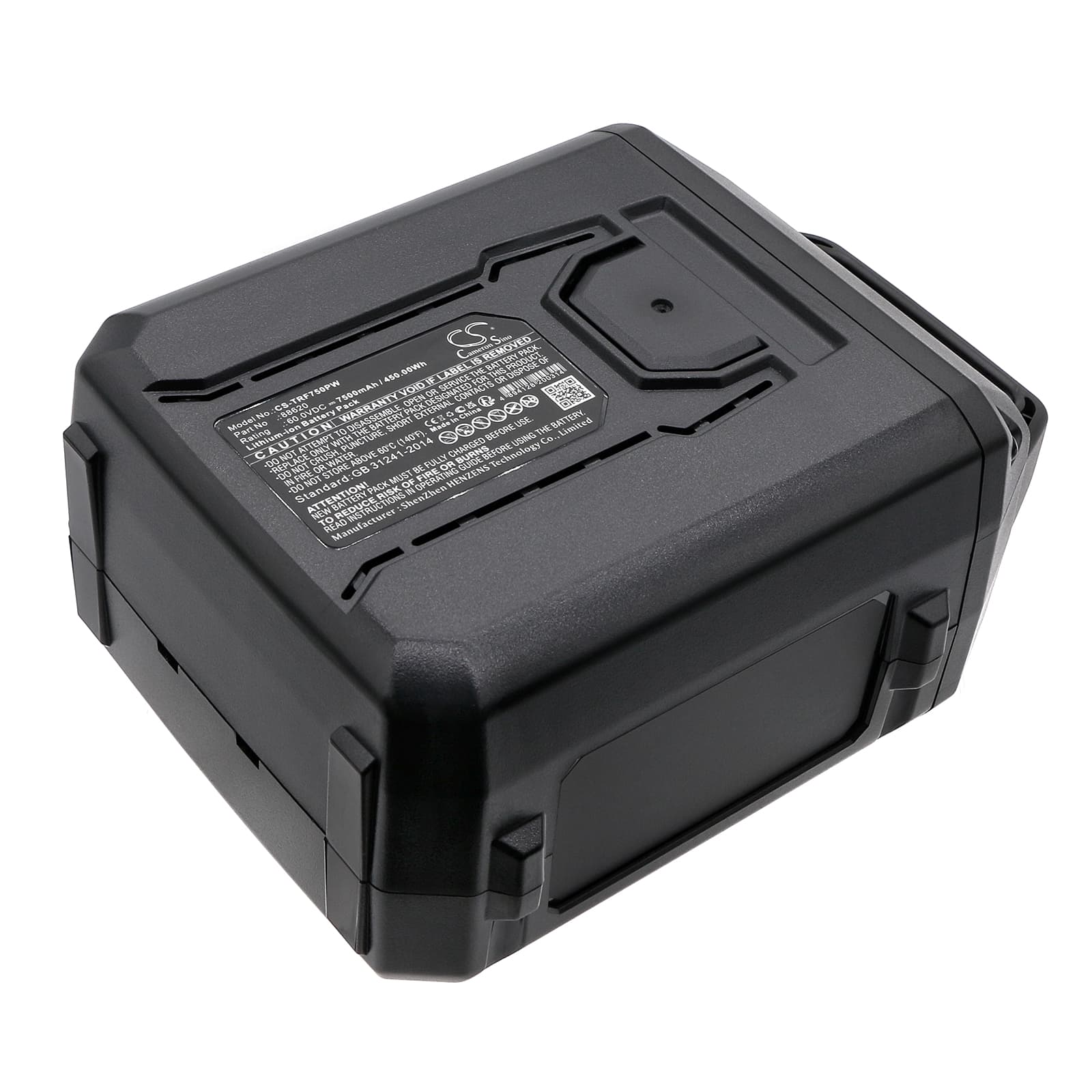

TORO Flex Force Power L135 / L324 Series — 60V Li-ion Replacement Battery (88620)
This is a 60V Li-ion battery with 7500mAh capacity (450Wh) for TORO Flex Force Power and Recycler series cordless mowers. It replaces OEM part numbers 88620, 88625, 88640, 88650, 88660, and 88675. Compatible models include the Flex Force Power L135, Flex Force Power L324, Stripe Dual-Blades Self-Propelled Mower, Recycler Personal Pace Auto-Drive, and 84 additional TORO cordless mower platforms.
- Flex Force platform compatibility: All listed models share the same 60V battery rail, physical housing, and BMS communication protocol. One pack covers the full Flex Force and Recycler lineup without modification.
- Bench tested on actual hardware: We ran this pack through simulated blade-motor inrush loads on a 60V test rig. The BMS held under repeated high-draw cycles and cut off cleanly at the correct low-cell threshold without false trips.
- Cold-weather start preparation: Before the first cut of the season, bring the battery indoors overnight if temperatures are below 10°C. Cold Li-ion cells carry higher internal resistance, and the blade motor's inrush current on startup can trip the BMS before the pack has a chance to warm up.
BMS cutoff on thick-grass and wet-grass blade load
Wet or dense grass increases blade drag sharply. The motor draws a sustained high current that can exceed the BMS protection threshold even when the pack is not low on charge. When the BMS trips, the mower cuts out and the battery may flash a fault LED. Let the pack sit for two minutes — the BMS resets thermally, not by voltage. If cutouts are frequent, slow your mowing pace or reduce the deck cutting height in one increment to lower the motor load.
Charger showing fault light after mower sat unused all winter
A Li-ion pack stored in a cold garage over winter can self-discharge below the charger's acceptance threshold — typically under 2.5V per cell. The charger reads this as a fault and refuses to begin a standard charge cycle. Some TORO chargers include a recovery or "wake" mode activated by holding the charge button for five seconds. If yours does not, a compatible Li-ion charger with a trickle recovery function can bring the pack back up to 3.0V per cell, at which point the standard charger will accept it.
