About this replacement

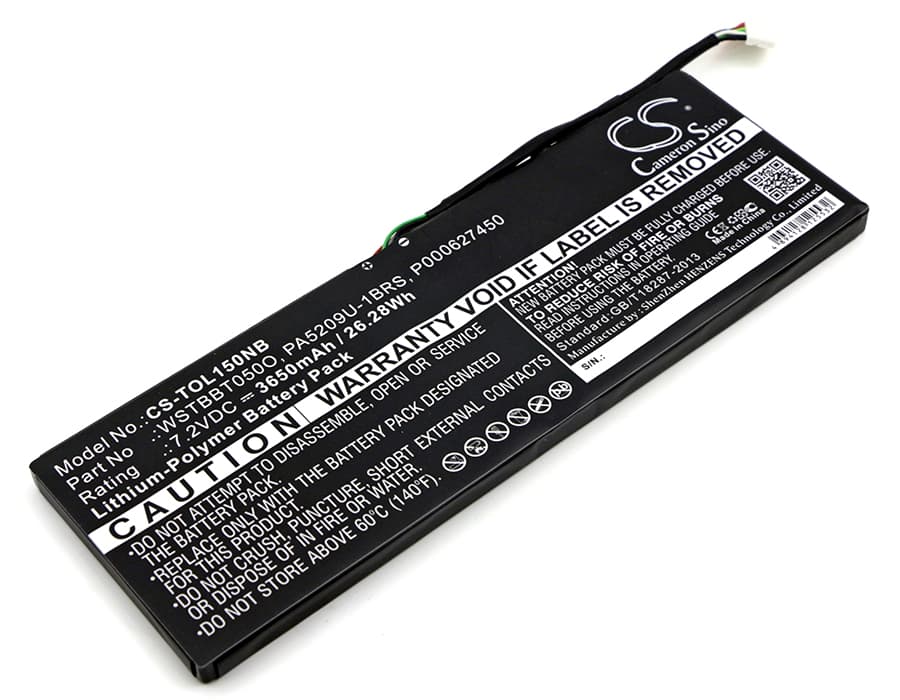

Toshiba Satellite L10T / L10W Series — 7.2V Li-Polymer Replacement Battery (PA5209U-1BRS)
This 7.2V 3650mAh Li-Polymer battery replaces the PA5209U-1BRS cell in the Toshiba Satellite L10T and L10W family, including the L10W-B and L10W-b1200. It slots into the same bay, connects through the same five-pin harness, and communicates with the same BIOS charge controller. Capacity is 26.28Wh — matched to the original specification.
- L10T and L10W platform fit: These models share the same motherboard voltage rail, connector pinout, and BMS handshake protocol. One cell covers the entire platform without wiring modifications or adapters.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on an L10W unit. The BMS initialised correctly on first connection, charge current ramped to the expected 1C rate, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
- Post-install calibration cycle: After fitting, run the laptop on battery until it shuts down at hibernate-cutoff — do not plug in early. Then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
Why the Satellite L10T BIOS flags a new battery as poor health
The Satellite L10 series stores battery health data in EEPROM on the old cell. When you fit a new cell, the BIOS reads a blank or mismatched EEPROM and flags the battery as degraded or unknown — even though the cell is fresh. This is a data mismatch, not a hardware fault. Running one full discharge-to-hibernate then a complete uninterrupted charge gives the BIOS enough cycle data to overwrite that stale flag. After two or three full cycles, the health readout stabilises.
Laptop shuts down at 20–30% after the battery swap
This is a voltage cliff — the cell voltage drops faster than the fuel gauge IC predicted under combined CPU and display load. The fuel gauge IC calibrated its discharge curve against the old, worn cell, so its model no longer matches the new chemistry. The laptop thinks 20% remains but the cell is already below the protection cutoff. Fix this with two to three full discharge-to-hibernate and full recharge cycles so the fuel gauge IC rebuilds its curve against the new cell. After calibration, the gauge should track accurately down to approximately 3.0V per cell.
