About this replacement

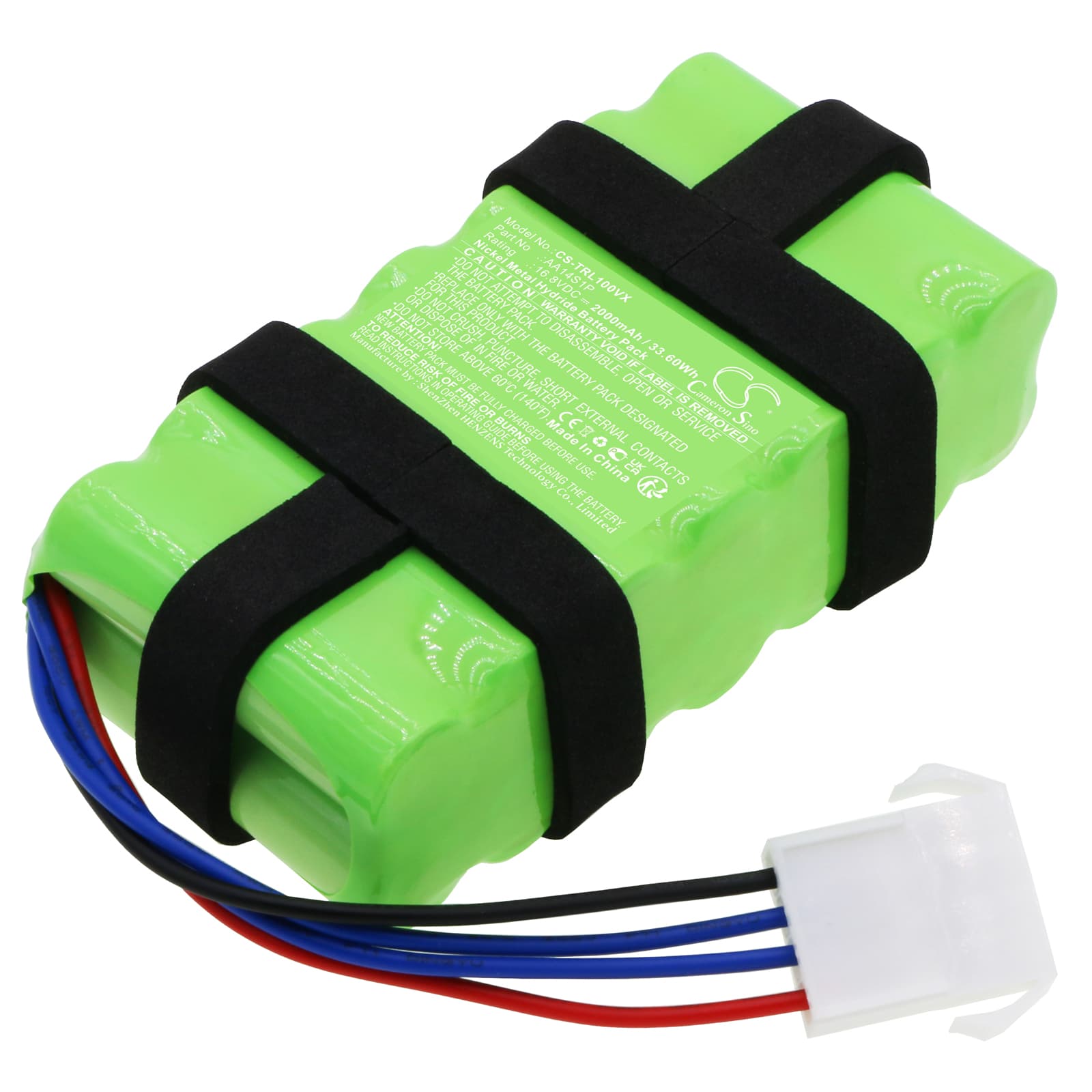

Toshiba VC-WL100 Series — 16.8V Ni-MH Replacement Battery (AA14S1P)
This is a 16.8V, 2000mAh Ni-MH replacement battery for the Toshiba VC-WL100 cordless vacuum cleaner. It fits the VC-WL100, VC-WL100-R, VC-WL100AC, and VC-WL100AC/C variants. It replaces OEM part number AA14S1P and restores motor power to the vacuum's original operating spec.
- VC-WL100 series compatibility: All four variants in this model family share the same 16.8V battery format, connector pinout, and BMS communication protocol. One replacement cell covers every suffix in the range.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the VC-WL100 platform. The BMS handshook correctly, current draw matched motor specs under load, and the protection circuit responded to over-discharge cutoff without faulting.
- Dock charging habit on the VC-WL100: Toshiba's charging dock does not terminate charge automatically once full — it continues to trickle charge the Ni-MH cells. Remove the vacuum from the dock once charging is complete. Leaving it docked continuously accelerates capacity fade on Ni-MH chemistry faster than on lithium-based platforms.
Suction dropping before the battery indicator reaches low on the VC-WL100
Ni-MH cells show voltage sag under sustained motor load before the battery gauge registers critically low. On the VC-WL100, a partially blocked filter forces the motor to draw above its rated current to maintain airflow, which accelerates this sag. The motor then loses enough voltage to drop suction noticeably while the indicator still reads mid-range. Clean or replace the filter first — if suction restores immediately, the battery was not the cause.
Motor cutting out mid-clean and restarting after a few seconds
This is a BMS overcurrent trip, not a flat battery. When suction is restricted — by a blocked filter, a clogged nozzle, or heavy carpet load — the motor draws a sustained current spike that exceeds the protection circuit's threshold. The BMS disconnects, the motor stops, and it recovers once current demand drops. Clear the blockage and check the filter before suspecting the battery. If cutouts continue on an unblocked vacuum with a fully charged cell, verify the charge voltage is sitting at or above 16.8V after a full cycle.
