About this replacement

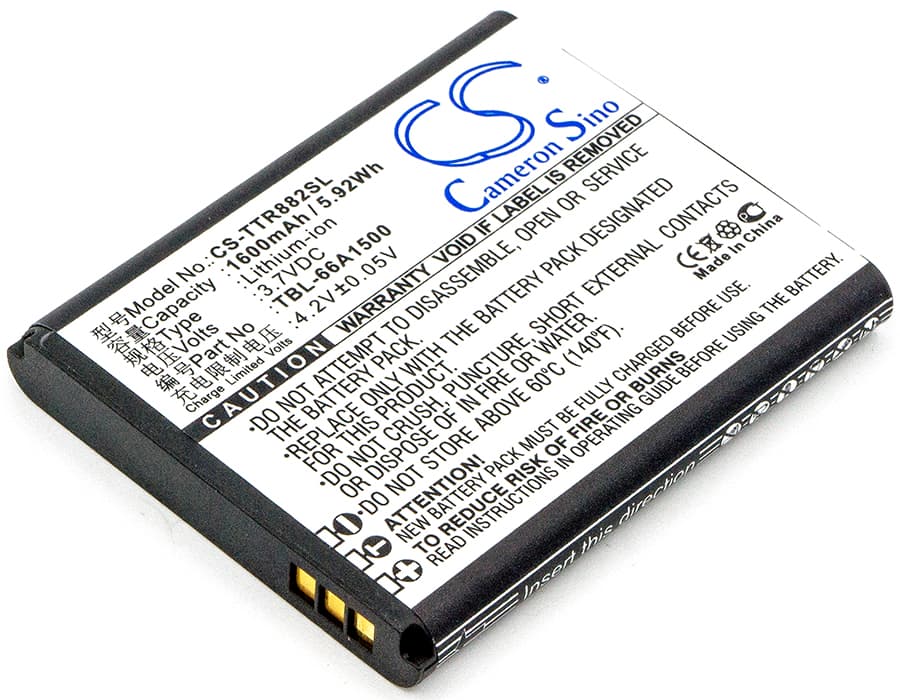

TP-Link TL-T882 — 3.7V Li-ion Replacement Battery (TBL-66A1500)
This is a 3.7V 1600mAh Li-ion battery for the TP-Link TL-T882 portable Wi-Fi hotspot. It replaces OEM part number TBL-66A1500 and fits the TL-T882 unit directly. Swap it in when the original no longer holds enough charge to keep users connected through a full session.
- TL-T882 fit: The TBL-66A1500 is specific to the TL-T882 form factor — the connector orientation, BMS handshake protocol, and physical dimensions (53.60 × 44.20 × 6.50 mm) match the original cell bay. No modification required.
- Bench tested on actual hardware: We ran this cell under combined cellular modem and Wi-Fi radio load at maximum client connections. The BMS maintained stable voltage output and triggered protection correctly at low-cell threshold without a false cutoff under surge draw.
- Ventilation during extended sessions: Keep the TL-T882 on an open surface when running back-to-back sessions. The cellular radio runs at full output power when signal is weak, pushing heat directly into the battery compartment — trapping that heat shortens cell life faster than normal cycling.
Hotspot disconnecting users mid-session on a new battery
The TL-T882 runs two radios simultaneously — the cellular modem and the Wi-Fi access point. At maximum client connections, the combined current draw causes a momentary voltage sag on the 3.7V cell. If the BMS reads that sag as a low-voltage fault, it cuts output and the unit reboots, dropping all connected devices. This is not a battery defect — it is a BMS trip under peak load. Reduce the number of connected clients or move the hotspot closer to the cellular tower to lower modem transmit power and flatten the draw spike.
TL-T882 shows battery icon but refuses to power on after sitting unused
Li-ion cells self-discharge during storage. If the TL-T882 sat unused for several weeks, the cell voltage may have dropped below the minimum boot threshold — typically around 3.0V — at which point the device cannot initialise, even if the battery indicator showed partial charge before storage. Connect the unit to its original charger and leave it for at least 30 minutes before attempting to power on. If the charge LED does not respond at all, the cell has likely dropped below 2.5V and needs a slow recovery charge to re-activate the BMS.
