About this replacement

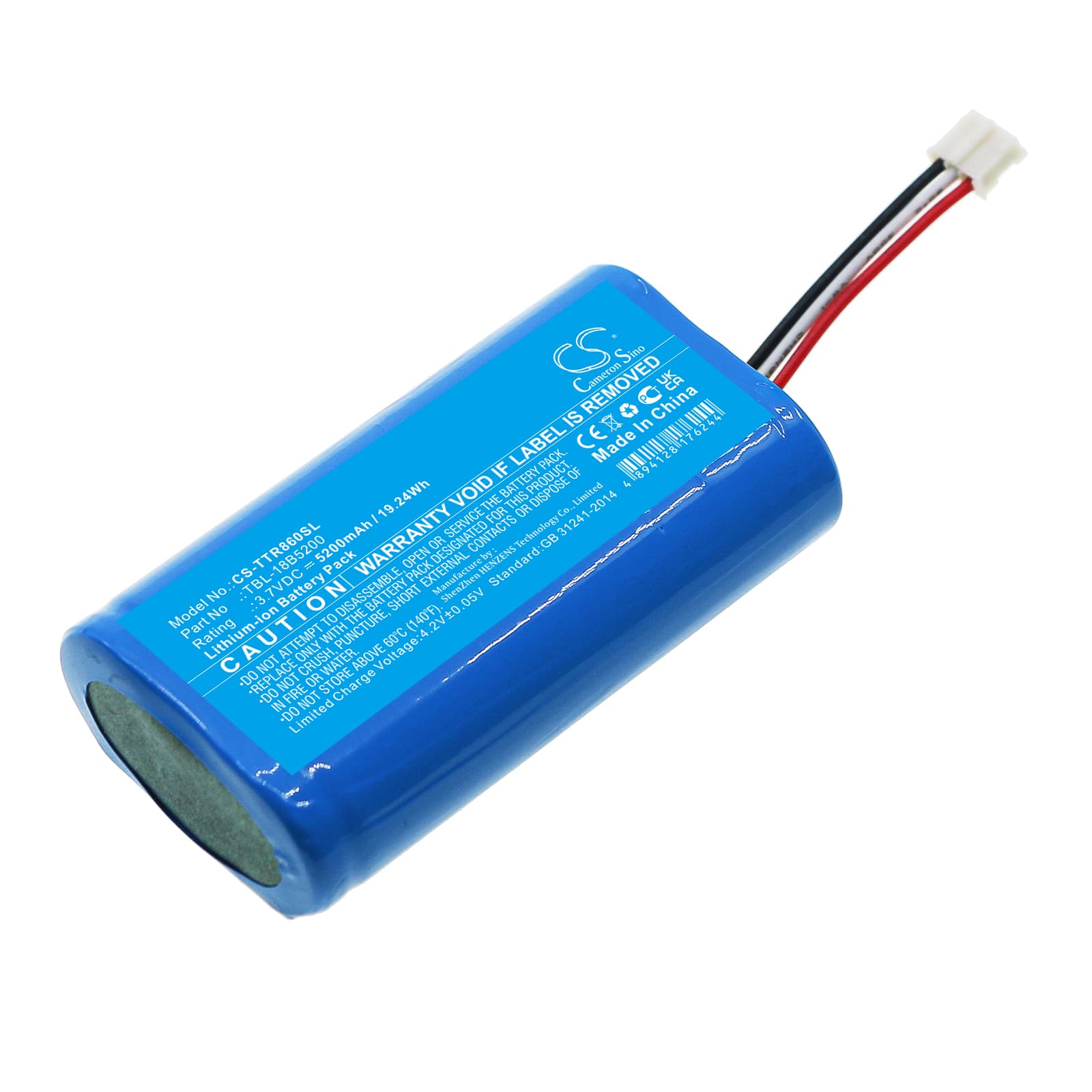

TP-Link TL-TR860 — 3.7V Li-ion Replacement Battery (TBL-18B5200)
This is a 3.7V, 5200mAh Li-ion battery for the TP-Link TL-TR860 mobile hotspot. It replaces OEM part TBL-18B5200 and fits directly into the TL-TR860 enclosure. When the original battery can no longer hold a usable charge, this unit restores the hotspot's ability to run untethered.
- TL-TR860 fitment: The TBL-18B5200 battery is specific to the TL-TR860 platform. The connector orientation, BMS handshake protocol, and physical footprint (66.50 × 36.60 × 19.30mm) match the original cell. A mismatched BMS will trip the hotspot's low-voltage protection and prevent boot.
- Bench tested on actual hardware: We cycled this battery through full charge and discharge on the TL-TR860. The BMS communicated correctly with the device, charge termination triggered at the correct voltage, and the hotspot stayed on through the full draw cycle without thermal shutdown.
- Ventilation during active sessions: Keep the TL-TR860 in an open, ventilated spot during extended use. When connected devices are at range limit, the cellular radio runs at full transmit power. That sustained RF load raises internal temperature and accelerates cell stress — flat on a table in open air is enough.
Why the TL-TR860 drops all connected users mid-session
The TL-TR860 runs two simultaneous high-draw subsystems — the cellular modem and the WiFi radio. When multiple devices are connected and the modem is pushing data, combined current draw can sag the battery voltage below the BMS trip threshold. This causes the hotspot to cut power abruptly rather than gracefully disconnect. A degraded original battery hits this sag point much earlier in a session than a fresh cell at full 5200mAh capacity.
TL-TR860 won't power on after sitting unused for weeks
Li-ion cells self-discharge during storage, and the TL-TR860's standby draw accelerates this. If the cell drops below roughly 2.5V, the BMS locks out the device as a protection measure — pressing the power button does nothing. Connect the hotspot to a charger and leave it for 20–30 minutes before attempting to power on; most BMS circuits require a minimum threshold voltage before they re-enable the discharge path. If the device still won't respond after that charge window, check that the charger output is at least 5V 2A.
