About this replacement

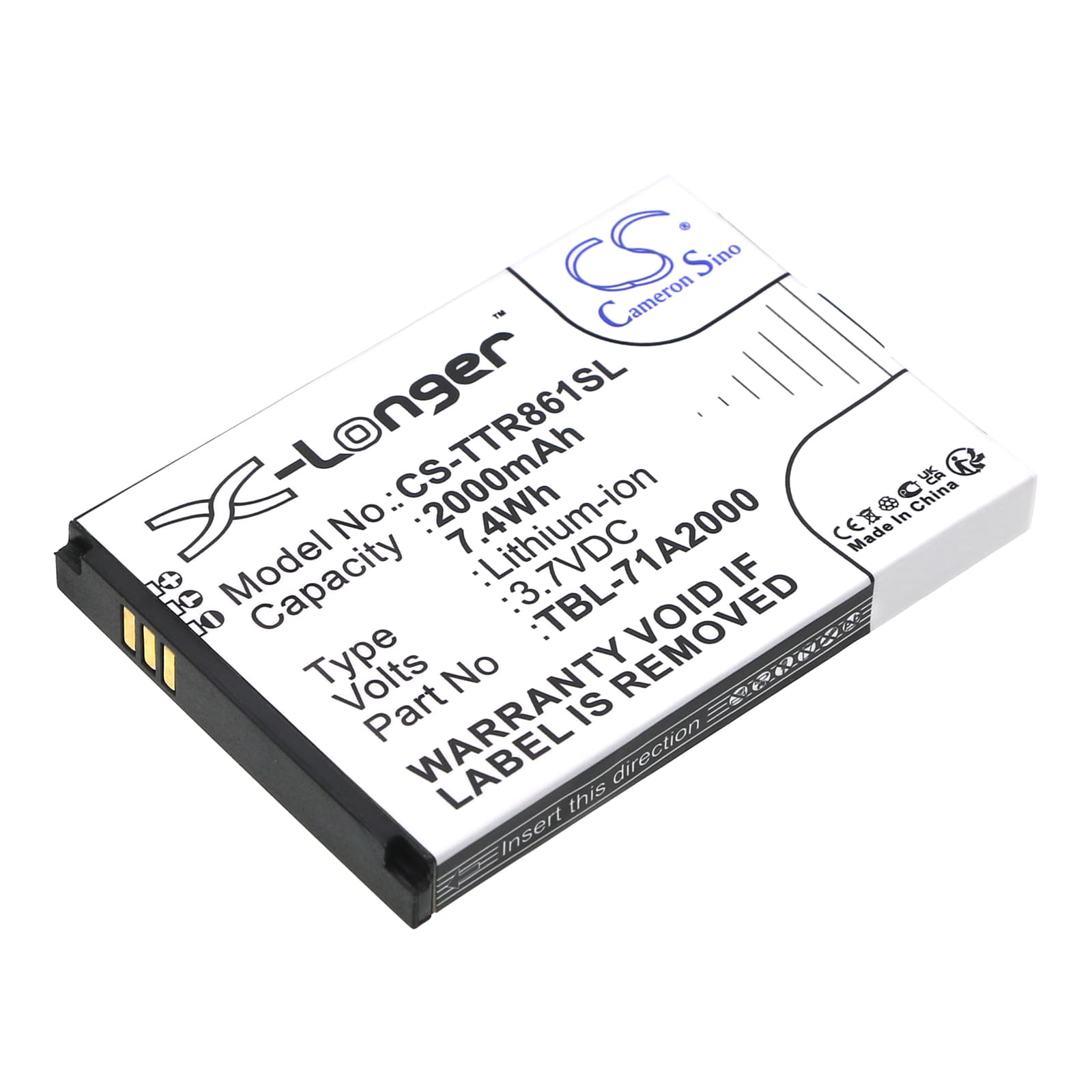

TP-Link TL-TR861 / M5350 Series — 3.7V Li-ion Replacement Battery (TBL-71A2000)
This is a 3.7V 2000mAh Li-ion battery for the TP-Link TL-TR861, TL-TR761, M5350, and TL-M5350 mobile hotspot devices. It replaces OEM part numbers TBL-71A2000 and TBL-71B2000. The cell sits inside the hotspot body and powers both the cellular modem and the 2.4GHz WiFi radio simultaneously.
- TL-TR861 / M5350 platform fit: These models share the same 3.7V single-cell architecture, physical footprint (63.96 × 44.08 × 6.80mm), and BMS handshake protocol. One battery SKU covers all of them — the connector orientation and charge cutoff voltage are identical across the range.
- Bench tested on actual hardware: We ran this battery in a TL-TR861 with five concurrent connected clients. The BMS held charge acceptance cleanly, the device reached full charge without interruption, and the protection circuit tripped correctly at the low-voltage threshold during discharge testing.
- Ventilation during extended sessions: Keep the hotspot on a hard, flat surface — not a cushion or bag pocket. The cellular radio runs at full output power when signal is weak or when multiple devices are active, and that heat has nowhere to go if airflow around the unit is blocked.
Why the TL-TR861 drops all connected clients mid-session
The TL-TR861 runs two radios at once — a cellular modem and a WiFi transmitter — and both pull from the same 3.7V cell. When a degraded battery can no longer sustain voltage under that combined load, the firmware interprets the sag as a low-battery event and shuts the device down to protect the cell. This happens most often when the hotspot is at maximum client count and the cellular signal is marginal, forcing the modem to transmit at peak power. A new cell with full capacity restores the voltage headroom the device needs to stay online under load.
Hotspot stuck on boot screen after sitting unused for weeks
Li-ion cells self-discharge at roughly 2–3% per month even with no load. After extended storage, the TL-TR861's battery can drop below the minimum boot voltage — typically around 3.0V — and the device won't complete startup. Plugging in the charger and leaving it for 20–30 minutes before pressing the power button gives the BMS enough charge to re-initialise. If the battery has been sitting below 2.5V for an extended period, the BMS may have locked out charging entirely — at that point, only a replacement cell resolves it.
