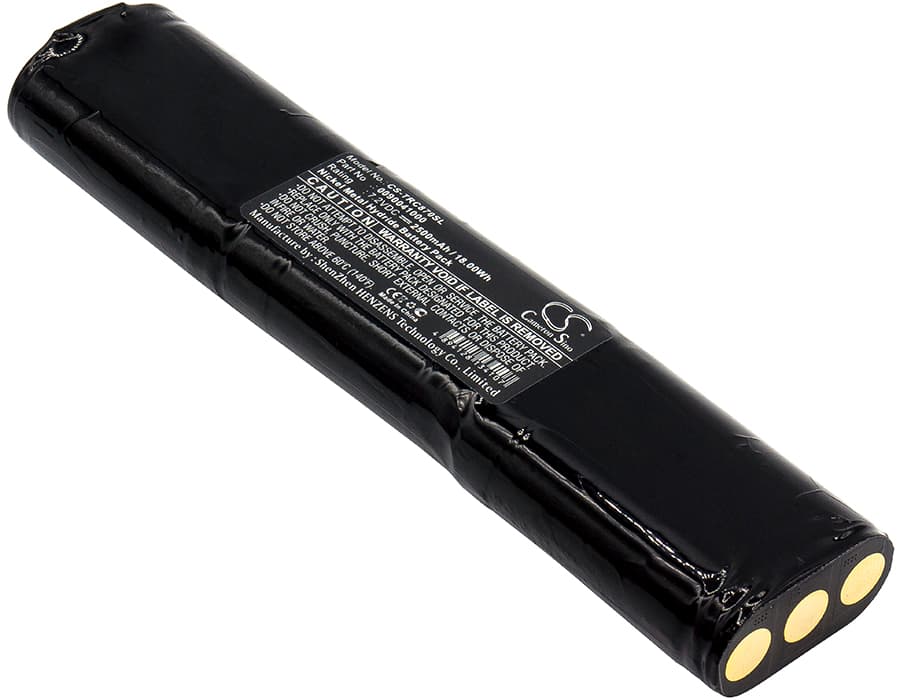

Trilithic 860DSP / 860DSPi Field Analyzer — 7.2V Ni-MH Replacement Battery (0090041000)
This is a 7.2V, 2500mAh Ni-MH replacement battery for the Trilithic 860DSP and 860DSPi field analyzers. It matches the OEM part number 0090041000 and fits the same battery bay without modification. Cable and broadband technicians use this pack to keep their analyzer running through back-to-back signal surveys and network diagnostics on site.
- 860DSP and 860DSPi compatibility: Both models share the same 7.2V battery bay, connector pinout, and BMS handshake protocol. A single pack covers both platforms — no adapters or firmware changes needed.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the 860DSP platform. The BMS accepted the pack without error flags, held voltage steady under sustained RF measurement load, and cut off cleanly at the low-voltage threshold without triggering a hard fault.
- First-use calibration step: After installing the new pack, run a full calibration cycle through the 860DSP instrument menu before your first field deployment. The analyzer maps battery state during that process — skipping it causes the low-battery warning to trigger early on the first measurement session, even with a full charge.
BMS lockout on the 860DSP after the pack sat unused in a carry case for months
Ni-MH cells self-discharge during storage. If the 860DSP sat in a carry case for several months without charging, the pack voltage can drop below the BMS recovery threshold — typically around 6.0V for a 7.2V six-cell pack. Below that point, the BMS enters a protection state and the instrument will not power on or accept a charge via the standard dock. To recover it, use a Ni-MH charger that has a recovery or trickle-charge mode, which applies a low current to bring cell voltage above the threshold before switching to full charge. Once the pack reaches approximately 6.5V, normal charging resumes and the instrument powers on correctly.
860DSP shuts down mid-measurement with no low-battery warning
This happens when the analyzer draws a sustained current during active signal scanning and the cell voltage sags faster than the indicator threshold can track. Ni-MH cells show a relatively flat discharge curve, so the display can read adequate charge right up until voltage collapses under load. A worn or partially degraded pack makes this worse — internal resistance rises, and the voltage drop under measurement load becomes steep enough to trip the undervoltage cutoff instantly. If this is happening on a new pack, check that the calibration cycle was completed after installation, as an uncalibrated pack causes the instrument to misread available capacity from the first session.
