About this replacement

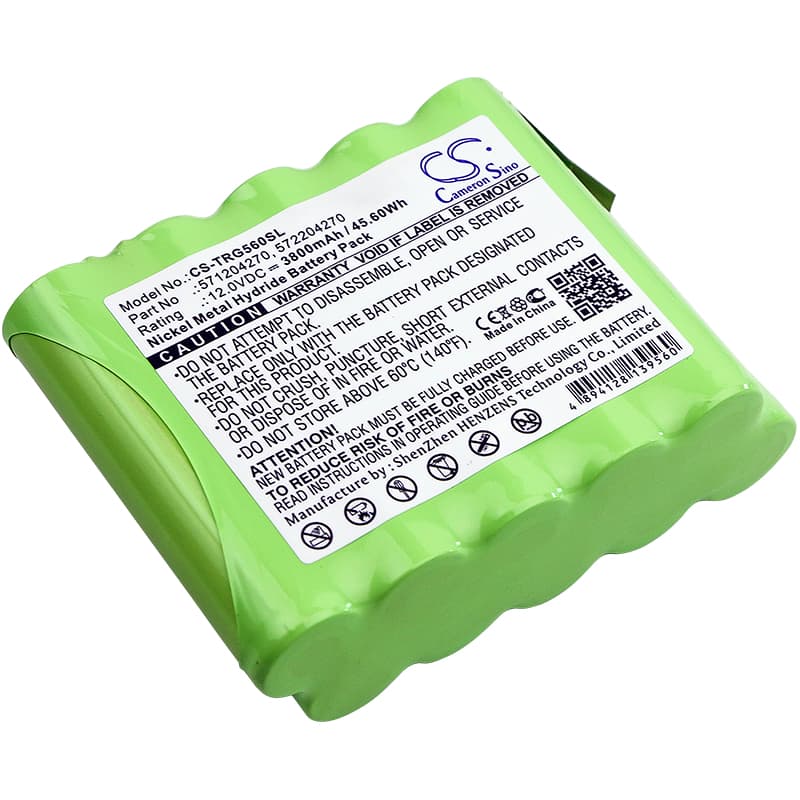

Trimble Geodimeter 5600 / Focus 10 — 12V Ni-MH Replacement Battery (571204270)
This is a 12V 3800mAh Ni-MH replacement battery for the Trimble Geodimeter 5600 and Focus 10 total stations. It slots into the battery compartment and powers the electronic distance measurement, angle sensing, and display systems. Capacity is 3800mAh (45.6Wh), matching the original specification.
- Geodimeter 5600 and Focus 10 fit: Both instruments share the same 12V battery bay, connector pinout, and BMS handshake protocol. One pack covers both platforms without modification.
- Bench tested on actual hardware: We cycled this pack through the Geodimeter 5600 power-on sequence and sustained EDM operation. The BMS held stable output across repeated measurement bursts without triggering a protection cutoff.
- Pre-deployment calibration cycle: After fitting the new pack, run a full calibration sequence through the instrument menu before heading into the field. The Geodimeter maps battery state during that routine — skipping it causes premature low-battery warnings to appear during your first measurement session even when the pack is near full charge.
BMS cutoff when the EDM module powers up on the Geodimeter 5600
The EDM module draws a sharp current spike the moment it initialises for a distance shot. On a degraded or partially discharged original pack, that spike pushes instantaneous draw past the BMS protection threshold. The instrument cuts power mid-sequence to protect the cells, which looks identical to a dead battery. A fresh pack with solid internal resistance handles the spike without tripping — keep the pack above 11.5V before field use to stay clear of the cutoff margin.
Geodimeter reads incorrect battery percentage after installing a new pack
The instrument's voltage-threshold indicator was calibrated against the discharge curve of the old, degraded cells. A new pack sits higher on that same curve at every state of charge, so the displayed percentage reads low — sometimes showing 40% on a pack that is nearly full. Run two full charge-discharge cycles through normal operation and the indicator recalibrates to the new cell behaviour. After the second cycle, percentage readings stabilise and track accurately through the rest of the pack's service life.
