About this replacement

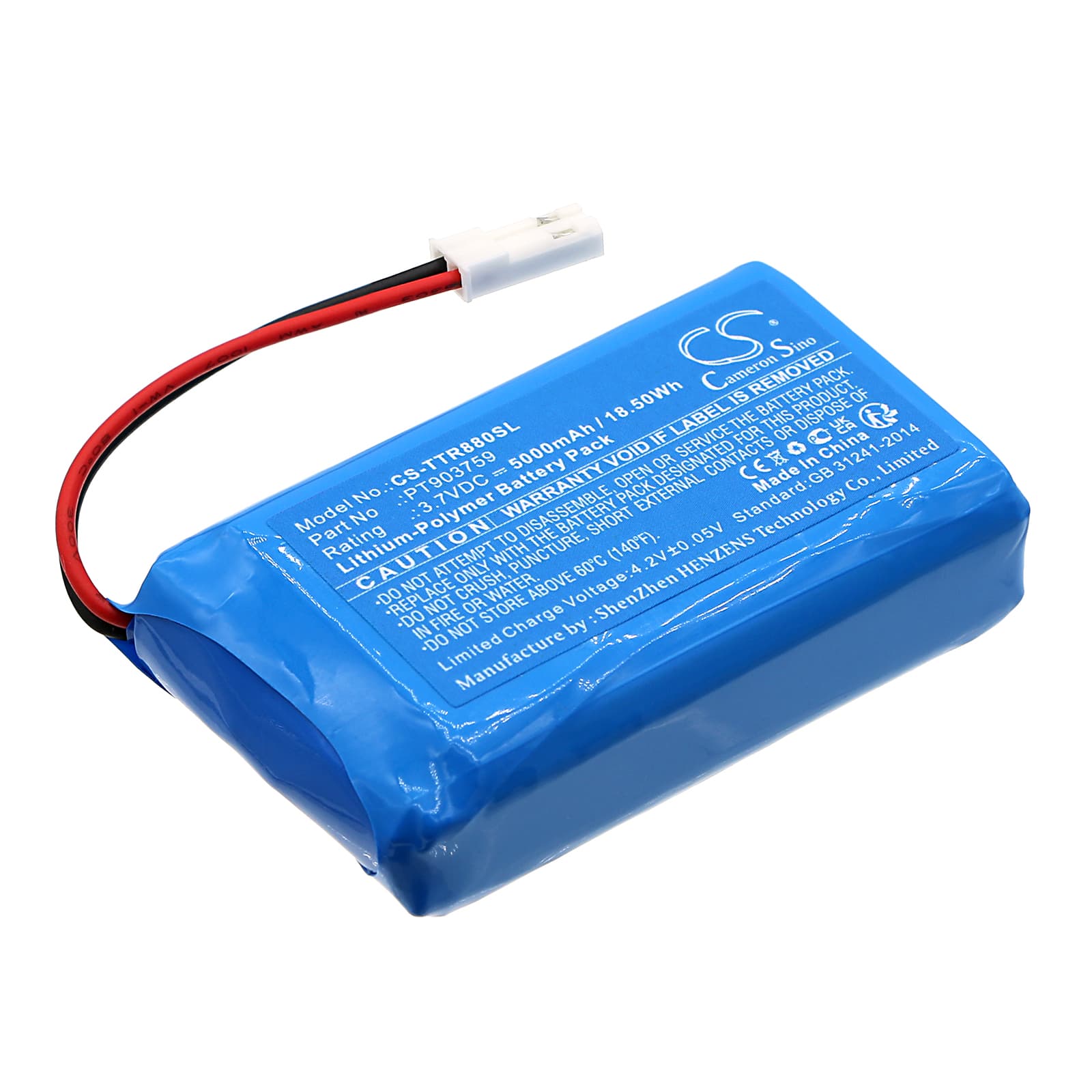

Triplett 8060 CamView Elite Video Test Monitor — 3.7V Li-Polymer Replacement Battery (PT903759)
This 3.7V, 5000mAh Li-Polymer battery replaces the original pack in the Triplett 8060 CamView Elite Video Test Monitor. It fits the monitor's internal bay using the OEM form factor — 62.00 x 35.80 x 18.40mm. Voltage and cell chemistry match the original specification exactly.
- CamView Elite platform fit: The 8060 runs its display, video signal processing, and probe power rail from a single Li-Polymer cell. Any replacement must match the OEM voltage curve precisely — a mismatched cell causes the BMS to flag a fault before the display even initialises.
- Bench tested on actual hardware: We cycled this pack through display-on and active video signal loads. The BMS held stable across probe power-up current spikes and sustained display draw without tripping into protection mode.
- Calibration cycle after installation: After fitting this pack, run a full calibration sequence through the 8060's instrument menu before taking it to site. The monitor maps battery state during calibration — skipping this step causes the low-battery warning to trigger well before the cell is actually depleted.
BMS lockout after the 8060 sat unused in a carry case for months
Li-Polymer cells self-discharge slowly in storage. If the 8060 sat unused long enough, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS enters a locked state and the monitor will not power on even when connected to a charger. A replacement pack arrives at a safe storage voltage, above the lockout threshold, so the monitor will boot immediately on first charge. If your original pack is in lockout, the fix is a replacement — the BMS cannot recover from deep discharge on its own.
8060 shuts down during USB data transfer to PC
USB data transfer adds a second draw on top of active display and video processing — the combined load can push total current above what a degraded cell can sustain at 3.7V. The voltage sags under the combined draw, the BMS reads it as a low-cell condition, and the monitor cuts power mid-transfer. This is a cell capacity problem, not a firmware issue. A fresh 5000mAh pack handles the combined USB and display load without the voltage sag that triggers shutdown. After replacing the pack, confirm the charge is at or above 3.9V before starting a transfer session.
