About this replacement

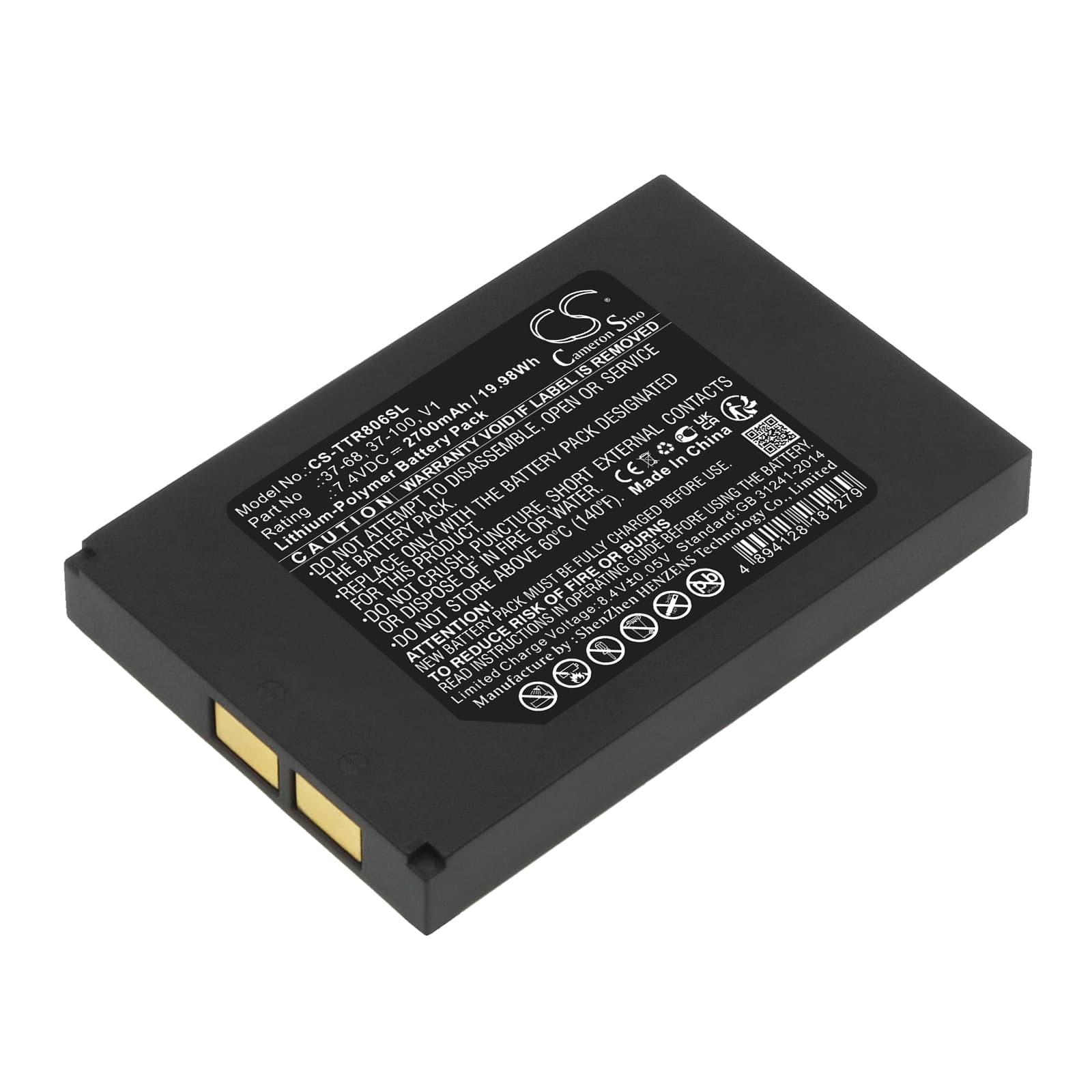

Triplett CamView IP Pro-8W HD CCTV Tester — 7.4V Li-Polymer Replacement Battery (37-68)
This 7.4V 2700mAh Li-Polymer pack replaces the original battery in the Triplett CamView IP Pro-8W HD CCTV Tester (model 8066). It fits the same connector and BMS interface as OEM part numbers 37-68, V1, and 37-100. Capacity is rated at 19.98Wh, matching the original specification.
- CamView IP Pro-8W and 8066 compatibility: Both the Pro-8W and 8066 variants run the same 7.4V power rail and share an identical connector footprint and BMS handshake protocol, which is why a single pack covers both models.
- Bench tested on actual hardware: We cycled this pack under the combined load of the LCD, active PoE detection, and IP camera link-up. The BMS held voltage within spec through probe initialisation spikes and did not trip cutoff during sustained diagnostic sessions.
- Post-install calibration cycle: After fitting this pack, run a full calibration cycle through the CamView instrument menu before your first field deployment. The tester maps battery state during calibration — skipping this causes premature low-battery warnings mid-survey even when the pack is well charged.
BMS cutoff when the CamView initialises a PoE or IP camera link
When the CamView Pro-8W powers up a PoE port or negotiates an IP camera link, the current draw spikes sharply for roughly half a second. An aged or partially discharged original pack can drop below the BMS undervoltage threshold at that exact moment, triggering an immediate cutoff. This replacement pack's cells sustain higher instantaneous discharge without that voltage sag. If the tester still cuts out at probe power-up, charge the pack to full — above 8.3V — before retesting.
Tester powers on but shuts down when transferring data via USB to a laptop
USB data transfer to a PC adds a measurable load on top of the display and active test circuitry. If the pack's cells have degraded, the combined draw pulls terminal voltage low enough for the BMS to trip. This is distinct from a simple low-charge shutdown — it happens at what the indicator shows as 30–50% remaining. With a fresh pack at full charge, the CamView should complete a full transfer without interruption. If it still cuts out, confirm the pack voltage at rest reads at least 7.8V before starting the transfer.
