About this replacement

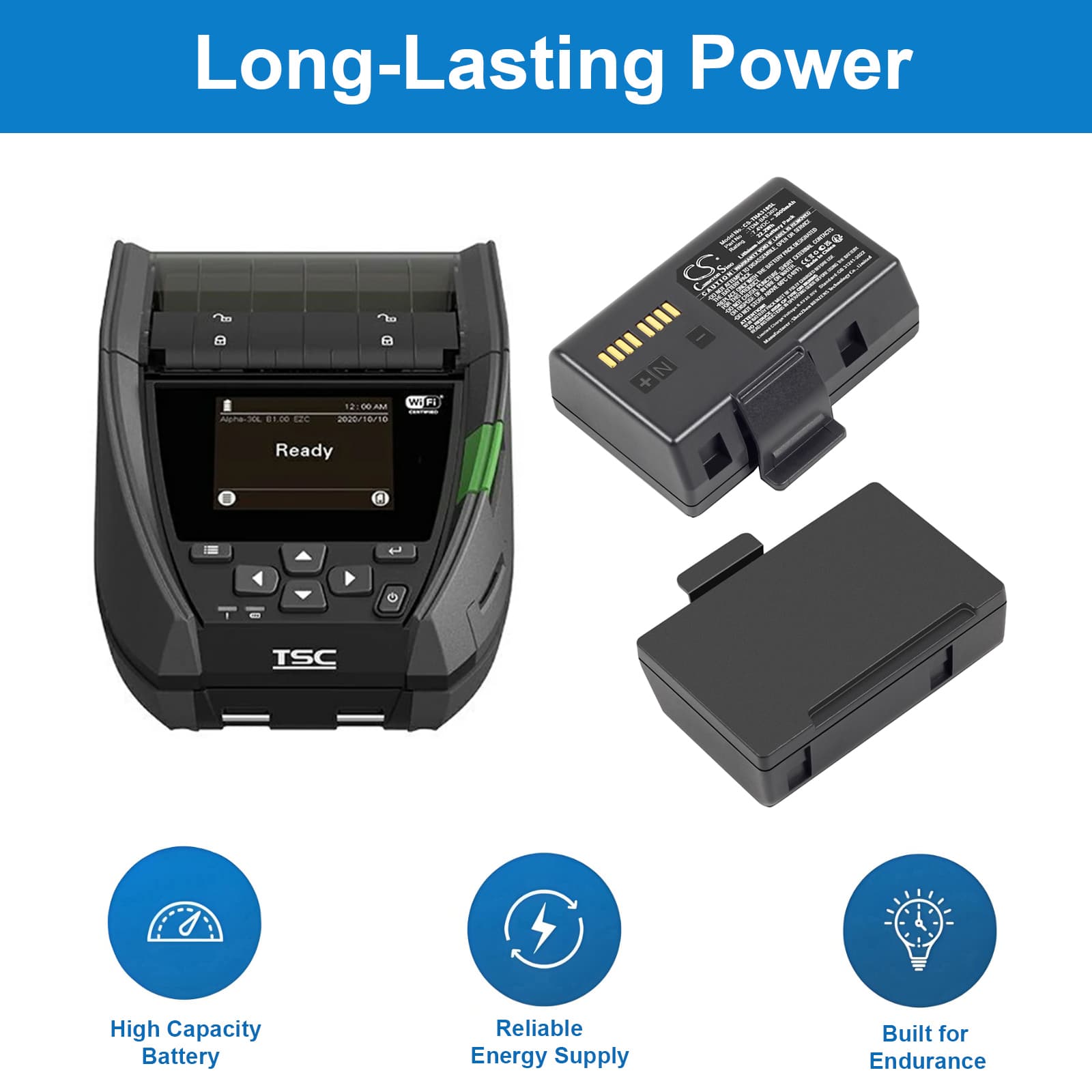

TSC Alpha 3L — 7.4V Li-ion Replacement Battery (P-SB-002 / TDM-BAT30S)
This is a 7.4V, 3000mAh Li-ion replacement battery for the TSC Alpha 3L mobile thermal printer. It fits the Alpha 3L's battery bay directly, using the same connector and BMS communication profile as the original cell. Capacity is 3000mAh (22.2Wh), matching the stock specification.
- Alpha 3L platform fit: The Alpha 3L uses a 7.4V two-cell Li-ion pack with a BMS that monitors cell voltage balance and communicates charge state to the printer's firmware. Any replacement must match both the voltage rail and the BMS handshake — this pack does both.
- Bench tested on actual hardware: We ran this battery through charge cycles on the Alpha 3L bench unit, confirmed BMS recognition, and verified the printer's status indicators read charge correctly. The thermal head and paper feed motor drew current within expected limits across the full discharge range.
- First-use print calibration: After installing, charge fully and print five test labels before deploying. The Alpha 3L's paper feed motor sets its torque profile on initial draw — running a short print sequence lets the BMS establish a current baseline for the new cell pack.
Why the Alpha 3L stops printing after sitting unused for weeks
Li-ion cells self-discharge during storage, and the Alpha 3L's BMS has a low-voltage lockout that activates when the pack drops below roughly 6.0V. At that point, the printer powers on but won't fire the thermal head or drive the paper feed motor — both require a stable voltage above the lockout threshold. The fix is to connect the charger and let the pack recover above the minimum cell voltage before attempting a print job. If the battery won't accept a charge after 30 minutes on the charger, the cells have deep-discharged past recovery and the pack needs replacing.
Print output fading or uneven darkness across the label
The Alpha 3L's thermal print head relies on a stable voltage to maintain consistent heating element temperature. When battery voltage sags mid-print — common on a degraded or partially charged pack — the head temperature drops unevenly, producing lighter bands or inconsistent darkness across the label. This isn't a paper or head fault. Charge the battery fully and reprint. If fading returns before the battery indicator drops significantly, the original pack has lost capacity and no longer holds voltage under load — replace the cell.
