About this replacement

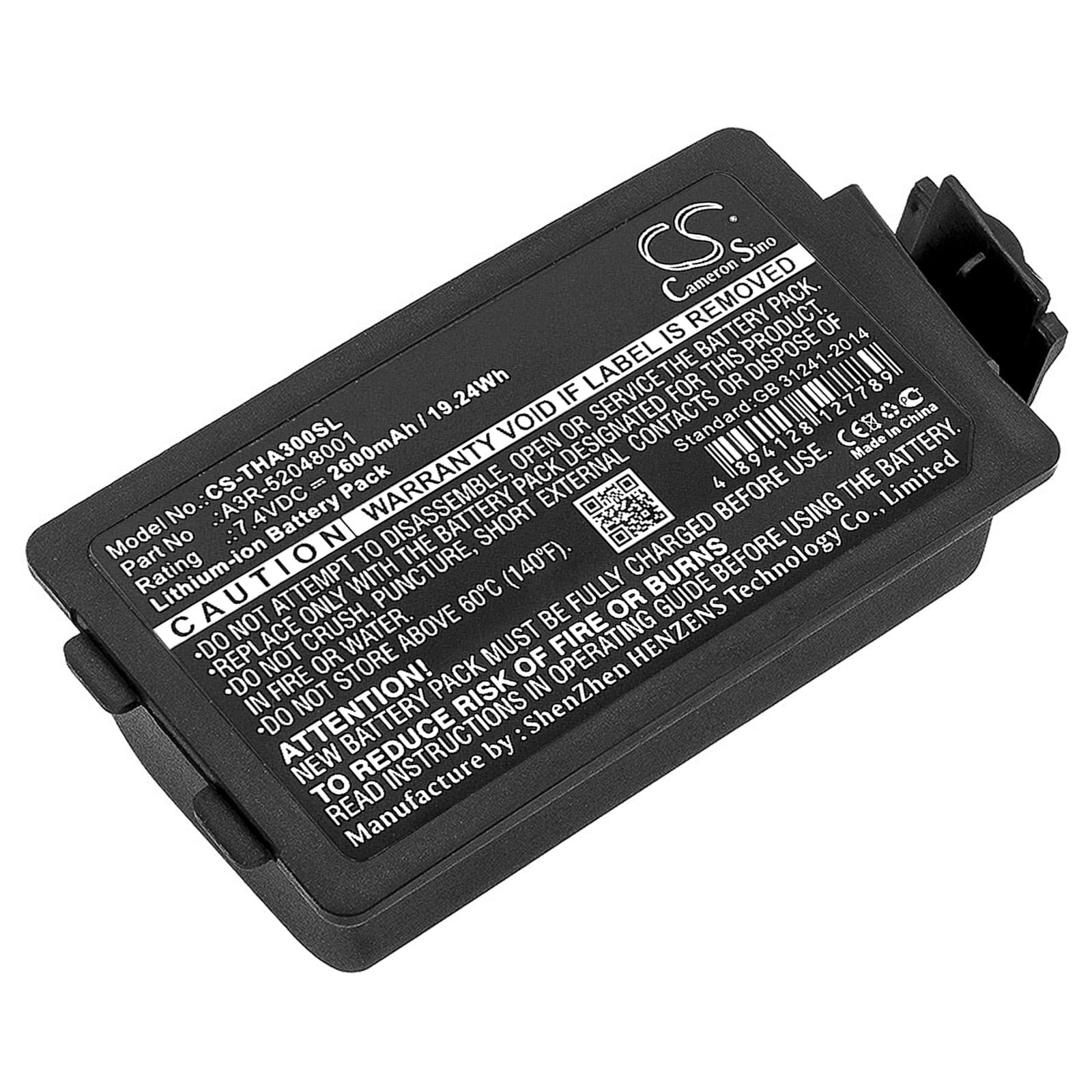

TSC Alpha 3R / Alpha 3RB — 7.4V Li-ion Replacement Battery (A3R-52048001)
This 7.4V 2600mAh Li-ion battery replaces OEM part A3R-52048001 and A3R-52048003 in the TSC Alpha 3R, Alpha 3B, Alpha 3RB, and Alpha 30B mobile thermal printers. These are compact portable label and barcode printers used in logistics, retail, and field operations. When the original cell degrades, print jobs stall, Bluetooth drops, and paper feed pressure weakens — swapping the battery cell resolves all three.
- Alpha 3R / 3B / 3RB / 30B compatibility: All four models run the same 7.4V battery rail with identical connector pinout and BMS handshake protocol. The cell communicates charge state directly to the printer firmware, which controls thermal head power allocation and motor torque thresholds. One part number covers the full range.
- Bench tested on actual hardware: We cycled this cell through full charge-discharge sequences on the Alpha 3R platform. The BMS held steady voltage delivery to the thermal head through extended label runs, and the motor-start surge at paper feed did not trigger low-voltage cutoff.
- First-use print sequence: After installing and charging fully, run five consecutive test label prints before deploying in the field. The printer's paper feed motor uses the first few cycles to confirm the BMS current profile against the new cell — skipping this step can cause false low-battery warnings mid-job.
Why the Alpha 3R loses Bluetooth mid-job at partial charge
The Alpha 3R's wireless radio draws a short current spike every time it transmits a print job packet. At battery levels below roughly 20%, cell voltage sags enough during that spike for the printer firmware to briefly deprioritise the radio stack. The connection drops mid-job even though the battery indicator still shows charge remaining. This is a voltage sag issue, not a wireless pairing fault. Keeping the battery above 30% during active print sessions eliminates it.
Faded or uneven print output on a freshly charged battery
The thermal print head in the Alpha 3R requires stable voltage to maintain consistent head temperature across the full label width. If the replacement cell has a higher internal resistance than the original — common with aged or poorly stored batteries — voltage drops unevenly under load, and some dots fire cooler than others. The result is streaky or faded labels that look like a head-cleaning problem but aren't. Check that the replacement cell holds above 7.0V under print load; if it sags below that, the cell itself is the fault.
