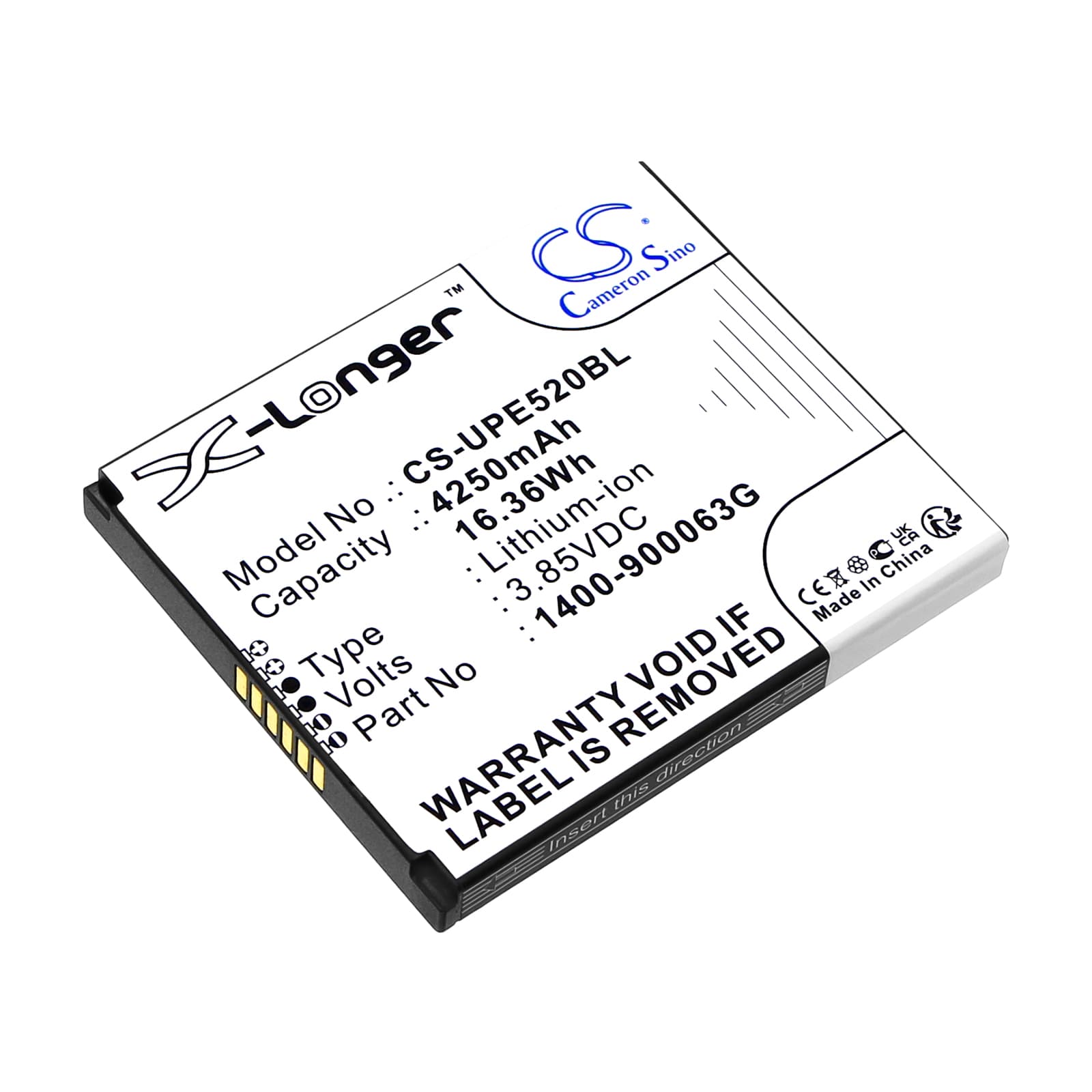

Unitech EA520 — 3.85V Li-ion Replacement Battery (1400-900063G)
This 3.85V, 4250mAh Li-ion cell replaces the OEM pack in the Unitech EA520 handheld barcode scanner. The EA520 is a mobile data terminal used in warehouse picking, retail point-of-sale, and inventory operations. Voltage and physical dimensions match the original pack exactly — 70.00 x 59.00 x 7.20mm.
- EA520 platform fit: The EA520 runs a single-cell 3.85V architecture with a BMS that monitors cell voltage, temperature, and current draw. This replacement pack uses the same cell format and connector pinout, so the device firmware reads state-of-charge correctly without calibration errors.
- Bench tested on actual hardware: We cycled this pack through scan-burst loads and simultaneous wireless polling. The BMS held stable across inrush events from the imager and radio combined, with no false low-voltage cutoffs.
- First-shift preparation: After installing, place the EA520 in its charging cradle for a full cycle before starting a pick-and-pack shift. Scan trigger inrush current peaks when the cell is near minimum voltage — a fully charged pack prevents the BMS tripping on the first burst of the day.
Cradle showing charging error on a new pack
Charging errors on a fresh install are almost always a contact resistance problem, not a battery fault. The EA520 cradle uses spring-pin contacts that collect dust and debris in warehouse environments. Oxidation or grit raises contact resistance enough that the charger circuit sees an incomplete connection and throws an error. Wipe the battery contacts and cradle pins with a dry cloth, reseat the scanner firmly, and the error clears in most cases.
Scanner losing wireless connection during rapid scan bursts
The EA520 draws simultaneously from the imager, processor, and Wi-Fi radio during a rapid scan sequence. If the cell voltage sags under that combined load, the wireless module drops below its minimum operating voltage and disconnects before the battery protection circuit acts. This typically surfaces mid-shift when the pack is partially depleted, not at full charge. Start each shift with a fully charged pack and check that the cell reads above 3.6V at rest if dropouts persist.
